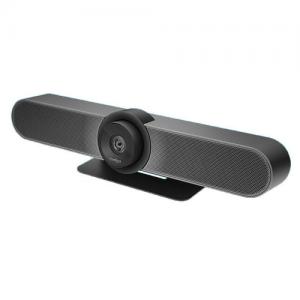

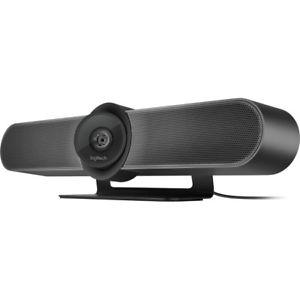

• Part Number : 960-001101
• Camera : 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35”, 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35”, 1.04 kg / 2.3 lbs
• Remote : 83 x 10 x 83 mm, 3.25 x 0.375 x 3.25”, 72 g / 2.5 oz
• Remote control : 5 m USB 2.0 cable
• System Requirements : Windows 7, Windows 8.1, or Windows 10, Mac OS X® 10.10 or higher, 2.4 GHz Intel® Core 2 Duo processor, 2GB RAM or more, USB 2.0 port (USB 3.0 required for 4K video)
• Optional TV Mount : UPC: 097855133250
• Features : Super-wide 120° field of view, RF remote control, 3 camera presets, All-in-one design
• Software Downloads : Pan, tilt and zoom, Pan, tilt and zoom

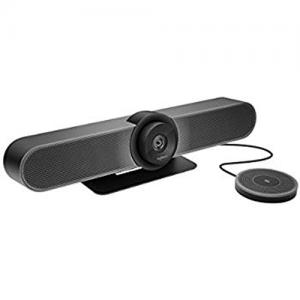

• MeetUp : UPC : 097855130037
• MeetUp + Expansion Mic : UPC: 097855133267

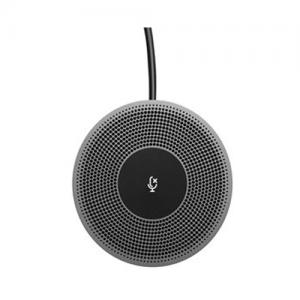

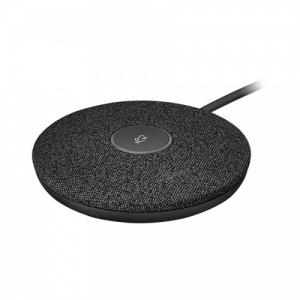

• Optional Expansion Mic : UPC: 097855131171
• Warranty : 2 year limited hardware

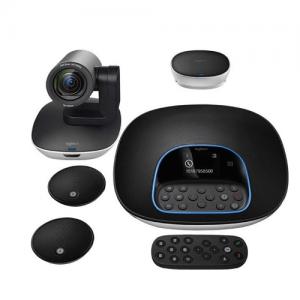

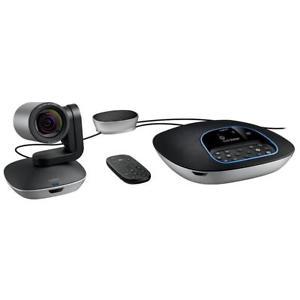

• Part Number : 960-001057
• Camera : 130 x 170 x 138 mm, 5.1 x 7 x 5.4”, 585g /21oz,
• Remote : 50 x 120 x 12 mm, 2 x 5 x 0.5”, 51g / 2oz,
• Speakerphone : 240 x 65 x 240 mm, 9.5 x 2.5 x 9.5”, 1223g / 43oz
• Package : 500 x 152 x 310 mm, 19.75 x 6 x 12.25”, 4.1kgs / 9lbs

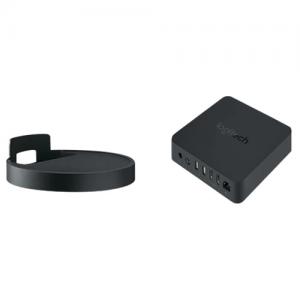

• Hub : 94 x 34 x 74 mm, 3.75 x 1.3 x 2.9”, 83g / 3oz
• Wall/Table Mount : 210 x 120 x 99 mm, 8.27 x 4.72 x 3.90”, 255g/8.99 oz

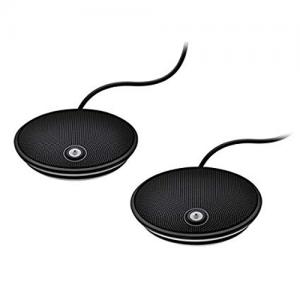

• Expansion Mics : 83 x 83 x 21 mm, 3.3 x 3.3 x 0.83”, 230g / 8oz

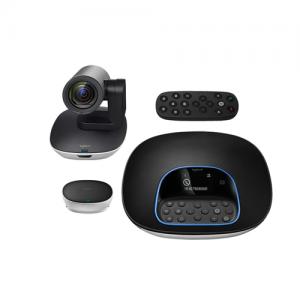

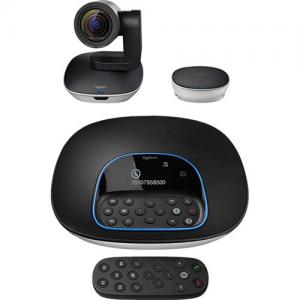

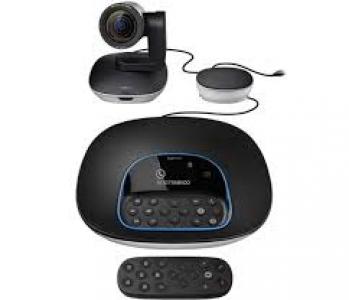

• Logitech GROUP : EAN: 5099206062528
• Remote Control : Dockable remote control, 8.5m/28-foot range
• Camera : 260°pan, 130° tilt, 10x lossless HD zoom, 90° Field of View, Full HD 1080p 30fps
• Speakers (Rx) : Frequency response: 120Hz – 14KHz, Sensitivity: 83dBSPL +/-3dB at 1W/1M, Max output: 91dBSPL, Distortion: <5 % from 200Hz
• Compliance And Tools : Downloadable diagnostic tool, Field upgradeable firmware tool
• Speakerphone : Full-duplex performance, Acoustic echo cancellation, Noise reduction technology, Ultra-wideband audio
• HUB / CABLE : Central mountable hub for connection of all components, AC Power adapter (Length: 3m/9.8-foot)
• Microphones (Tx) : Frequency response: 100Hz – 11KHz, Sensitivity: -28dB +/-3dB , Distortion: <1 % @ 1KHz at 106dB, Four omni-directional microphones supporting 20- foot diameter range
• Warranty : 2 year limited hardware

• Google Chromebook Version : 29.0.1547.70, Platform 4319.79.0 with 2.4 GHz Intel® Core 2 Duo processor, 2GB RAM or more, Hard drive space for recorded videos, USB 2.0 port (USB 3.0 ready)
• Screen mirroring :  Android 4.3 or higher, Windows 8.1 or higher

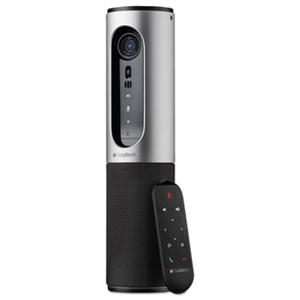

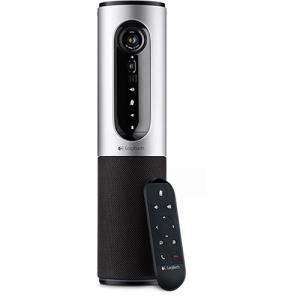

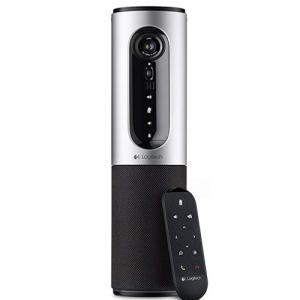

• Part Number : 960-001034
• Camera  : Full HD 1080p video calling (up to 1920 x 1080 pixels) at 30 frames-per-second7, H.264 UVC 1.5 with Scalable Video Coding (SVC), 90-degree field of view with autofocus, 4X digital zoom in full HD
• Speakerphone : Integrated full duplex speakerphone with echo and noise cancellation, 360-degree wideband audio with 12-foot diameter range, Bluetooth® and NFC enabled, Controls for call answer/end, volume, mute
• Remote Control : Dockable remote control for camera/speakerphone functions, 10-foot range
• Microphones (Tx) : Frequency response: 100Hz – 16kHz, Sensitivity: -34dB +/-3dB, Distortion: <1% @ 1KHz at 65dB
• Speakers (Rx) : Frequency response: 140Hz – 16KHz, Sensitivity: 89dBSPL +/-3dB at 1W/0.5M, Max output: 91.5dBSPL at 0.5M, Distortion: <5% from 200Hz
• Wireless Screen Mirroring And Connectivity : HDMI connector for TV output, Screen mirroring2 through WiFi connection to the device
• Primary Pack : EAN Code: 5099206059030,
• Dimensions: 41.9 x 14.5 x 9.1 cm / 16.5 x 5.7 x 3.6 inch, Weight: 1.34 kg /47.26 oz,
• Weight/Dimensions with clip : 75 x 304.2 x 75 mm, 2.95 x 11.98 x 2.95 inch, 766 g / 27.01 oz
• Packaging Dimensions : 91 x 419 x 145 mm, 3.6 x 16.5 x 5.7 inch, 1340 g / 47.26 oz
• Remote : 41 x 128 x 9 mm, 1.6 x 5 x .35 inch, 32 g / 1.13 oz
• System Requirements : Windows 7 or 8.1, Mac OS® X 10.7 or higher
• Warranty : 2-year limited hardware

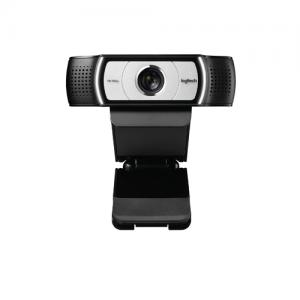

• Part Number : 960-000866
• System Requirements : Windows® 7, 8 or 10, Mac OS® X 10.7 and above
• Features : 1080p HD up to 30 fps, Autofocus and ZEISS® lens certified, Broad application compatibility, Remote control and base button control options, Camera height extender, High-quality webcam sensor and Logitech RightLight™ 2 technology, Omni-directional mic pickup and echo cancellation audio, All-in-one design combines HD video withhigh-quality audio clarity
• Video Specs : 1080p, 30fps, 78 degree FOV, ZEISS® lens certified, H.264 UVC 1.1 / AVC, PTZ
• Audio Specs : Omnidirectional mic pickup, 8ft mic pickup radius, Microphone bandwidth: 200Hz - 8kHz, Bandwidth: 220Hz - 20kHz, Max output level: 80dB SPL @ 1ft (0.30 meters)
• Powered By : USB 2 or AC adapter
• Product Dimensions + Weight : Length 6.07 inches(154.2mm), Width 5.78 inches (146.9mm), Height 13.57 inches (344.7mm), Weight 1 lb, 4.03 ounce(s)(568g)
• Warranty : 2 year limited hardware

• Brand Name:Logitech
• Series:960-001060
• California residents:Click here for Proposition 65 warning
• Item model number:960 001060
• Hardware Platform:pc, laptop, mac
• Item Weight:8.5 pounds
• Product Dimensions:9.5 x 9.5 x 2.5 inches
• Item Dimensions L x W x H:9.5 x 9.5 x 2.5 inches

• Brand name:Logitech
• Item Weight:585 g
• Product Dimensions:13 x 17 x 13.8 cm
• Item model number:960-001057
• Series:Group
• Processor Count:1
• Computer Memory Type:DDR3 SDRAM
• Number of:USB 2.0 Ports    1
• Voltage:1.5 volts

• Brand Name:Logitech
• Series:960-001060
• California residents:Click here for Proposition 65 warning
• Item model number:960-001060
• Hardware Platform pc, laptop, mac
• Item Weight:8.5 pounds
• Product Dimensions:9.5 x 9.5 x 2.5 inches
• Item Dimensions L x W x H:9.5 x 9.5 x 2.5 inches

• Brand Name:Logitech
• Series:960-001060
• California residents:Click here for Proposition 65 warning
• Item model number:960-001060
• Hardware Platform pc, laptop, mac
• Item Weight:8.5 pounds
• Product Dimensions:9.5 x 9.5 x 2.5 inches
• Item Dimensions L x W x H:9.5 x 9.5 x 2.5 inches

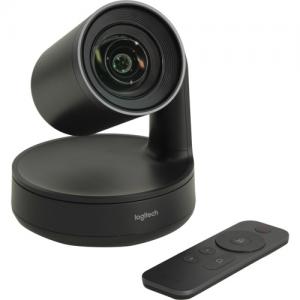

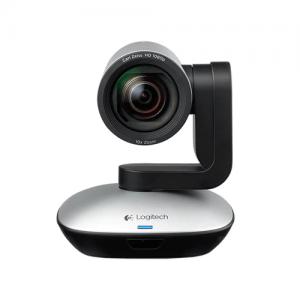

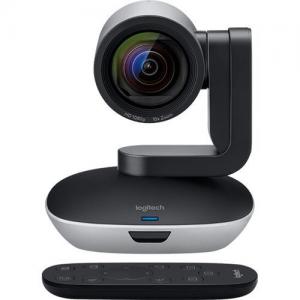

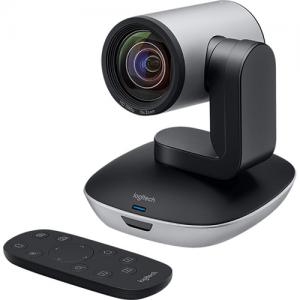

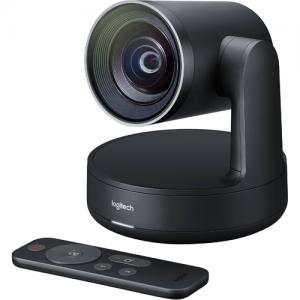

Camera:
Resolution:Full HD 1080p at 30 fps
PTZ:Motorized Pan: 260°
Motorized Tilt: 130°
Motorized Zoom: 10x
Field of View:90°
Focus Type:Auto
Support:H.264 UVC 1.5 with Scalable Video Coding (SVC)
Security:Kensington security slot
LED Indicator:Video mute/unmute
Thread:Standard tripod thread
Connector:USB
Cable:9.8' / 3 m
Remote Control
IR Range:28' / 8.5 m
Power:CR2032 battery (included)
General:
System Requirements:Windows 7, Windows 8.1, or Windows 10
macOS 10.10 or higher
Application:Skype for Business certified Cisco Jabber and WebEx compatible Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
Mount:Dual-purpose bracket works for both wall mounting and tabletop elevation
Dimensions:Camera: 5.8 x 5.2 x 5.1" / 146 x 131 x 130 mm
Remote: 0.4 x 2.0 x 4.7" / 10 x 50 x 120 mm
Weight Camera: 1.3 lb / 580 g
Remote: 1.7 oz / 48 g
Packaging Info:
Package Weight:4.7 lb
Box Dimensions (LxWxH):14.5 x 8.9 x 5.8"

CAMERA:
Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
90° field of view with autofocus
4X digital zoom
Rightlight™ 2 Technology for clarity in various lighting environments, even low light
Digital pan, tilt and zoom from remote control or optional downloadable app
Mechanical tilt wheel
Camera LED for active streaming indication
SPEAKERPHONE:
Integrated full duplex speakerphone with echo and noise cancellation
360° wideband audio
Bluetooth® and NFC enabled
LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
Controls for call answer/end, volume and mute
Microphones (Tx)
Two omni-directional microphones supporting 3.6 m diameter range
Frequency response: 100Hz – 16KHz
Sensitivity: -34dB +/-3dB
Distortion: <1% @ 1KHz at 65dB
Speakers (Rx)
Frequency response: 140Hz – 16KHz
Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
Max output: 91.5dBSPL at 0.5M
Distortion: <5% from 200Hz
REMOTE CONTROL:
Docks on device and functions as a lens cover
IR 3 m range
CR2032 battery (included)
CABLES / POWER:
AC Power adapter with regional plugs
USB cable (1.8 m)
Integrated rechargeable battery
MOUNT:
Designed for tabletop use
Kensington security slot
COMPATIBILITY AND INTEGRATIONS:
Plug-and-play USB connectivity
Works with most any video conferencing application or meetings service
Skype for Business certified
Cisco Jabber® and WebEx compatible
Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
Remote Control:
Height x Width x Depth:
128 mm x 41 mm x 9 mm
Weight: 32 g

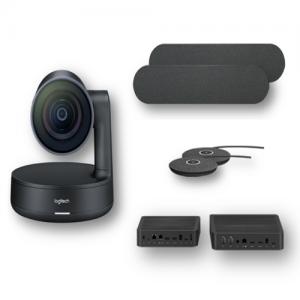

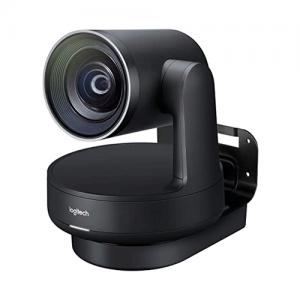

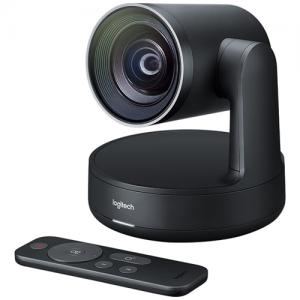

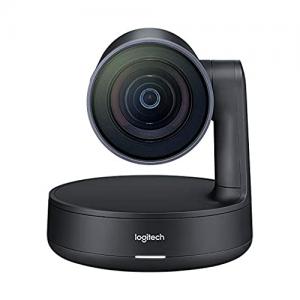

CAMERA:
Ultra-HD imaging system supports:
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
1080p, 720p at 30fps and 60 fps
Smooth motorized pan, tilt and zoom
Pan: ±90°
Tilt: +50° / -90°
15x HD zoom
90° field of view
Autofocus
3 camera presets
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
RIGHTSENSE™ TECHNOLOGIES:
RightLight™ with Wide Dynamic Range (WDR)
RightSight™ automatic camera control2
REMOTE CONTROL:
RF remote control (line of sight not required)
CR2032 battery (included)
CABLES / POWER
AC Power adapter with regional plugs
Power cable (9.8 ft / 3 m)
MOUNT:
Invertible wall mount with power splitter bay and cable management
COMPATIBILITY:
Plug-and-play USB connectivity
Certified for Skype for Business and ready for Teams
Zoom Certified
Cisco Compatible
Compatible with Google Hangouts Meet, BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
USB 3.0 cable
2.2 m
Power Adapter Cable
3 m
SYSTEM REQUIREMENTS:
Operating Systems
Windows® 7, Windows 8.1 or Windows 10
macOS 10.10 or higher
Chrome OS™

• Part Number : 960-001101
• Camera : 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35, 400 x 104 x 85 mm, 15.75 x 4.1 x 3.35, 1.04 kg / 2.3 lbs
• Remote : 83 x 10 x 83 mm, 3.25 x 0.375 x 3.25, 72 g / 2.5 oz
• Remote control : 5 m USB 2.0 cable
• System Requirements : Windows 7, Windows 8.1, or Windows 10, Mac OS X 10.10 or higher, 2.4 GHz Intel Core 2 Duo processor, 2GB RAM or more, USB 2.0 port (USB 3.0 required for 4K video)
• Software Downloads : Pan, tilt and zoom, Pan, tilt and zoom
• MeetUp : UPC : 097855130037
• MeetUp + Expansion Mic : UPC: 097855133267
• Optional Expansion Mic : UPC: 097855131171
• Optional TV Mount : UPC: 097855133250
• Features : Super-wide 120° field of view, RF remote control, 3 camera presets, All-in-one design
• Warranty : 2 year limited hardware

• Brand : Logitech
• Sensor Resolution : 13.00 MP
• Camera:
• Max Digital Zoom : 15x
• Flip / Mirror Support : Mirror (Vertical)
• Lens:
• Optical Zoom Ratio : 15x
• Field of View : Horizontal: 90°
• Focus Control : Autofocus
• Video Output:
• Broadcast System Compatibility : NTSC
• Output Formats:
• USB : 3840 x 2160p at 30 fps
• 2560 x 1440p at 30 fps
• 1920 x 1080p at 30, 60 fps
• 1600 x 900p at 30 fps
• 1280 x 720p at 30, 60 fps
• 640 x 480i at 30 fps
• Control:
• Presets : 3 via IR
• Movement Range:
• Pan : 90°
• Tilt : 50° (-90 to 50°)
• Tally Light : Yes
• Supported Control Protocols : IR
• Power:
• Power Connectors : 1 x Proprietary
• Power Consumption : Power Supply
• General:
• Tripod Mounting Thread : 1 x 1/4"-20 Female
• Security Lock Support : Kensington Lock Slot
• Dimensions :
• 7.2 x 5.9 x 5.9" / 18.29 x 14.99 x 14.99 cm (Camera)
• 0.84 x 3.2 x 2.4" / 2.13 x 8.13 x 6.1 cm (Power Splitter)
• 3.47 x 4.3 x 6.7" / 8.81 x 10.92 x 17.02 cm (Mounting Bracket)
• 7.2' / 2.19 m (USB Cable)
• 9.8' / 2.99 m (Power Cable)
• Package Weight : 7.535 lb
• Box Dimensions (LxWxH) : 11.6 x 10.5 x 7.2"
• Warranty : 2 years

• Brand : Logitech
• Resolution : Full HD 1080p at 30 fps
• PTZ :
• Motorized Pan : 260°
• Motorized Til t : 130°
• Motorized Zoom : 10x
• Field of View : 90°
• Focus Type : Auto
• Support : H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Security : Kensington security slot
• LED Indicator : Video mute/unmute
• Thread : Standard tripod thread
• Connector : USB
• Cable : 9.8' / 3 m
• Remote Control :
• IR Range : 28' / 8.5 m
• Power : CR2032 battery (included)
• System Requirements : Windows 7, Windows 8.1, or Windows 10macOS 10.10 or higher
• Application : Skype for Business certified Cisco Jabber and WebEx compatible Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
• Mount : Dual-purpose bracket works for both wall mounting and tabletop elevation
• Dimensions :
• Camera : 5.8 x 5.2 x 5.1" / 146 x 131 x 130 mm
• Remote : 0.4 x 2.0 x 4.7" / 10 x 50 x 120 mm
• Weight :
• Camera : 1.3 lb / 580 g
• Remote : 1.7 oz / 48 g
• Package Weight : 4.51 lb
• Box Dimensions (LxWxH) : 14.55 x 8.75 x 5.85"
• Warranty : 2 years

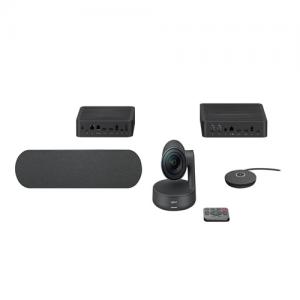

• Brand : Logitech

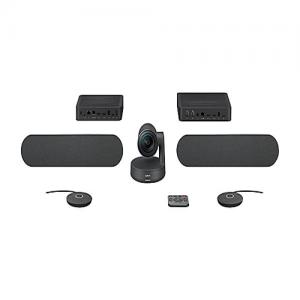

• Rally Camera Power Splitter : 21.4 mm x81 mm x 60.5 mm
• Rally Camera Mounting Bracket : 88 mm x 110 mm x 170 mm
• USB 3.0 cable : 2.2 m
• Power Adapter Cable : 3 m
• Additional Software : RightSight automatic camera control 1
• Pan : ±90°
• Tilt : +50° / -90°
• Field of View : 90°
• REMOTE CONTROL : RF remote control (line of sight not required),CR2032 battery (included)
• CABLES / POWER : AC Power adapter with regional plugs,Power cable (9.8 ft / 3 m)
• RIGHTSENSE™ TECHNOLOGIES : RightLight™ with Wide Dynamic Range (WDR),RightSight™ automatic camera control2
• Warranty : 2 years

• Brand : Logitech
• Rally Camera:
• Height x Width x Depth : 7.19” x 5.88” x 5.88”,182.5 mm x 152 mm x 152 mm
• Rally Camera Mounting Bracket:
• Height x Width x Depth : 3.47” x 4.33” x 6.69”,88 mm x 110 mm x 170 mm
• Rally Camera Power Splitter:
• Height x Width x Depth : 0.84” x 3.19” x 2.38”,21.4 mm x 81 mm x 60.5 mm
• USB 3.0 cable : 7.2 ft (2.2 m)
• Power Adapter Cable : 9.8 ft (3 m)
• Pan : ±90°
• Tilt : +50°/ -90°
• HD zoom : 15x
• field of view : 90°
• RightSense™ Technologies : RightLight with Wide Dynamic Range (WDR),RightSight automatic camera control
• Remote Control : RF remote control (line of sight not required),CR2032 battery (included)
• Power : AC Power adapter with regional plugs,Power cable (9.8 ft / 3 m)
• Connectivity : USB Type-C,MIPI Connector,Expansion Slot
• Warranty : 2 years

• Brand : Logitech

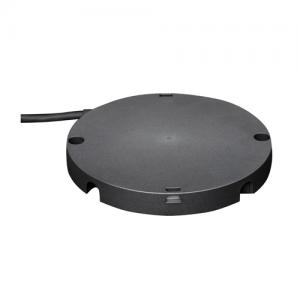

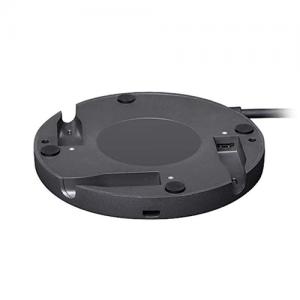

• Product Type : Microphone interface adapter
• Package Content : Mounting hardware
• Width : 10.2 cm
• Depth : 10.2 cm
• Height : 1.6 cm
• Miscellaneous:
• Placing / Mounting    : Under-the-desk
• Compatibility Information:
• Designed For : Logitech Rally Mic Pod, Rally, Rally Plus
• Warranty : 2 years

• Brand : Logitech
• Features : In-wall rated,Stays connected,Compatible,Hides the computer
• Type: USB-C cable
• Features : Plenum, Active Optical Cable (AOC), aramid-reinforced sheath, 3/4" conduit friendly
• Length : 10 m
• Connector : 9 pin USB Type A - male
• Connector (Second End) : 24 pin USB-C - male
• Compliant Standards : USB 2.0 / USB 3.0 / USB 3.1
• Warranty : N/A

• Brand : Logitech
• Type : USB-C cable
• Features : Plenum, Active Optical Cable (AOC), aramid-reinforced sheath, 3/4" conduit friendly
• Length : 25 m
• Connectivity:
• Connector : 9 pin USB Type A - male
• Connector (Second End) : 24 pin USB-C - male
• Miscellaneous:
• Compliant Standards : USB 2.0 / USB 3.0 / USB 3.1, IEC 60332-1-2
• Warranty : 2 years

• Brand : Logitech

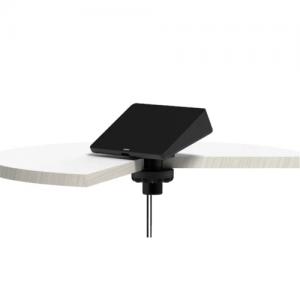

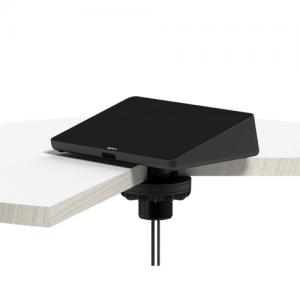

• Product Type : Video conferencing controller mounting kit
• Package Content : Mounting hardware
• Width : 9.6 in
• Depth : 7 in
• Height : 4 in
• Features : 180° rotation, 30° tilt, for 20-50 mm table, 51-89 mm diameter hole
• Warranty : 2 years

• Brand : Logitech
• Product Type : Video conferencing controller mounting kit
• Package Content : Mounting hardware
• Width : 9.6 in
• Depth : 7 in
• Height : 2.4 in
• Features : 180° rotation, for 20-50 mm table, 51-89 mm diameter hole
• Warranty : 2 years

• Brand : Logitech
• Product Type : Video conferencing controller mounting kit
• Package Content : Mounting hardware
• Width : 9.6 in
• Depth : 7 in
• Height : 2.3 in
• Features : 14° tilt
• Warranty : 2 years

• Brand : Logitech

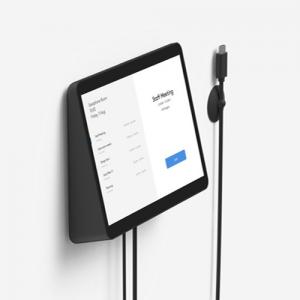

• Product Type : Controller
• Functions : Video conferencing room control
• Connectivity Technology : Wired
• OS Required : Google Chrome OS, Windows 10
• Features : Built-in speaker, anti-theft protection built-in touchscreen display, security slot (Kensington security lock compatible)
• Control Unit:
• Input Type : Touch screen
• Internet of Things (IoT):
• Display : 10.1"
• Display Resolution : 1280 x 800 pixels
• Interfaces : Headphone output HDMI input USB-C 3.1 USB 3.1
• Camera:
• Features : Motion sensor
• Miscellaneous
• Included Accessories : Power adapter, cleaning cloth, 4 screws, USB Type A to USB-C cable
• Nominal Voltage : AC 100 - 240 V
• Compliant Standards : VESA FDMI
• Dimensions & Weight:
• Width : 9.6 in
• Depth : 7 in
• Height : 2.3 in
• Weight : 2.76 lbs
• Warranty : 2 years

• Brand : Logitech

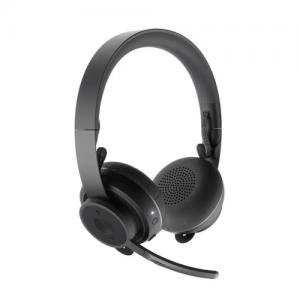

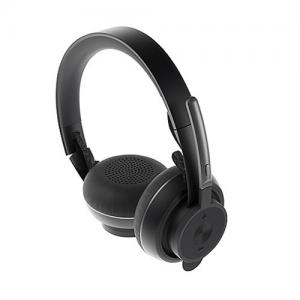

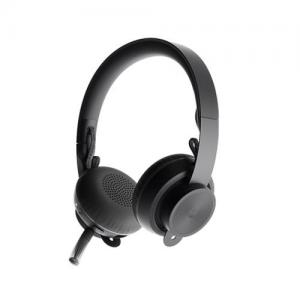

• Product Type : Headset - Bluetooth - wireless
• Width : 6.9 in
• Depth : 2.8 in
• Height : 7 in
• Weight : 6.38 oz
• Earpad Material : Leatherette
• Recommended Use     : Phone, computer
• Max Operating Distance : 98 ft
• Headphones:
• Headphones Form Factor : On-ear
• Connectivity Technology : Wireless
• Wireless Technology : Bluetooth
• Sound Output Mode : Stereo
• Active Noise Canceling : Yes
• Frequency Response : 30 - 13000 Hz
• Microphone:
• Type : Boom
• Microphone Operation Mode : Omni-directional
• Microphones Included : 2
• Frequency Response : 85 - 20000 Hz
• Remote Control:
• Controls : Volume, pair mode
• Connections:
• Connector Type : USB (4 pin USB Type A)
• Miscellaneous:
• Cables Included : USB charge cable - 4.3 ft
• Included Accessories : Travel bag, USB dongle
• Power:
• Battery : Headset battery rechargeable - lithium ion
• Wireless Charging Standards : Qi
• Run Time (Up To) : 15 hour(s)
• Warranty : 1 year

• Brand : Logitech
• Interface Type : SuperSpeed USB 3.0
• Digital Video Capture Resolution : 3840 x 2160
• Audio Input:
• Type : 3 microphones - external
• Frequency Response : 90 - 16000 Hz
• Audio Output:
• Type : Speaker(s)
• Input Device:
• Type : Remote control
• Connectivity Technology : Wired
• Expansion / Connectivity:
• Interfaces : 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x microphone 2 x display / video - HDMI 1 x USB 3.1 - 24 pin USB-C 1 x USB 3.1 - 9 pin
• USB Type A 2 x USB 3.1 - 9 pin USB Type B 2 x audio
• Miscellaneous:
• Cables Included : 1 x USB-C 3.1 cable - 6.6 ft 1 x USB 3.1 Type A to Type B cable - 6.6 ft 2 x audio cable - 9.7 ft 1 x network cable - 16.4 ft 2 x HDMI cable - 6.6 ft 1 x microphone cable - 9.7 ft
• Power:
• Power Device : Power supply
• Dimensions & Weight (Shipping):
• Shipping Width : 8.3 in
• Shipping Depth : 27.2 in
• Shipping Height : 15.7 in
• Shipping Weight : 24.69 lbs
• Warranty : 2 years

• Brand : Logitech
• Speaker volume : 95 dB SPL @1 W, 100 dB SPL @7.5 W, both +/-2 dB at ½ meter
• Distortion : 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
• Speaker sampling rate : 48 kHz
• Available Accessories : Rally Mounting Kit includes two wall-mount brackets for Rally Speaker, plus cable retainers (x2) and mounting brackets for camera and hubs (x2)
• Box Dimensions (LxWxH) : 103 mm x 449 mm x 80 mm
• SYSTEM REQUIREMENTS:
• Logitech Rally system with one speaker
• Maximum speakers per system : 2
• High-performance : 76 mm driver with rare-earth magnet
• Warranty : 2 years

• Brand : Logitech
• Speaker Bracket:
• Height x Width x Depth : 36 mm x 266 mm x 8 mm
• Camera Bracket:
• Height x Width x Depth : 63 mm x 109 mm x 166 mm
• Table Hub Bracket:
• Height x Width x Depth : 12 mm x 164 mm x 115 mm
• Display Hub Bracket:
• Height x Width x Depth : 12 mm x 164 mm x 115 mm
• Cable Retainer:
• Height x Width x Depth : 23 mm x 164 mm x 38 mm
• PACKAGE CONTENTS:
• Speaker Bracket (2)
• Camera Bracket
• Table Hub Bracket
• Display Hub Bracket
• Cable Retainer (2)
• Fasteners Documentation
• Warranty : 2 years

• Brand : Logitech
• Pickup range : 4.5m diameter
• Resolution : 1080p
• Frequency response : 90Hz – 16kHz
• Sensitivity : >-27dB +/-1dB @ 1Pa
• Microphone data rate : 48 kHz
• Recommended # of participants:
• Rally (one Mic Pod) : 10
• Rally Plus (two Mic Pods) : 16
• Additional participants per Mic Pod : 6
• Recommended participants for Rally with 7 Mic Pods : 46
• Dimensions:
• Camera : 182.5 mm x 152 mm x 152 mm
• Speakerphone : 103 mm x 449 mm x 80 mm
• Hub : 40 mm x 206 mm x 179 mm
• Box Dimensions (LxWxH) : 21 mm x 102 mm x 102mm
• Warranty : 2 years

• Brand : Logitech

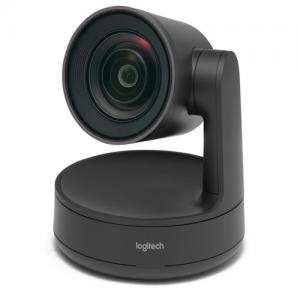

• Sensor Resolution : 13.00 MP
• Max Digital Zoom : 15x
• Flip / Mirror Support : Mirror (Vertical)
• Optical Zoom Ratio : 15x
• Field of View : Horizontal: 90°
• Focus Control : Autofocus
• Broadcast System Compatibility : NTSC
• Output Formats:
• USB : 3840 x 2160p at 30 fps
• 2560 x 1440p at 30 fps
• 1920 x 1080p at 30, 60 fps
• 1600 x 900p at 30 fps
• 1280 x 720p at 30, 60 fps
• 640 x 480i at 30 fps
• Presets : 3 via IR
• Movement Range:
• Pan : 90°
• Tilt : 50° (-90 to 50°)
• Tally Light : Yes
• Supported Control Protocols : IR
• Power Connectors : 1 x Proprietary
• Tripod Mounting Thread : 1 x 1/4"-20 Female
• Security Lock Support : Kensington Lock Slot
• Dimensions:
• 7.2 x 5.9 x 5.9" / 18.29 x 14.99 x 14.99 cm (Camera)
• 0.84 x 3.2 x 2.4" / 2.13 x 8.13 x 6.1 cm (Power Splitter)
• 3.47 x 4.3 x 6.7" / 8.81 x 10.92 x 17.02 cm (Mounting Bracket)
• 7.2' / 2.19 m (USB Cable)
• 9.8' / 2.99 m (Power Cable)
• Package Weight : 7.535 lb
• Box Dimensions (LxWxH) : 11.6 x 10.5 x 7.2"
• Warranty : 2 years


• Brand : Logitech

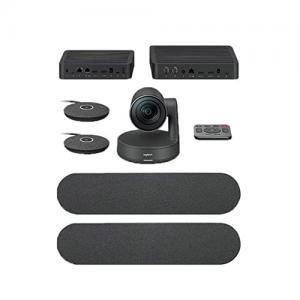

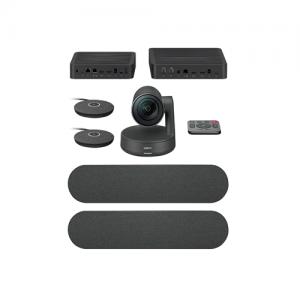

• Pan & Tilt : Pan: ±90°,Tilt: +50° / -90°
• Field of View : 90°
• Resolution : 1080p
• Frequency response : 90 Hz – 16 kHz
• Sensitivity : >-27 dB +/-1 dB @ 1 Pa
• Distortion : 200 Hz–300 Hz < 2.5%, 300 Hz–10
• Dimensions:
• Camera : 182.5 mm x 152 mm x 152 mm
• Speakerphone : 103 mm x 449 mm x 80 mm
• Hub : 40 mm x 206 mm x 179 mm
• Box Dimensions (LxWxH) : 5.98 x 5.98 x 7.19 inches
• Warranty : 2 years

• Brand : Logitech
• Field of View : 120°
• Built-in Speakerphone : 3 x built-in microphones,1 x optional microphone-ready expansion
• Supported Resolutions:
• Video calling with supported clients : 4K30: 3840 x 2160
• 1080p30 : 1920 x 1080
• 720p30 : 1280 x 720
• Remote Control:
• RF Remote : Camera control, volume, mute/unmute
• Bluetooth : Smartphone control and speaker usage
• Ports : USB 2.0 (separately available USB 3.0/3.1 Gen 1 required for 4K video)
• Built-In Microphone:
• Pickup Range : 8' / 2.4 m
• Sensitivity :  -28 dB
• Frequency Response : 90 Hz to 16 kHz
• Sample Rate : 32 kHz
• Features: Acoustic echo cancellation (AEC), voice activity detector (VAD), background noise suppression
• Built-In Speaker:
• Adjustable Volume : 95 dB SPL at 0.5 m peak
• Speaker Sensitivity : 86.5 +/-3 dB SPL at 0.5 m
• Distortion : 200 to 300 Hz <3%, 3000 Hz to 10 kHz <1%
• Features : Rare-earth magnet, acoustically suspended speaker enclosure, peak-limiting to prevent distortion
• Dimensions:
• Camera : 4.1 x 15.8 x 3.4" / 104 x 400 x 85 mm
• Remote : 3.3 x 3.3 x 0.4" / 83 x 83 x 10 mm
• Weight : 2.3 lb / 1 kg
• Package Weight : 5.37 lb
• Box Dimensions (LxWxH) : 18.65 x 7.95 x 5.4"
• Warranty : 2 years

• Brand : Logitech
• Pan & Tilt : Pan: 230°,Tilt: 130°
• Field of View : 90°
• Resolution : 1080p30
• Codec : H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Tripod Mounting Thread : 1/4"-20
• Microphones:
• Array : 4 x omnidirectional
• Frequency Response : 100 Hz - 11 kHz
• Sensitivity :  -28 dB ±3 dB
• Distortion : <1% @ 1 kHz at 106 dB
• Speakers:
• Frequency Response : 120 - 14 kHz
• Sensitivity : 83 dBSPL ±3 dB at 1 W / 1 m
• Max Output : 91 dBSPL
• Distortion : <5% from 200 Hz
• Remote Control Distance : Up to 28' / 8.5 m
• Connectivity:
• Computer: USB 2.0
• Dimensions:
• Camera : 5.1 x 7 x 5.4" / 130 x 170 x 138 mm
• Speakerphone : 9.5 x 2.5 x 9.5" / 240 x 65 x 240 mm
• Hub : 3.75 x 1.3 x 2.9" / 94 x 34 x 74 mm
• Remote : 2 x 5 x 0.5" / 50 x 120 x 12 mm
• Weight:
• Camera : 21 oz / 585 g
• Speakerphone : 43 oz / 1223 g
• Hub : 3 oz / 83 g
• Remote : 2 oz / 51 g
• Package Weight : 9.05 lb
• Box Dimensions (LxWxH) : 19.3 x 12.4 x 5.9"
• Warranty : 2 years


• Brand : logitech

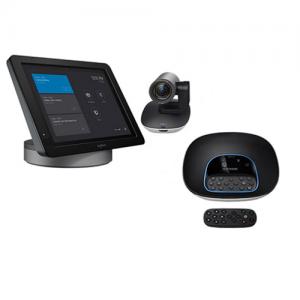

• Device Type : Video conferencing kit
• Width : 13.1 in
• Depth : 8.2 in
• Height : 9.4 in
• Dimensions & Weight Details:
• Camera : Width 6.7 in Depth 5.4 in Height 5.1 in Weight 20.6 oz
• Speakerphone : Width 2.6 in Depth 9.4 in Height 9.4 in Weight 2.7 lbs
• Hub : Width 1.3 in Depth 2.9 in Height 3.7 in Weight 2.9 oz
• Remote : Width 4.7 in Depth 0.5 in Height 2 in Weight 1.8 oz
• Microphone : Width 3.3 in Depth 0.8 in Height 3.3 in Weight 8.1 oz
• Built-in Devices : Docking station
• Bundled with : SmartDock Extender Box, Surface Pro (i5, 128GB, 4GB), Logitech Group + Expansion Mics
• Video Input:
• Type : Digital camera (color) - desktop
• Audio Input:
• Type : Two microphones - external
• Audio Output:
• Type : Speaker(s)
• Input Device:
• Type : Remote control, motion sensor
• Connectivity Technology : Wired
• Networking:
• Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
• Expansion / Connectivity
• Interfaces:
• 3 x USB 3.1 - 9 pin USB Type A
• 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45
• 3 x audio / video - HDMI
• 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm
• 1 - Microsoft Surface connector
• Miscellaneous
• Cables Included : 2 x HDMI cable - 10 ft,1 x network cable - 10 ft
• Power:
• Power Device : Power adapter
• Voltage Required : AC 120/230 V
• Country of Origin : CN
• Warranty : 2 years


• Brand : logitech
• Camera : Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
• H.264 UVC 1.5 with Scalable Video Coding (SVC)
• Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
• 90-degree field of view with autofocus; 4X digital zoom in Full HD
• Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
• Digital pan, tilt and zoom from remote control or optional downloadable app
• ZEISS lens certification
• Camera LED for active streaming indication
• Speakerphone :
• Integrated full duplex speakerphone with echo and noise cancellation
• 360-degree wideband audio with 12-foot (3.6 m) diameter range
• Bluetooth® and NFC enabled
• LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
• Microphones (Tx) : Two omni-directional microphones supporting 3.6 m diameter range
• Frequency response : 100Hz – 16KHz; Sensitivity: -34dB +/-3dB
• Speakers (Rx):
• Frequency response : 140Hz – 16KHz; Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
• Max output : 91.5dBSPL at 0.5M
• Remote control : Dockable remote control for camera / speakerphone functions; 10-foot (3m) range
• Cables : USB & Power adapter with cord
• Warranty : 2 years

• Brand : logitech

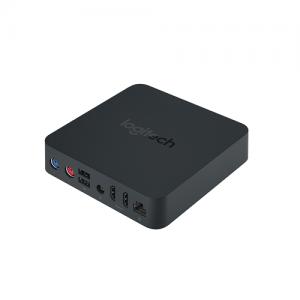

• Product Type : Docking station
• Width : 5 in
• Depth : 5 in
• Height : 1.3 in
• Weight : 12.7 oz
• Expansion or Connectivity:
• Interfaces : 2 x audio or video - HDMI - 19 pin HDMI Type A 3 x USB 3.1 1 x network - Ethernet 1000 - RJ-45 1 x headset - mini-phone 3.5 mm
• Miscellaneous:
• Cables Included : 1 x data extension cable - 16.4 ft
• Warranty : 2 years


• Brand : logitech

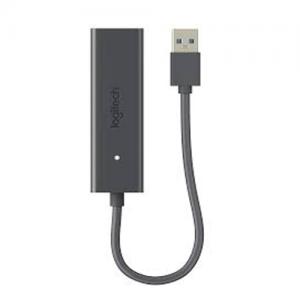

• Device Type : External video adapter
• Bus Type : SuperSpeed USB 3.0
• Max Resolution : 1920 x 1080
• Interfaces : HDMI,USB 3.0 (male connector)
• Features : LED indicator, USB powered
• OS Required : Apple MacOS X 10.10.x or later, Microsoft Windows 7 / 8.1 / 10
• Included Accessories
• Hook-and-loop fastener, cable management mounts
• Cables Included : USB 3.0 / USB 2.0 cable - 9.8 in
• Width : 0.6 in
• Depth : 1 in
• Height : 3.3 in
• Weight : 1.06 oz
• Country of Origin : CN
• Warranty : 2 years

• Brand : logitech
• Product Type : Microphone set
• Recommended Use : Conference
• Microphones Included : 2
• Connectivity Technology : Wired
• Warranty : 2 years

• Brand : logitech

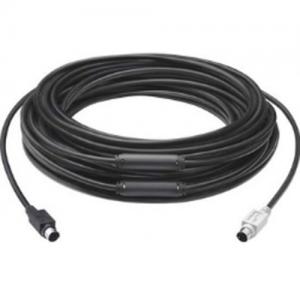

• Cable Length : 15 m
• Cable Thickness : 5 mm
• Repeater Length : 50 mm
• Repeater Thickness : 12 mm
• Weight : 510 g
• Connection Type : Mini-DIN-6
• Warranty : 2 years


• Brand : logitech

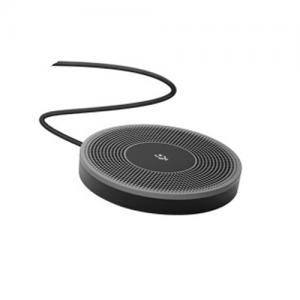

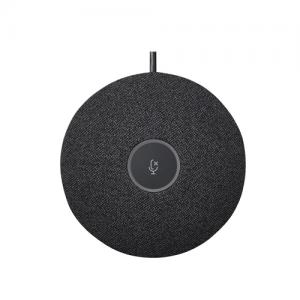

• Product Type : Microphone
• Recommended Use     : Conference
• Microphone Operation Mode    : Mono
• Microphone Active Noise Cancelling : Yes
• Designed For : Small Room Solution for Google Meet, for Microsoft Teams Rooms, for Zoom Rooms
• Depth : 8.3 cm
• Height : 1.34 cm
• Max Operating Distance : 4.2 m
• Weight : 302 g
• Width : 8.3 cm
• Connectivity Technology : Wired
• Features : Mute function
• Cables Included : Microphone cable - 6 m
• Warranty : 2 years


• Brand : logitech
• Device Type : Web camera - pan / tilt / zoom
• Audio : Yes : built-in speaker, built-in microphone
• Dimensions (WxDxH) : 10.4 cm x 15 cm x 15.4 cm
• Weight : 231 g
• Connectivity Technology : Wired
• Camera : Colour
• Max Resolution : 1920 x 1080
• Focus Adjustment : Automatic
• Panning Range (degree) : 180
• Tilting Range (degree) : 55
• Interfaces : USB 2.0
• Cables Included : 1 - USB cable - 2.4 m
• Features : USB 2.0 compatibility, Carl Zeiss optics, Skype compatible
• Microsoft Certification : Compatible with Windows 7
• Depth : 15 cm
• Height : 15.4 cm
• Width : 10.4 cm
• Digital Video Format : H.264
• Video Capture : 1920 x 1080 @ 30 fps
• Shipping Depth : 17.3 cm
• Shipping Height : 12.4 cm
• Shipping Weight : 1.103 kg
• Shipping Width : 17.7 cm
• Interfaces : 1 x headset - mini-phone 3.5 mm ¦ 1 x USB 2.0 - 4 pin USB Type A
• Included Accessories : Remote control
• Power Device : Power adapter - external
• OS Required : Microsoft Windows Vista / XP / 7, Apple MacOS X 10.6 or later
• Warranty : 2 years

• Brand : logitech

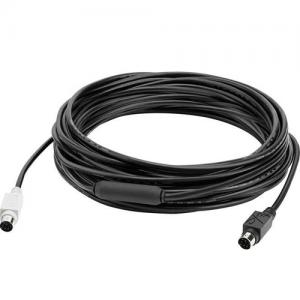

• Cable Length : 10m
• Cable Thickness : 4 mm
• Repeater Length : 50 mm
• Repeater Thickness : 12 mm
• Weight : 278 g
• Connection Type : Mini-DIN-6
• Warranty : 2 years


• Brand : Logitech

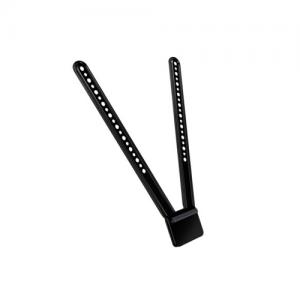

• Product Type : Camera mount
• Placing / Mounting : On-the-monitor mountable
• Dimensions (WxDxH) : 8.3 cm x 1.6 cm x 40 cm
• Weight : 280 g
• Designed For : Small Room Solution for Google Meet, for Microsoft Teams Rooms, for Zoom Rooms
• Depth : 1.6 cm
• Height : 40 cm
• Width : 8.3 cm
• Features : VESA interface support
• Mounting Kit : Included
• Warranty : 2 years

• Brand : Logitech

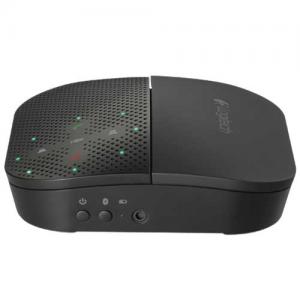

• Product Type : Speaker phone - Bluetooth - wireless, wired - NFC
• Additional Functions : LED lights
• Width : 4.7 in
• Depth : 4.7 in
• Height : 1.6 in
• Weight : 9.7 oz
• Recommended Use : Portable electronics, computer - communication
• Headphones:
• Connectivity Technology : Wireless, wired
• Wireless Technology : Bluetooth
• Frequency Response : 140 - 16000 Hz
• Dynamic Range : 85 dB
• Microphone:
• Microphone Operation Mode : Omni-directional
• Directivity Angle : 360°
• Frequency Response : 50 - 8000 Hz
• Controls : Volume, answer/end
• Connector Type : USB (4 pin USB Type A),Headphones (mini-phone stereo 3.5 mm)
• Cables Included : USB cable
• Included Accessories : Carrying case, spacer
• Power Device : Power adapter - external
• Battery : Speaker phone battery rechargeable
• Run Time (Up To) : 15 hour(s)
• Country of Origin : CN
• Warranty : 2 years

• Brand : Logitech
• Device Type : Video/audio extender
• Form Factor : External
• Connectivity Technology : Wired
• Data Link Protocol : GigE
• Max Resolution : 1080p @ 60 Hz
• Max Transfer Distance : 49 ft
• Interfaces : 2 x HDMI - 19 pin HDMI Type A female,1 x USB 2.0 - Type A female,1 x Ethernet 1000Base-T - RJ-45,1 x - 6 pin DIN
• Included Accessories : Mounting screws, screwdriver, SmartDock Flex Base, cable ties, security mount, hook and loop pads
• Cables Included : 1 x HDMI adapter,1 x network cable - 16.4 ft,1 x micro-USB to USB cable - 9.7 ft
• Width : 5.6 in
• Depth : 1.2 in
• Height : 5.6 in
• Country of Origin : CN
• Warranty : 2 years


• Brand : Logitech
• Device Type : Web camera
• Audio Support : Yes : built-in dual stereo microphones
• Camera Mount Type : Surface mount, tripod mount
• Connectivity Technology : Wired
• Width : 4 in
• Depth : 1.1 in
• Height : 1.1 in
• Weight : 2.22 oz
• Type : Color
• Max Digital Video Resolution : 4096 x 2160
• Video Modes : 720p, 1080p, 4K
• Digital Zoom : 5
• Video Capture : 4096 x 2160 @ 30 fps,1920 x 1080 @ 60 fps,1280 x 720 @ 90 fps
• Features : Passive infrared sensor, High Dynamic Range (HDR), 4K ULTRA HD engine, RightLight 3 technology
• Focus Adjustment : Automatic
• Computer Interface : USB
• Included Accessories : Carrying case, removable clip, privacy shutter
• Cables Included : 1 x USB cable - 5 ft
• Compliant Standards : Plug and Play
• OS Required : Apple MacOS X 10.10, Microsoft Windows 7 / 8.1 / 10, Google Chrome OS 29
• System Requirements Details : Core 2 Duo - 2.4 GHz - RAM 2 GB
• Country of Origin : CN
• Warranty : 3 years

• Brand : Logitech

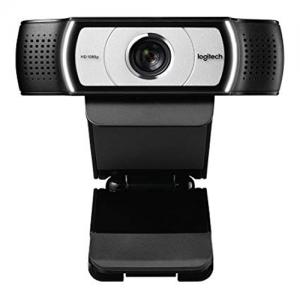

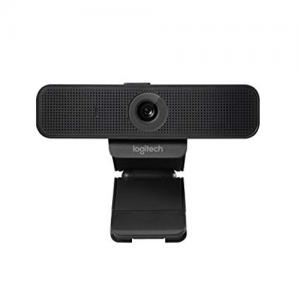

• Device Type : Web camera
• Audio Support : Yes : built-in dual stereo microphones
• Connectivity Technology : Wired
• Width : 3.7 in
• Depth : 1.7 in
• Height : 2.8 in
• Weight : 5.71 oz
• Type : Color
• Digital Video Format : H.264
• Max Digital Video Resolution : 1920 x 1080
• Digital Zoom : 4
• Video Capture : 1920 x 1080 @ 30 fps
• Features : RightLight 2 technology, auto low-light correction, Carl Zeiss optics, USB 3.0 compatibility, 1080p Full HD movie recording, Skype compatible
• Focus Adjustment : Automatic
• Computer Interface : USB 2.0
• Interfaces : 1 x USB 2.0 - 4 pin USB Type A
• Included Accessories : Privacy shutter
• OS Required : Microsoft Windows 7, Apple MacOS X 10.7 or later, Windows 8
• Country of Origin : CN
• Warranty : 3 years

• Brand : Logitech
• Device Type : Web camera
• Audio Support : Yes : built-in dual stereo microphones
• Connectivity Technology : Wired
• Width : 5 in
• Depth : 1.8 in
• Height : 2.9 in
• Weight : 6 oz
• Type : Color
• Digital Video Format : H.264
• Max Digital Video Resolution : 1920 x 1080
• Features : Skype compatible
• Focus Adjustment : Automatic
• Computer Interface : USB 2.0
• Compliant Standards : UL, FCC, RoHS, WEEE, TUV T
• OS Required : Apple MacOS X 10.7 or later, SUSE Linux Enterprise 11 SP2, Microsoft Windows 7 / 8 / 10
• Country of Origin : CN
• Warranty : 3 years

• Brand : Logitech

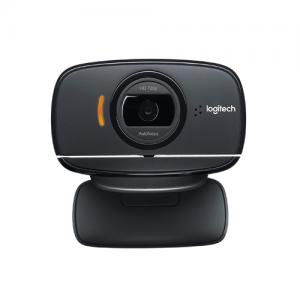

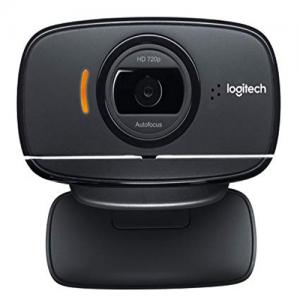

• Device Type : Web camera
• Audio Support : Yes : built-in microphone
• Connectivity Technology : Wired
• Width : 2.7 in
• Depth : 1.1 in
• Height : 1.6 in
• Weight : 3.1 oz
• Type : Color
• Max Digital Video Resolution : 1280 x 720
• Video Capture : 1280 x 720 @ 30 fps
• Features : USB 2.0 compatibility, RightLight 2 technology, 720p HD video calls, Skype compatible
• Focus Adjustment : Automatic
• Min Focus Distance : 3.9 inComputer Interface : USB 2.0
• Interfaces : 1 x USB 2.0 - 4 pin USB Type A
• Included Accessories : Flat panel monitor clip
• Cables Included : 1 x USB cable - 5 ft
• Compliant Standards : Plug and Play
• OS Required : Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista
• Country of Origin : CN
• Warranty : 3 years

• Brand : Logitech

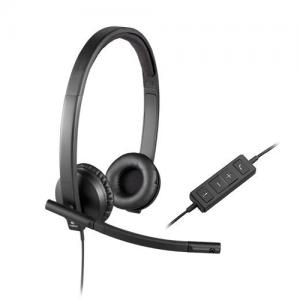

• Product Type : Headset - wired
• Additional Functions : LED lights
• Width : 6.9 in
• Depth : 2 in
• Height : 6.5 in
• Weight : 4.23 oz
• Recommended Use : Computer
• Headphones Form Factor : On-ear
• Connectivity Technology : Wired
• Sound Output Mode : Stereo
• Frequency Response : 50 - 10000 Hz
• Sensitivity : 90 dB
• In-Cord Volume Control : Yes
• Type : Boom
• Microphone Operation Mode : Mono
• Sensitivity : -45 dB
• Frequency Response : 100 - 10000 Hz
• Controls : Volume, answer/end
• Connector Type : USB (4 pin USB Type A)
• Cables Included : Headset cable
• Included Accessories : Carrying pouch
• Country of Origin : CN
• Warranty : 2 years


• Brand : Logitech
• Product Type : Headset - wired - USB
• Compatibility : Linux, Mac, Windows
• Additional Functions : DSP
• Width : 6.5 in
• Depth : 2 in
• Height : 6.8 in
• Weight : 3.91 oz
• Earpad Material : Leatherette
• Recommended Use    : Computer - communication
• Headphones:
• Headphones Form Factor : On-ear
• Connectivity Technology : Wired
• Sound Output Mode : Stereo
• Frequency Response : 31.5 - 20000 Hz
• Total Harmonic Distortion (THD) : <5%
• Sensitivity : 94 dB
• In-Cord Volume Control : Yes
• Features : In-call LED indicator
• Microphone:
• Type : Boom
• Form Factor : Headset microphone
• Microphone Technology : Electret condenser
• Sensitivity :  -47 dB
• Frequency Response : 100 - 18000 Hz
• Total Harmonic Distortion (THD) : <2%
• Controls : Mute, volume, answer/end
• Connector Type : USB (4 pin USB Type A)
• Cables Included : USB cable
• Software Certification : Certified for Skype for Business, Lync 2013 Certified
• Compliant Standards : EN 60950-1
• Warranty : 2 years

Widest  sharpest  fastest

HD video desktop collaboration

Features:

• HD 1080p video quality at 30 frames-per-second

• H.264 with scalable video coding (SVC) and UVC 1.5 encoding technology

• 90-degree diagonal field of view

• Logitech RightLight 2 technology and autofocus

• 4X digital zoom in Full HD

• Pan  tilt and zoom option controlled by software

• ZEISS glass lens

• Convenient privacy shutter

• Plug-and-play USB connectivity

• Multiple mounting options

Product Specification:

Without clip:

Width 3.7 inches (94mm)

Height 1.14 inches (29mm)

Depth .95 inches (24mm)

With clip:

Width 3.7 inches (94mm)

Height 1.7 inches (43mm)

Depth 2.8 inches (71mm)

Weight 5.7 ounces (162g)

Packaging Dimensions:

7.1 x 5.3 x 3.2 in (180 x 135 x 81 mm)

Weight: 13.9 oz (393g)

System Requirements

• Windows 7 or Windows 8

• Mac OS X 10.7 or higher

• 2.4GHz Intel Core 2 Duo processor

• 2GB RAM or more

• Hard drive space for recorded videos

• USB 2.0 port (USB 3.0 ready)

Inside the box

• Logitech Webcam C930e

• External Privacy Shutter

• Quick Start Guide

Warranty

3-year limited hardware

PRODUCT SPECIFICATIONS:BRIO

CERTIFICATIONS:

Certified for Skype for Business3  Windows  Mac  and

Microsoft Windows Hello certified

SYSTEM REQUIREMENTS:

Windows 7  Windows 8.1  or Windows 10

Mac OS X 10.10 or higher

Google Chromebook Version 29.0.1547.70

Platform 4319.79.0 with:

2.4 GHz Intel Core 2 Duo processor

2 GB RAM or more

Hard drive space for recorded videos

USB 2.0 port (USB 3.0 required for 4K)

COMPATIBILITY:

UVC/plug-and-play compatible

Works with Cortana

Cisco Jabber™ and WebEx® compatible

PRODUCT DIMENSIONS + WEIGHT:

Camera

102 x 27 x 27mm

4 x 1 x 1”

63g/2.2oz

Clip

36 x 99 x 6mm

1.4 x 3.9 x 0.22”

44g/1.5oz

Cable

2.2m

7.2’

63g/2.2oz

INSIDE THE BOX:

Webcam camera  removable clip  and USB 3.0 cable

with Type A connector

SOFTWARE DOWNLOADS:

Designed to work with the built-in operating system

USB video-class driver

Optional Camera Settings App provides:

Adjustable field of view

Camera image settings

Pan  tilt and zoom

Integrated background replacement labs project

powered by Personify

WARRANTY

3-year limited hardware

FEATURES & BENEFITS:

Ultra HD 4K image sensor

Supports multiple resolutions  including 4K (Ultra HD)

@ 30 fps  1080p (Full HD) @ 30 or 60 fps and 720p

(HD) @ 30  60  or 90 fps to best support the quality

offered by your application and monitor.

RightLight™ 3 with HDR

Look your best in any lighting environment  from low

light to direct sunlight or high contrast.

Ultra-secure login with infrared sensor

Infrared technology supports facial recognition for

advanced security with Windows Hello™ or other

facial recognition software.

5X digital zoom

Need a closer view of fine details? Zoom in and move

around your scene with precision using Logitech or

in-app controls.

Expansive field of view

Adjust your field of view from 90° to show more of

your setting or include more people—or narrow the

scope to 65° or 78° for more focused communication

Razor-sharp optics with autofocus

Enhance face-to-face collaboration. BRIO is the

next best thing to physically being there. Advanced

Logitech autofocus lens technology delivers

remarkable video quality with superb resolution

speed  fluidity  color balance  and detail.

Certified for Business

Business-grade certifications2 mean you can launch

your next presentation or video meeting with

complete confidence.

Omni-directional microphones

Two omni-directional microphones with noise

cancellation provide business-class audio

performance. Mics even work with Microsoft®

Cortana®.

Multiple mounting options

Freedom to mount the camera wherever it works

best – LCD screen  notebook  or tabletop – by using

the removable clip or embedded tripod thread. Clip is

adjustable to fit a variety of screens.

Plug-and-play USB connectivity

Easily connects to PC  Mac and Chrome™ devices

with no additional software required.

Privacy shade

Switch to privacy mode in an instant with the privacy

shade.

Multiple connection types

Enjoy the flexibility of USB 2.0 Type A and USB 3.0 Type

A and C connections.

Custom carrying case

Take your show on the road. The custom carrying case

features separate compartments for the camera and

detachable clip/cable to conveniently transport BRIO

wherever your travels take you.

TECH SPECIFICATIONS:

HD video calling (1280 x 720 pixels) with

recommended system

Autofocus

Built-in mic

69° diagonal field of view

Universal clip fits laptops  LCD or CRT monitors

Hi-speed USB 2.0 certified

UVC compliant

True 2.0-megapixel sensor with RightLight™ 2

technology

Works with most video conferencing applications

5-foot cable

PRODUCT SPECIFICATIONS:

B525 HD Webcam

PRODUCT DIMENSIONS + WEIGHTWith

Clip

68.5 x 29 x 40.4 mm

2.7 x 1.14 x 1.6”

88g/3.1oz

INSIDE THE BOX:

Webcam

User documentation

SYSTEM REQUIREMENTS:

UVC mode (No software installation required)

Windows 7  Windows 8 or

Windows 10

COMPATIBILITY:

Certified for Skype for Business and Optimized

for Microsoft LyncTM  Cisco Jabber® and WebEx®

compatible. Enhanced integration with Logitech

Collaboration Program (LCP) members1.

WARRANTY

3-year limited hardware.

FEATURE SPOTLIGHT:

Works with most video conferencing applications

Users are free to use the desktop video conference

program of their choice.

High quality microphones

Built-in mic ensures sound is crystal clear.

Fold-and-go for ultimate mobility

Integrated fold-and-go design let’s you easily pack

the camera and take it with you without needing a

separate case – perfect for the busy professional on

the go.

Premium HD quality with autofocus

720p HD up to 30 fps with autofocus – images stay

razor sharp in high definition  even in close-ups (up to

10 cm from the camera lens).

Three-year limited hardware warranty

Logitech for Business supports the needs of

businesses with extended warranty.

True 2.0-megapixel sensor with RightLight™ 2

technology

Maintain high quality image calling even in offices or

conference rooms with lower lighting.

Design advantages for business

With the 360° swivel  easily position the camera at

multiple angles whether for single party or multi-party

calling. And if you don’t want to be seen  swivel the

camera away from you for privacy.

True plug and play

Just plug in Logitech B525 HD Webcam  choose

your video application of choice and start your

meeting.

Universal clip

Fits your LCD monitor or laptop wherever you work.

TECH SPECS:

CAMERA:

• Smooth motorized pan  tilt and zoom  controlled

from remote or console

• 260°pan  130° tilt

• 10x lossless HD zoom

• 90° Field of View

• Full HD 1080p 30fps

• H.264 UVC 1.5 with Scalable Video Coding (SVC)

• Autofocus

• 5 camera presets

• Far-end control (PTZ) of ConferenceCam products

• ZEISS® lens certification

• Kensington security slot

• LED to confirm video streaming

• Standard tripod thread

SPEAKERPHONE:

• Full-duplex performance

• Acoustic echo cancellation

• Noise reduction technology

• Ultra-wideband audio

• Bluetooth and NFC wireless technology

• LCD for caller ID  call duration and other

functional response

• LEDs for speakerphone streaming  mute  hold

and Bluetooth® wireless pairing

• Touch controls for call answer/end  volume and

mute  Bluetooth wireless enabled – plus camera

PTZ  “home” preset and far-end control

• Kensington security slot

HUB / CABLE:

• Central mountable hub for connection of all

components

• Included adhesive solution for under-table

mounting

• Two cables for connection between hub and

camera/speakerphone (Length: 5m/16-foot)

• One USB cable for connection to PC/Mac®

(Length: 3m/9.8-foot)

• AC Power adapter (Length: 3m/9.8-foot)

MOUNT:

• Dual purpose mount for wall placement or for

elevating the camera on a table

Microphones (Tx):

– Four omni-directional microphones supporting

20-foot diameter range

– Frequency response: 100Hz – 11KHz

– Sensitivity: -28dB +/-3dB

– Distortion: <1 % @ 1KHz at 106dB

COMPLIANCE AND TOOLS:

• USB 2.0 compliant

• UVC-compliant video and audio for broad

application compatibility

• Optimized for Microsoft Lync  Certified for

Skype for Business  Cisco Jabber and WebEx

compatible. Enhanced integration with Logitech

Collaboration Program (LCP) members.

• Downloadable diagnostic tool

• Field upgradeable firmware tool

• Downloadable app plug-ins for advanced

feature support

Speakers (Rx):

– Frequency response: 120Hz – 14KHz

– Sensitivity: 83dBSPL +/-3dB at 1W/1M

– Max output: 91dBSPL

– Distortion: <5 % from 200Hz

REMOTE CONTROL:

• Dockable remote control

• 8.5m/28-foot range

WARRANTY:2-year limited hardware

PRODUCT DIMENSIONS:

Rally Camera

Height x Width x Depth:

7.19” x 5.88” x 5.88”

182.5 mm x 152 mm x 152 mm

Rally Camera Mounting Bracket

Height x Width x Depth:

3.47” x 4.33” x 6.69”

88 mm x 110 mm x 170 mm

Rally Camera Power Splitter

Height x Width x Depth:

0.84” x 3.19” x 2.38”

21.4 mm x 81 mm x 60.5 mm

USB 3.0 cable

7.2 ft (2.2 m)

Power Adapter Cable

9.8 ft (3 m)

SPECIFICATIONS:

Camera:

Ultra-HD imaging system supports:

4K  1440p  1080p  900p  720p  and most SD

resolutions at 30 fps

1080p  720p at 30 fps and 60 fps

Smooth motorized pan  tilt and zoom

Pan: ±90°

Tilt: +50° / -90°

15x HD zoom

90° field of view

Autofocus

3 camera presets

Kensington security slot

Video mute/unmute LED indicator

Standard tripod thread

RightSense Technologies:

RightLight with Wide Dynamic Range (WDR)

RightSight automatic camera control

Remote Control:

RF remote control (line of sight not required)

CR2032 battery (included)

Power:

AC Power adapter with regional plugs

Power cable (9.8 ft / 3 m)

Mount:

Invertible wall mount with power splitter bay and cable management.

SYSTEM REQUIREMENTS:

Operating Systems:

Windows 7  Windows 8.1 or Windows 10

Mac OS X 10.10 or higher

Chrome OS

Resolutions higher than 1080p:

Windows 8.1 or higher or Mac OS 10.10 or higher

USB 3.0 port and Type C cable

Compatible software

ADDITIONAL SOFTWARE:

*RightSight automatic camera control

Future Availability: RightSight will be enabled by a software download  with initial support for Windows 10.

COMPATIBILITY:

UVC/plug-and-play compatible with virtually any cloud-based video conference application

Certified for Skype for Business and ready for Teams

Cisco Compatible

Compatible with Google Hangouts Meet  Zoom  BlueJeans  BroadSoft  GoToMeetingTM  Vidyo  and other video conferencing  recording  and broadcasting applications that support USB cameras

CONNECTIVITY:

USB Type-C

MIPI Connector

Expansion Slot

WARRANTY:2-Year Limited Hardware Warranty

SOFTWARE DOWNLOADS:

Required software: None

Optional Camera Settings App gives access to advanced options:

INSIDE THE BOX:

Rally Camera

Remote control

USB 3.0 Type-C cable

Power adapter with regional plugs

Power splitter & case

Camera mount with mounting hardware

Documentation

RALLY CAMERA:

Ultra-HD imaging system supports:

4K  1440p  1080p  900p  720p  and SD at 30fps

1080p  720p at 30 fps and 60 fps

Smooth motorized pan  tilt and zoom

Pan: ±90°

Tilt: +50° / -90°

15x HD zoom

90° field of view

Adaptive pan and tilt speed up to 70°/second

(slows when zoomed in for easier control)

Automatic inversion detection to correct image

orientation and camera controls when mounted

upside down

Autofocus

3 camera presets

Kensington security slot

Video mute/unmute LED indicator

Standard tripod thread

Lens parks at -90° in sleep mode for assured

privacy

RALLY SPEAKER:

High-performance 3” (76mm) driver

Patent pending suspension system eliminates

vibration-induced camera shake and audio

interference

Mini XLR cable (9.6 ft (2.95m)) connects

CABLES / POWER:

Camera to Display Hub

6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1

Conference Room Computer to Display or Table Hub

6.5 ft (2m) USB 3.1 Type A to USB Type B

Display Hub to Table Hub

16.4 ft (5m) CAT6A Ethernet cable (supports

customer-supplied cables up to 164 ft (50 m))

Display Hub to Speaker (x2)

9.6 ft (2.95m) Mini XLR (supports customersupplied

extension cables up to 9.8 ft (3m))

Conference Room Computer to Displays (x2)

6.5 ft (2m) HDMI A

Mic Pod

9.6 ft (2.95m): Hardwired with 12 pin connector

Power Outlets to Power Supplies (x2)

3.2 ft (1m)

Power Supplies to Table Hub / Display Hub (x2)

4.9 ft (1.5m)

RALLY TABLE HUB:

Single cable (CAT6A) connection to Rally

Display Hub (16.4 ft (5m) CAT6A Ethernet cable

included  supports customer-supplied cables up

to 164 ft (50 m))

Active speaker detection: analyzes audio from up

to 7 Mic Pods and 56 beams every 8ms

12 Pin connector for Rally Mic Pod

HDMI Type A for wired content sharing

HDMI Type A for display

Power input

USB Type C (Ultra HD / 4K capable)

USB Type A (reserved for future capability)

USB Type B (connects to meeting room computer)

RJ45 (Ethernet)

Bluetooth wireless technology

RALLY DISPLAY HUB:

HDMI Type A (x2) (connects to displays)

Power input

USB C (connects to Rally Camera)

USB Type B (connects to meeting room computer)

RJ45 (connects to Table Hub)

Mini XLR (x2) (connects to Rally Speakers)

Powers one or two Rally Speakers

RALLY MIC POD:

Pickup range: 15 ft / 4.5m diameter

Four microphones with eight beamforming

elements

Mute button with LED status indicator

Captive cable: 9.6 ft (2.95m)

Daisy chain up to 7 Rally Mic Pods

Recommended participants:

Rally (one Mic Pod): 10

Additional participants per Mic Pod: 6

Recommended participants for Rally with

7 Mic Pods: 46

REMOTE CONTROL:

RF remote control (line of sight not required)

CR2032 batteries (included)

RIGHTSENSE TECHNOLOGIES:

RightLight with Wide Dynamic Range (WDR)

RightSight automatic camera control1

RightSound Mic Matrix

RightSound Anti-Vibration Speakers

COMPATIBILITY AND INTEGRATIONS:

Plug-and-play USB connectivity

Certified for Skype for Business and ready for

Teams

Certified for Google Hangouts Meet Hardware

Zoom Certified

Cisco Compatible

Compatible with BlueJeans  BroadSoft

GoToMeeting  Vidyo  and other video

conferencing  recording  and broadcasting

applications that support USB cameras

WARRANTY- 2-year limited hardware warranty

FEATURES & BENEFITS:

Premium HD PTZ video camera for professional

video collaboration

Ideal for conference rooms  training environments

large events and other professional video applications.

HD 1080p video quality at 30 frames per second

Delivers brilliantly sharp image resolution  outstanding

color reproduction  and exceptional optical accuracy.

H.264 UVC 1.5 with Scalable Video Coding (SVC)

Advanced camera technology frees up bandwidth by

processing video within the PTZ camera  resulting in a

smoother video stream in applications like Microsoft

Skype for Business.

90° field of view with mechanical 260° pan

and 130° tilt

Enhanced pan/tilt and zoom motor performance

make moving from preset to preset smoother. The

wide field of view makes it easy to see everyone

clearly.

10x lossless full HD zoom

Zoom wide or zero in on close-ups to clearly view

objects  whiteboard content  and other details.

Autofocus

Superior camera lenses provide unparalleled

sharpness  color rendition  and speed. Autofocus

ensures that people and objects are clear wherever

the camera is pointed.

Premium Logitech camera lens

Logitech designs and manufactures our own lenses to

meet the highest technical standards and provide the

experience of sitting in front of someone  even if you

are a thousand miles away.

Far-end camera control

Operate camera pan  tilt and zoom functions1 of a

remote PTZ Pro 2  Logitech ConferenceCam  or select

Logitech webcams2.

Remote control

Easily operate camera pan/tilt/zoom functions during

meetings.

Multiple mounting options

Configure the conference room or event space the

way you want: use the PTZ camera on a table or wall

mount with included hardware. The camera includes a

standard tripod thread for added flexibility.

Plug-and-play USB connectivity

Easily connects to PC  Mac and ChromeTM devices

with no additional software required.

Works with most video conferencing applications

Compatible with virtually any video conferencing

software app  including the ones you already use.

Kensington security slot

PTZ Pro 2 is provisioned with a Kensington security slot

to help secure the equipment with an anti-theft lock.

3 camera presets

Select up to three preset locations for the camera view

and return to any of them with the push of a button

on the remote control.

Camera settings app

Adjust local camera pan  tilt  zoom  image settings

and other advanced controls from a PC or Mac with

a simple-to-use software app.

PRODUCT DIMENSIONS + WEIGHT:

Camera

131 x 130 x 146 mm

5.16 x 5.12 x 5.75”

580 g /20.46 oz

Remote

50 x 120 x 10 mm

1.97 x 4.72 x 0.39”

48 g / 1.69 oz

COMPATIBILITY:

Certified for Skype for Business  Optimized for Cisco

Jabber and WebEx compatible3  Vidyo Certified Device

Enhanced integration with Logitech Collaboration

Program (LCP) members

SYSTEM REQUIREMENTS:

Windows 7  Windows 8.1 or Windows 10

Mac OS X 10.10 or higher

For full HD support  please check with software

application provider for system requirements

INSIDE THE BOX:

Camera

Remote Control

10-foot USB Cable with Power Adapter Connection

Power Adapter with Regional Plugs

Mount

Quick Start Guide

Warranty Card

WARRANTY:2-year limited hardware

SOFTWARE DOWNLOADS:

Optional Camera Settings App provides pan  tilt  zoom

and other camera settings options.

• VIDEO STANDARDS AND PROTOCOLS: H.264 AVC, H.264 High Profile, H.265
• Output:  UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
• VIDEO INPUT: 1x HDMI
• VIDEO OUT: 2x HDMI
• Touch display compatible
• OTHER INTERFACES: 2x USB A (3.0)
• 1x USB C
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO)
• Multi channel Concurrency
• AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren
• 22 technology, AAC-LD (TIP calls), G.719
• 14 kHz bandwidth with Polycom Siren
• 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• CONTENT SHARING:
• Poly content app
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding
• PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• CAMERA: 5x digital zoom
• 120° FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing
• NETWORK: IPv4
• 1x 10/100/1G Ethernet
• Auto MDIX
• H.323 and/or SIP up to 6 Mbps running
• Poly Video App
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support: Basic, Digest, and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
• CONTENT VIDEO RESOLUTION:
• Input: UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)
• AUDIO INPUT: 3x MEMS microphones, plus 2x
• 2nd order microphones
• 1x HDMI
• 1x 3.5 mm line in
• AUDIO OUTPUT:
• Stereo speakers
• 1x 3.5 mm line out
• SECURITY: Media encryption (H.323, SIP):
• AES 128, AES 256
• H.235.6 support
• Authenticated access to admin menus,
• web interface, and API
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
• ELECTRICAL: Auto sensing power supply
• Typical operating voltage/power
• 37 VA 120 V 60 Hz
• 37 VA 230 V 50/60 Hz
• Typical BTU/h: 65
• ENVIRONMENTAL SPECIFICATION:
• Operating temperature: 0 to 40°C
• Operating humidity (non condensing): 15 to 80%
• Non operating temperature: -40 to 70°C
• Non operating humidity (non condensing): 5 to 95%
• Maximum altitude: 16,000 ft
• OPTIONS: VESA mount kit, Stand
• Poly TC8
• PHYSICAL CHARACTERISTICS:
• 30 W x 4 H x 4 D (Inches)
• 762 W x 102 H x 102 D (MM)
• 5.6 lbs/2.54 kg
• INTEROPERABILITY: Support for native 3rd party applications,including Zoom Rooms for Android
• All cloud service provider through Poly Video App Mode
• WARRANTY: 1 year return to factory parts and labor

• PACKAGE INCLUDES: Poly Studio X30
• Cable bundle
• Monitor clamp
• Privacy cover
• VIDEO STANDARDS AND PROTOCOLS: H.264 AVC, H.264 High Profile, H.265
• Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
• VIDEO INPUT: 1x HDMI
• VIDEO OUT: 1x HDMI, Touch display compatible
• OTHER INTERFACES: 1x USB-A (3.0), 1x USB-C
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO)
• Multi channel Concurrency
• AUDIO STANDARDS AND PROTOCOLS: 22 kHz bandwidth with Polycom Siren 22 technology, AAC-LD (TIP calls), G.719
• 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• CONTENT SHARING: Poly Content App support
• Apple Airplay
• Miracast
• HDMI input
• Whiteboarding
• PEOPLE VIDEO RESOLUTION
• 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• CAMERA: 4x digital zoom, 120° FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing
• NETWORK: IPv4
• 1x 10/100/1G Ethernet
• Auto MDIX
• H.323 and/or SIP up to 6 Mbps in Poly App
• video mode
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• Web proxy support basic, digest, and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
• DATA SHEET
• CONTENT VIDEO RESOLUTION
• Input: UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600
• Output: UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• AUDIO INPUT: Four MEMS microphones
• AUDIO OUTPUT: Single Speaker

• DIMENSIONS
• Unit dimensions: 105 mm x 700 mm x 70 mm = 4.2 x 27.3 x 2.8 (HxWxD) without stand
• 156 mm x 700 mm x 70 mm = 6.2 x 27.3 x 2.8 (HxWxD) with stand
• Weight: 5 lbs 2.6 oz (2342 g) without stand
• 6 lbs 4.7 oz (2856 g) with stand
• Remote control dimensions: 183 mm x 40 mm x 19 mm = 7.2 x 1.6 x .75 (HxWxD)
• APPLICATION REQUIREMENTS: Supported operating systems
• Windows 7, 8.1, 10
• MacOS 10.12, 10.13, 10.14
• Support for standard audio and video device drivers
• UAC 1.0 Audio
• UVC 1.1/1.5 Video
• HID 1.11
• POWER REQUIREMENTS: 12VDC/5A 100~240VAC, 50/60 Hz
• PACKAGE INCLUDES: Poly Studio
• Remote control with 2 AAA batteries
• Power adapter
• 5 m USB 2.0 cable (Type-C to Type-A)
• Wall mount kit
• Setup sheet
• OPTIONAL ACCESSORIES: Expansion microphone, Display mount
• CAMERA: 120 degree FOV
• UHD 2160p (4K) capture resolution
• Automatic people framing & speaker tracking
• 5x zoom / EPTZ
• 2 camera presets
• AUDIO: Poly Acoustic Clarity technology
• provides full duplex conversations
• acoustic echo cancellation and
• background noise suppression
• Poly NoiseBlock technology
• Poly Acoustic Fence technology
• Mute/unmute controls
• Stereo microphones: 6 element beamforming
• microphone array
• 12 ft pickup range
• 120 Hz–16 kHz frequency response
• Stereo speakers: 100 Hz–20 KHz frequency response
• Output: 90 dB 0.5m
• INTERFACES: 1x USB 3.0 Type C port (with 2.0 compatibility)
• Power connector
• Optional external microphone
• 3.5 mm stereo Audio In
• Kensington security lock
• 802.11ac WiFi wireless networking for manageability; IEEE 802.11a/b/g/n
• compatible
• Bluetooth 4.2
• APPLICATION COMPATIBILITY
• Compatible with any application that supports standard USB audio and video drivers, including but not limited to Certified for Microsoft Teams and Skype for Business
• Zoom Certified
• LogMeIn GoToMeeting
• BlueJeans Network
• Google Hangouts communication
• platform
• Amazon Chime
• Cisco Webex
• VidyoDesktop
• Polycom RealPresence Desktop
• SECURITY: 802.1x support, Certification management
• MANAGEABILITY (VIA WIFI): Polycom Companion App (running on Win/Mac PC connected to device)
• Polycom RealPresence Resource Manager
• Polycom Device Management Service
• WARRANTY: 1 year limited hardware warranty
• COUNTRY OF ORIGIN: Laos
• ENVIRONMENTAL
• Operating temperature: 32–104°F (0–40°C)
• Relative humidity: 5–95%, noncondensing
• Storage temperature: -13–160°F (-25°–70°C)

• PACKAGE INCLUDES: G7500 codec
• EagleEye IV camera or EagleEye Cube USB
• Poly IP Microphone
• Bluetooth remote control
• Cable bundle
• VIDEO STANDARDS AND PROTOCOLS: H.264 AVC, H.264 High Profile, H.264 SVC, H.265, RTV
• H.239, H.264 video error concealment
• VIDEO INPUT: 1x HDCI, 1x HDMI, 1x USB
• VIDEO OUT: 2x HDMI, Touch display compatible
• PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288)
• From 64 kbps
• QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• CONTENT VIDEO RESOLUTION:
• Input: UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• OPTIONS: Poly TC8
• Poly IP Table Microphone
• Poly Microphone IP Adapter
• EagleEye Cube USB
• EagleEye Director II
• EagleEye Producer
• INTEROPERABILITY
• Support for native 3rd party applications
• including Zoom Rooms for Android
• All cloud service providers through Poly
• Video App Mode
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)
• Output: UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
• CONTENT SHARING: Poly Content App support
• Apple AirPlay
• Miracast
• 1x HDMI input
• AUDIO INPUT: Up to three 1x IP microphone arrays
• Up to 4x Clink2 Microphones or
• SoundStructure (using Poly Microphone IP Adapter)
• 1x HDMI
• 1x 3.5 mm stereo line in
• AUDIO OUTPUT: 1x HDMI, 1x 3.5 mm stereo line out
• OTHER INTERFACES: 3x USB 3.0
• 1x USB-C1
• 1x RS-232, 8 pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11a/b/g/n/ac (MIMO) Multichannel
• Concurrency
• ELECTRICAL: Auto sensing power supply
• Typical operating voltage/power
• 37VA 120V 60 Hz
• 37VA 230V 50/60 Hz
• Typical BTU/h: 65
• ENVIRONMENTAL SPECIFICATION: Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non operating temperature: -40 to 70 °C
• Non operating humidity (non condensing):
• 5 to 95%
• Maximum altitude: 10,000 ft
• AUDIO STANDARDS AND PROTOCOLS:
• 22 kHz bandwidth with Polycom Siren 22
• technology, G.719 (M- Mode)
• 14 kHz bandwidth with Polycom Siren 14
• technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728
• G.729A
• NETWORK: IPv4 support
• 1x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR)
• technology
• Dynamic bandwidth allocation
• Reconfigurable MTU size
• RS232 with REST and CLI API support
• Web Proxy support—Basic, Digest and NTLM
• simple Certificate Enrollment Protocol
• (SCEP)
• SECURITY: Media encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web
• interface and APIs
• PKI/Certificate Management:
• TLS 1.2, 1.1, 1.0
• Self-signed and CA-signed certificate
• support
• CRL and OCSP-based certificate revocation
• checking
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• Active directory external authentication
• PHYSICAL CHARACTERISTICS: G7500 base box
• 13.75 L x 1.5 H x 5.5 D
• 2.1 lbs
• WARRANTY: 1 year return to factory parts and labor

• Power supply: 110 V–240 V AC, 6 A max
• Operating temperature: 0–40 °C
• Operating humidity: 15%–80%
• non condensing
• Enclosure: Steel frame with steel and
• MDF covers
• DIMENSIONS:
• Medialign 65: (H) 1952 x (W) 1459 x (D) 161
• Medialign 65D: (H) 1952 x (W) 2928 x (D) 161
• Medialign 75: (H) 2222 x (W) 1735 x (D) 195
• Medialign 75D: (H) 2222 x (W) 3470 x (D) 195
• Medialign 86: (H) 2300 x (W) 1896 x (D) 215
• Medialign 86D: (H) 2300 x (W) 3863 x (D) 215
• PRODUCT WEIGHT:
• Medialign 65: 124.9 kg (275.4 lbs)
• Medialign 65D: 223.8 kg (493.4 lbs)
• Medialign 75: 158.7 kg (349.9 lbs)
• Medialign 75D: 294.9 kg (650.2 lbs)
• Medialign 86: 154.7 kg (341.0 lbs)
• Medialign 86D: 289.7 kg (638.7 lbs)
• POLY G7500 CODEC: Video standards and protocols
• H.264 AVC, H.264 High Profile, H.264
• SVC, H.265, RTV, H.239
• H.264 video error concealment
• VIDEO INPUT: 1x HDCI, 1x HDMI, 1x USB1
• VIDEO OUT: 2x HDMI, Touch Display Compatible
• PEOPLE VIDEO RESOLUTION: 4K, 30 fps (TX and RX) from 2048 Kbps
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 Kbps
• QCIF (176 x 144) from 64 Kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• CONTENT VIDEO RESOLUTION:
• Input: UHD (3840 x 2160)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x 720p)
• XGA (1024 x 768)
• SVGA (800 x 600)
• Output: UHD (3840 x 2160)
• WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• Content frame rate: 5–60 fps (up to 4K resolution at 15 fps in call)
• CONTENT SHARING: Polycom Content App support
• Apple AirPlay, Miracast
• 1x HDMI input
• AUDIO INPUT: Up to three IP Microphone Arrays
• Up to four Clink2 Microphones (using Poly
• Microphone IP Adapter)
• 1x HDMI
• 1x 3.5 mm stereo line in
• Active Directory external authentication
• Electrical
• Auto sensing power supply
• Typical operating voltage/power:
• 60 VA 120 V 50 Hz .49 PF
• 60 VA 120 V 60 Hz .49 PF
• 74 VA 200 V 50 Hz .40 PF
• 73 VA 200 V 60 Hz .40 PF
• 87 VA 260 V 50 Hz .34 PF
• 86 VA 260 V 60 Hz .36 PF
• AUDIO OUTPUT: 1x HDMI, 1x 3.5 mm stereo line out
• OTHER INTERFACES: 3x USB 3.0, 1x USB-C1
• 1x RS-232, 8-pin mini-DIN
• Bluetooth 5.0
• WiFi 802.11 a/b/g/n/ac (MIMO)
• Multichannel Concurrency
• AUDIO STANDARDS AND PROTOCOLS
• 22 kHz bandwidth with Polycom Siren 22
• technology, G.719 (M- Mode)
• 14 kHz bandwidth with Polycom Siren 14
• technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• NETWORK: IPv4 support
• 1x 10/100/1G Ethernet
• Auto-MDIX
• 3x 10/100/1G LLN supporting POE+/PSE
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Dynamic Bandwidth Allocation
• Reconfigurable MTU size
• RS232 with REST and CLI API support
• Web Proxy support: Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
• Instant adaptation echo cancellation
• Audio error concealment: Poly Siren Lost
• Packet Recovery (LPR) technology
• Poly StereoSurround technology
• SECURITY: Media Encryption (H.323, SIP): AES-128, AES-256
• H.235.6 support
• Authenticated access to admin menus, web interface and APIs
• PKI/Certificate Management:
• TLS 1.2, 1.1, 1.0
• Self-signed and CA-signed certificate support
• CRL and OCSP-based certificate
• revocation checking
• Local account password policy configuration
• Security profiles
• Local account and login port lockout
• Secure defaults
• Remote logging with support for TLS
• POLY CONSTANT CLARITY TECHNOLOGY
• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Poly NoiseBlock technology
• Poly Acoustic Fence
• Live music mode
• OTHER SUPPORTED STANDARDS
• H224/H.281, H.323 Annex Q, H.225, H.245
• H.241, H.239, H.243, H.460
• BFCP (RFC 4582)
• TIP
• Network: IPv4 and IPv6 support
• 1x 10/100/1G Ethernet
• Auto-MDIX
• H.323 and/or SIP up to 6 Mbps
• Poly Siren Lost Packet Recovery (LPR) technology

• Collaboration can take place anywhere with this flexible mobile solution
• Video display choices
• 22 dual displays
• No monitors
• Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/Polycom People+Content
• H.263 & H.264 video error concealment
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 kbps
• QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• Video Input: 1 x Polycom EagleEye HD
• Camera (HDCI): 1 x HDMI 1.3, 1 x VGA
• Video out: 2 x HDMI 1.3
• Content video resolution
• Input: WUXGA (1920 x 1200)
• HD (1920 x 1080i), HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x720p), XGA (1024 x 768)
• SVGA (800 x 600)
• Content frame rate: 5–60 fps (up to
• 1080p resolution at 60 fps)
• Content sharing: People+Content and Pano App
• Audio standards & protocols
• Polycom StereoSurround technology
• 22 kHz bandwidth with Polycom
• Siren 22 technology
• 14 kHz bandwidth with Polycom
• Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• Automatic gain control
• Automatic noise suppression
• Instant adaptation echo cancellation
• Audio error concealment
• Keyboard noise reduction
• M Mode for music and
• medical applications
• Other ITU-supported standards
• H.224/H.281 far-end camera control
• H.323 Annex Q far-end camera control
• H.225, H.245, H.241
• H.239 dual stream
• H.460 NAT/firewall traversal
• Cart: Structural support for two (2) 22 displays
• Tray that can be mounted on either side of the cart and can support a laptop or other device
• Ability to mount a wireless bridge on the back
• AC powered only unless the battery pack and power supply are purchased
• Ability to add a lock to the drawer (user supplied)
• 2 locking casters
• Basket on back for additional storage
• Hooks on the top/side of the cart for peripheral cable management
• I/O panel on the cart with access to the (2) USB ports on the codec, VGA, HDMI, and audio
• Options: Powered Speakers (enhanced audio) and housing
• Power supply, battery, and enclosure for easy field installation on the base of the cart
• 1080p license, providing up to 1080p60 for people and content
• Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)

• Easily expand the visual learning experience across multiple classrooms without expanding your budget
• Video Display: 55 LED flat panel
• Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/Polycom People+Content
• H.263 & H.264 video error concealment
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 kbps
• QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• Video Input: 1 x EagleEye HD camera (HDCI)
• 1 x HDMI 1.3, 1 x VGA
• Video Output: 2 x HDMI 1.3
• Content video resolution
• Input: WUXGA (1920 x 1200)
• HD (1920 x 1080i), HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x720p), XGA (1024 x 768)
• SVGA (800 x 600)
• Audio standards & protocols
• Polycom StereoSurround technology
• 22 kHz bandwidth with Polycom
• Siren 22 technology
• 14 kHz bandwidth with Polycom
• Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• Automatic gain control
• Automatic noise suppression
• Instant adaptation echo cancellation
• Audio error concealment
• Keyboard noise reduction
• Live Polycom MusicMode technology
• Other ITU-supported standards
• H.224/H.281 far end camera control
• H.323 Annex Q far end camera control
• H.225, H.245, H.241
• H.239 dual stream
• H.460 NAT/firewall traversal
• Cart: Structural support for the included 55 display
• Adjustable height to accommodate user need, center of display height: 46, 50 or 54
• 2 x powered speakers (25W LF & 16W HF per speaker) with integrated high efficiency digital amplifier
• Sturdy side handles allow cart to be safely and easily moved and maneuvered
• 4 locking heavy duty swivel casters
• Integral cable runs from display top to base for hiding unsightly cables
• Integrated basket with cover to hold microphone/cable, IR remote
• Rear cover to neatly hide codec, power supply, and power bar behind display
• Options: 1080p license, providing up to 1080p60 for people and content
• Multipoint license for up to 6 sites (SDCP), or 4 sites (HDCP)
• Physical size: 49 W x 74 H x 33.25 D (with display and camera)
• Weight: 144 lbs

• Video Display: 24 LCD, EagleEye Acoustic with built in speakers
• Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/Polycom People+Content
• H.263 & H.264 video error concealment
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 kbps
• QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps, w448 from 384 Kbps and w576p from 512 Kbps
• Exterior Housing: 14 gauge steel
• High impact ¼ PETG Polycarbonate front panel for display and camera
• Exterior grade powder coat paint
• Sloping top, louvers and channels to prevent fluids from entering housing
• Pin-Torx security screws to access interior, with hinged front panel for easy service
• High impact handset with 36 armoured cable (left or right side mounting or none)
• Vandal resistant volume up/down buttons mounted to handset plate
• Separate wall mounting bracket to facilitate installation
• Choice of camera front panel with or without holes for hands free operation if desired
• Intelligent activation module
• Additional external control features
• available for system integrators:
• Master call hang up
• Mute microphone
• Call directory preset (up to 4)
• System in call indicator
• Switch to PC input
• Modes of operation
• Handset only mode (Audio through handset only with volume control)
• Auto answer mode: call comes in, video is auto answered, audio is muted until handset picked up
• Standard answer mode: call is only answered when handset is picked up
• Auto dial mode: system auto dials a preset when the handset is lifted
• Preset is labeled “auto dial
• Hang up call: system hangs up call
• when handset is placed on hook, with an built-in 3 second delay in case of accidental user error
• Hands free mode (No handset therefore no volume control)
• System auto answers only
• No other features
• Call is disconnected by far end hanging up call
• Audio through speakers only
• When using hands-free mode in larger and/ or noisy areas the use of external speakers may be necessary
• Both handset and hands-free mode (Includes volume control and auto dial features)
• System auto answers with audio through speakers
• Pick up handset and audio goes to handset only (privacy)
• Hang up handset and audio returns to speakers
• Feature needs pre-defining upon installation
• Options: 1080p license, providing up to 1080p60 for people and content, RTV
• Environmental specifications
• Operating temperature: 0–40°C
• Operating humidity: 15–80%
• Non operating temperature: -20–60°C
• Non operating humidity (non-condensing): 5–95%
• Maximum altitude: 10000 ft
• Power rating
• Electrical: Auto sensing power supply
• Typical operating voltage/power:
• 36W or 72VA typical 120V 60Hz
• 18W or 72VA 230V 50/60Hz
• Physical size and weight
• 23 ½ W x 19 H x 6 5/8 D without handset
• 27 W x 19 H x 6 5/8 D with handset
• 55 lbs fully assembled (including codec, camera and IR remote inside housing)

• Dimensions: Table Console
• Footprint (W x D): 369 x 325 mm
• Height: 348 mm (privacy cap closed)
• 401 mm (privacy cap extended)
• Weight: 2.3 kg (exclusive of cables)
• Power Data Box: Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
• Weight: 2.9 kg
• Shipping: Size (W x H x D): 520 x 430 x 430 mm
• Weight: 9.07 kg
• Power
• Power consumption: 110 watts, typical
• Universal power supply 100–240 V AC,50–60 Hz
• Video performance:
• Panoramic video resolutions supported: 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
• 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
• 1056 x 144 pixels
• Active speaker video resolutions supported
• HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
• HD 720: 1280 x 720 pixels
• VGA: 640 x 480 pixels
• CIF: 352 x 288 pixels
• Frame rate for panoramic and active speaker video, maximum
• 30 frames per second with 60 Hz AC power
• 25 frames per second with 50 Hz AC power
• Maximum frame rates with systems
• prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
• Audio performance: Console Loudspeaker
• Frequency response: 160 Hz–22 kHz
• Volume: adjustable to 88 dBA SPL
• (peak) volume at 0.5 meters
• Console microphones: 3 microphones for omnidirectional coverage
• Frequency response: 160 Hz–22 kHz
• Full Duplex (Class 1) with noise suppression
• User interface: 3 mute buttons with mute/in call indication lamps
• Camera on/off indication lamp
• Captive privacy cap with integrated
• on/off switch for client synch
• Console connectivity
• Proprietary system port for connection to Power Data Box
• USB 3.0 Type A port for proprietary
• connection to Power Data Box
• USB 3.0 Type B port for connection to PC
• USB 2.0 Type A port for diagnostics/ software update
• 2 extension microphone ports
• Power data box connectivity
• Proprietary system port for connection to console
• USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
• USB 2.0 Type A for diagnostics/software update
• Ethernet: RJ-45 10/100/1000 Mbit
• Audio RCA jacks (reserved for future use)
• AC power input
• Physical security: Kensington-style lock slot on Console and Power Data Box
• Extension microphones (optional accessory)
• Frequency response: 160 Hz–22 kHz
• Mute button and indicator lamp
• Regulatory compliance
• Safety
• UL 60950 1
• EN 60950 1
• CSA C22.2 60950 1
• IEC 60950 1
• AS/NZS 60950 1
• GB4943-2011 (China)
• KCC approval (Korea)
• EMC
• CISPR 22 Class B (FCC, ICES, AS/NZS)
• VCCI Class B
• EN 55022 Class B
• EN 55024
• GB9254:2008, YD/T993-1998 (China)
• KCC approval (Korea)
• ANATEL (Brazil)
• Environmental requirements
• Operating temperature: 0–40ºC
• Relative humidity: 15–85% (non-condensing)
• Storage temperature: -40–60ºC
• Recommended room conditions
• Room reverberation time: RT60 <0.600 seconds
• Ambient noise level: <50 dBA SPL
• Optimal lighting conditions: 300 lux, with a single lighting temperature (no mixed lighting)
• Polycom CX5100 ships with Tabletop console with integrated 360º camera
• Power data box with stand
• Quick setup card
• Cables
• Proprietary system cable
• USB 3.0 Type A Type A cable
• USB 3.0 Type A Type B cable
• Ethernet cable
• AC power cord with local plug
• Optional accessories: Extension microphone kit with pair of microphones and cables
• Cable length is 25 ft (7.6 meters)
• Warranty: 1 Year Warranty

• Dimensions: Table Console
• Footprint (W x D): 369 x 325 mm
• Height: 348 mm (privacy cap closed)
• 401 mm (privacy cap extended)
• Weight: 2.44 kg (exclusive of cables)
• Power Data Box
• Size (W x H x D): 209.5 x 300 x 56 mm (excluding stand)
• Weight: 2.9 kg
• Shipping
• Size (W x H x D): 520 x 430 x 430 mm
• Weight: 9.29 kg
• Power
• Power consumption: 110 watts, typical
• Universal power supply 100–240 V AC, 50–60 Hz
• Video performance
• Panoramic video resolutions supported:
• 1920 x 288 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
• 1280 x 192 pixels (requires USB 3.0 and Lync 2013 or Skype for Business)
• 1056 x 144 pixels
• Active speaker video
• resolutions supported
• HD 1080: 1920 x 1080 pixels (requires USB 3.0 & Lync 2013 or Skype for Business)
• HD 720: 1280 x 720 pixels
• VGA: 640 x 480 pixels
• CIF: 352 x 288 pixels
• Frame rate for panoramic and active speaker video, maximum
• 30 frames per second with 60 Hz AC power
• 25 frames per second with 50 Hz AC power
• Maximum frame rates with systems
• prior to Lync 2013 will be limited to 15 fps (12.5 50 Hz)
• Audio performance: Console Loudspeaker
• Frequency response: 160 Hz–22 kHz
• Volume: adjustable to 88 dBA SPL (peak) volume at 0.5 meters
• Console microphones
• 3 microphones for omnidirectional coverage
• Frequency response: 160 Hz–22 kHz
• EMC: CISPR 22 Class B (FCC, ICES, AS/NZS)
• VCCI Class B
• EN 55022 Class B
• EN 55024
• GB9254:2008, YD/T993-1998 (China)
• KCC approval (Korea)
• ANATEL (Brazil)
• Environmental requirements: Operating temperature: 0–40ºC
• Relative humidity: 15–85% (non-condensing)
• Storage temperature: -40–60ºC
• Recommended room conditions
• Telephony Performance
• Full Duplex (Class 1) with noise suppression
• Comfort noise fill
• DTMF tone generation/DTMF
• event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported codecs are G.711 (A-law and µ-law), G.729AB, G.722, G.722.1, G.722.1C, G.719
• Call handling features: Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three way conferencing
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function
• Lync client device synchronization
• Lync USB call control for Answer, Reject
• End Call, Hold, Resume and Swap
• Protocol supportNetwork and provisioning
• IP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP/TFTP/HTTP/HTTPS serverbased
• central provisioning for mass deployments
• Provisioning server redundancy supported
• Web portal for individual unit configuration
• QoS Support IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT)
• support static
• RTCP support (RFC 1889)
• Event logging
• Local digit map
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Convenient volume adjustment keys
• Field upgradeable
• Security: Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Room reverberation time: RT60 <0.600 seconds
• Ambient noise level: <50 dBA SPL
• Optimal lighting conditions: 300 lux, with a single lighting temperature (no mixed lighting)
• Warranty: 1 Year Warranty
• Polycom CX5500 ships with Tabletop console with integrated 360º camera
• Power data box with stand
• Quick setup card
• Cables
• Password login
• Support for URL syntax with password for boot server
• HTTPS secure provisioning Support for signed software executables
• User interface
• 3 mute buttons with mute/in call
• indication lamps
• Camera on/off indication lamp
• Captive privacy cap with integrated on/ off switch for client synch
• Gesture based, multi touch capable
• capacitive touchscreen for voice calls
• 4.3in LCD (480 x 272 pixels) resolution
• User configurable contact directory and call history (missed, placed, and received)
• Customizable call progress tones
• Wave file support for call progress tones
• Console connectivity: Proprietary system port for connection to Power Data Box
• USB 3.0 Type A port for proprietary
• connection to Power Data Box
• USB 3.0 Type B port for connection to PC
• USB 2.0 Type A port for diagnostics/ software update
• 2 extension microphone ports
• Power data box connectivity
• Proprietary system port for connection to console
• USB 3.0 Type A interface for proprietary connection to console or to Lync appliance
• USB 2.0 Type A for diagnostics/software update
• Ethernet: RJ-45 10/100/1000 Mbit
• Audio RCA jacks (reserved for future use)
• AC power input
• Physical security: Kensington-style lock slot on Console and Power Data Box
• Extension microphones (optional accessory)
• Frequency response: 160 Hz–22 kHz
• Mute button and indicator lamp
• Regulatory compliance
• Safety
• UL 60950 1
• EN 60950 1
• CSA C22.2 60950 1
• IEC 60950 1
• AS/NZS 60950 1
• GB4943-2011 (China)
• KCC approval (Korea)
• Proprietary system cable
• USB 3.0 Type A Type A cable
• USB 3.0 Type A Type B cable
• Ethernet cable
• AC power cord with local plug
• Optional accessories: Extension microphone kit with pair of microphones and cables
• Cable length is 25 ft (7.6 meters)

• Package includes: RealPresence Group 700 codec
• RealPresence Group Microphone Array
• Polycom EagleEye IV camera
• Cable bundle
• Remote control
• Rack (19) mounting ears
• Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/Polycom People+Content
• H.263 & H.264 Video error concealment
• Video Input: 2 x HDCI
• 3 x HDMI 1.4
• 1 x YPbPr component
• 1 x dual RCA composite
• 1 x VGA
• Video Output: 3 x HDMI 1.3, 3 x VGA
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 Kbps
• QCIF (176 x 144) from 64 Kbps
• w288p from 128 Kbps
• w448p from 384 Kbps
• w576p from 512 Kbps
• Network: IPv4 and IPv6 support
• 2 x 10/100/1G Ethernet Switch
• Auto MDIX
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Reconfigurable MTU size
• RS232 with API support
• Web Proxy support Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
• Interoperability
• Microsoft Lync and Skype for Business
• certification, including Skype for Business Online
• IBM Sametime support
• Zoom Meetings interoperability
• BlueJeans Cloud Services Interoperability
• Microsoft Office Communications
• Server integration
• Microsoft ICE support
• Security: US DoD UC APL Certified (see the Polycom US Federal Government Accreditation site for details)
• Media Encryption (H.323, SIP): AES-128, AES-256
• Content video resolution
• Input: HD (1920 x 1080i)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• (1024 x 768)
• SVGA (800 x 600)
• Output: WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• VGA (640 x 480)
• Content Frame Rate: 5–60 fps (up to 1080p resolution at 60 fps)
• Content Sharing: Polycom People+Content IP and Polycom Pano app support
• VbSS content in Microsoft environments
• Audio input: 2 x RealPresence Group microphone
• array input ports (supporting a total of 4 microphone arrays)
• USB headset support
• 2 x HDCI (camera)
• 3 x HDMI
• 2 x RCA line in
• H.235.6 support
• Authenticated access to admin menus, web
• interface, and telnet API
• FIPS 140-2 Validated Cryptography (Validation Certificate 1747)
• PKI/Certificate Management:
• SSL 3.0, TLS 1.0, 1.1, 1.2
• Self-signed and CA signed
• certificate support
• CRL and OCSP-based certificate
• revocation checking
• Network intrusion detection system
• Local account password policy
• configuration
• Security profiles
• Web UI/SNMP Whitelists
• Local account and login port lockout
• Options: Polycom Pano
• Polycom RealPresence Touch
• Polycom EagleEye Producer
• Polycom EagleEye Director II
• Polycom SoundStation IP 7000 conference
• phone integration
• Polycom SoundStructure integration
• Software options: Skype for Business and Lync Integration
• (including Skype for Business Online
• TIP interoperability
• Audio output: 1 x HDMI (to in-room audio system)
• 1 x HDMI (to conference recording device)
• USB headset support
• 1 x RCA pair stereo line out
• Other interfaces: 2 x USB 3.0 (back)
• 1 x USB 2.0 (front)
• 1 x RS-232 DB9
• Audio standards and protocols
• 22 kHz bandwidth with Polycom
• Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
• 14 kHz bandwidth with Polycom
• Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• Polycom Constant Clarity technology
• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Polycom NoiseBlock technology
• Polycom Acoustic Fence technology
• Live music mode
• Instant adaptation echo cancellation
• Audio error concealment
• Polycom Siren Lost Packet Recovery
• technology
• Polycom StereoSurround technology
• Active Lip Synchronization
• Other supported standards
• H224/H.281, H.323 Annex Q, H.225
• H.245, H.241, H.239, H.243, H.460
• BFCP (RFC 4582)
• TIP
• 1080p license, providing up to 1080p60 for people and content
• Multipoint license for up to 8 sites at 720p30, or 4 sites at 1080p30
• Electrical: Auto sensing power supply
• Typical operating voltage/power
• 85VA 120V 60 Hz
• 85VA 230V 50/60 Hz
• Typical BTU/h: 280
• Environmental specification
• Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non operating temperature: -40 to 70 °C
• Non operating humidity (non condensing): 5 to 95%
• Maximum altitude: 10,000 ft
• Physical characteristics
• RealPresence Group 700 base box
• 17.2 H x 2.6 W x 12.8 D
• 11.45 lbs
• Warranty: 1 year return to factory parts and labor

• Package includes: RealPresence Group 500 codec
• Cable bundle
• Remote control
• EagleEye IV camera and RealPresence
• Group Microphone Array, or EagleEye
• Acoustic camera
• Video standards and protocols: H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/Polycom People+Content
• H.263 & H.264 video error concealment
• Video Input: 1 x HDCI, 1 x HDMI 1.3, 1 x VGA
• Video Output: 2 x HDMI 1.3
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 kbps
• QSIF (176 x 120), QCIF (176 x 144) from 64 kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• Reconfigurable MTU size
• RS232 with API support
• Microsoft Office Communications
• Server integration
• Microsoft ICE support
• Microsoft Lync and Skype for Business support
• IBM Sametime support
• Content video resolution
• Input: HD (1920 x 1080i), HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x720p), XGA (1024 x 768)
• SVGA (800 x 600)
• Output: WUXGA (1920 x 1200)
• HD (1920 x 1080)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720)
• XGA (1024 x 768)
• VGA (640 x 480)
• Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
• Content Sharing: People+Content and People+Content IP
• Audio input: 1 x RealPresence Group microphone
• array input port (supporting a total of 4 microphone arrays)
• USB headset support
• 1 x HDCI (camera)
• 1 x HDMI
• 1 x 3.5 mm stereo line in
• Audio output: 1 x HDMI
• USB headset support
• 1 x 3.5 mm stereo line-out
• Network intrusion detection system
• Local account password
• policy configuration
• Security profiles
• Web UI / SNMP Whitelists
• Local account and login port lockout
• Options: Polycom RealPresence Touch
• Polycom EagleEye Producer
• Polycom EagleEye Director II
• Polycom SoundStation IP 7000
• conference phone integration
• Polycom SoundStructure integration through a digital interface
• Other interfaces: 2 x USB 2.0, 1 x RS-232, 8 pin mini DIN
• Audio standards and protocols
• 22 kHz bandwidth with Polycom
• Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
• 14 kHz bandwidth with Polycom
• Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• Polycom Constant Clarity technology
• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Polycom NoiseBlock technology
• Polycom Acoustic Fence
• Live music mode
• Instant adaptation echo cancellation
• Audio error concealment
• Polycom Siren Lost Packet Recovery (LPR) technology
• Polycom StereoSurround technology
• Other supported standards: H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
• BFCP (RFC 4582), TIP
• Network: IPv4 and IPv6 support
• 1 x 10/100/1G Ethernet
• Auto MDIX
• H.323 and/or SIP up to 6 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Electrical: Auto sensing power supply
• Typical operating voltage/power
• 37VA 120V 60 Hz
• 37VA 230V 50/6 0Hz
• Typical BTU/h: 65
• Environmental specification
• Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non operating temperature: -40 to 70 °C
• Non operating humidity (non-condensing): 5 to 95%
• Maximum altitude: 10000 ft
• Physical characteristics: RealPresence Group 500 base box
• 11.3 H x 1.2 W x 4.8 D
• 2.45 lbs
• Warranty: 1 year return to factory parts and labor

• Packages include: RealPresence Group 310 codec
• Cable bundle
• Remote control
• EagleEye IV 4x camera and RealPresence
• Group Microphone Array, or EagleEye
• Acoustic camera
• Video standards and protocols
• H.261, H.263, H.264 AVC, H.264 High
• Profile, H.264 SVC, RTV
• H.239/BFCP for content sharing
• H.263 & H.264 Video error concealment
• Video In 1 x HDCI, 1 x HDMI 1.3, 1 x VGA
• Video Output: 2 x HDMI 1.3
• One HDMI output enabled standard, second output enabled with optional license key
• People video resolution
• 1080p, 60 fps from 1740 Kbps
• 1080p, 30 fps from 1024 Kbps
• 720p, 60 fps from 832 Kbps
• 720p, 30 fps from 512 Kbps
• 4SIF/4CIF, 60 fps from 512 Kbps
• 4SIF/4CIF, 30 fps from 128 Kbps
• SIF (352 x 240), CIF (352 x 288) from 64 Kbps
• QCIF (176 x 144) from 64 Kbps
• w288p from 128 Kbps
• w448 from 384 Kbps
• w576p from 512 Kbps
• Content video resolution
• Input: HD (1920 x 1080i), HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• UXGA (1600 x 1200)
• SXGA (1280 x 1024)
• WXGA (1280 x 768)
• HD (1280 x720p), XGA (1024 x 768)
• SVGA (800 x 600)
• Output: HD (1920 x 1080i)
• HD (1920 x 1080p)
• WSXGA+ (1680 x 1050)
• SXGA+ (1400 x 1050)
• SXGA (1280 x 1024)
• HD (1280 x 720p)
• XGA (1024 x 768)
• VGA (640 x 480)
• Content frame rate: 5–60 fps (up to 1080p resolution at 60 fps)
• Content Sharing: Polycom People+Content IP and
• Polycom Pano app support
• VbSS content in Microsoft environments
• PKI/Certificate Management: SSL 3.0, TLS 1.0, 1.1, 1.2
• Self-signed and CA-signed
• certificate support
• CRL and OCSP based certificate
• revocation checking
• Network intrusion detection system
• Local account password policy
• configuration
• Security profiles
• Web UI/SNMP Whitelists
• Local account and login port lockout
• API via Telnet and secure SSH interfaces
• Options: Polycom Pano
• Polycom RealPresence Touch
• Polycom EagleEye Cube camera
• Polycom EagleEye Producer
• Polycom EagleEye Director II
• Polycom SoundStation IP 7000
• conference phone integration
• Polycom SoundStructure integration through a digital interface
• Audio Input: 1 x RealPresence Group microphone
• array input port (supporting a total of 2 microphone arrays)
• USB headset support
• 1 x HDCI (camera)
• 1 x HDMI
• 1 x 3.5mm stereo line in
• Audio output: 1 x HDMI
• USB headset support
• 1 x 3.5mm stereo line-out
• Other interfaces: 2 x USB 2.0
• 1 x RS-232, 8-pin mini DIN
• Audio standards and protocols
• 22 kHz bandwidth with Polycom
• Siren 22 technology, AAC-LD (TIP calls), G.719 (Live Music Mode)
• 14 kHz bandwidth with Polycom
• Siren 14 technology, G.722.1 Annex C
• 7 kHz bandwidth with G.722, G.722.1
• 3.4 kHz bandwidth with G.711, G.728, G.729A
• Polycom Constant Clarity technology
• Automatic gain control
• Automatic noise suppression
• Keyboard noise reduction
• Polycom NoiseBlock technology
• Live music mode
• Instant adaptation echo cancellation
• Audio error concealment
• Polycom Siren Lost Packet Recovery technology
• Polycom StereoSurround technology
• Active Lip Synchronization
• Other supported standards
• H224/H.281, H.323 Annex Q, H.225, H.245, H.241, H.239, H.243, H.460
• BFCP (RFC 4582), TIP
• Network: IPv4 and IPv6 support
• 1 x 10/100/1G Ethernet
• Auto MDIX
• H.323 and/or SIP up to 3 Mbps
• Polycom Lost Packet Recovery (LPR) technology
• Reconfigurable MTU size
• RS232 with API support
• Web Proxy support Basic, Digest and NTLM
• Simple Certificate Enrollment Protocol (SCEP)
• Interoperability
• Microsoft Lync and Skype for Business
• certification, including Skype for Business
• Online / Office 365
• IBM Sametime support
• Zoom Meetings interoperability
• BlueJeans Cloud Services Interoperability
• Microsoft Office Communications
• Server integration
• Microsoft ICE support
• Security
• Media Encryption (H.323, SIP): AES-128, AES-256
• Authenticated access to admin menus, web interface, and telnet API
• H.235.6 support
• FIPS 140 2 Validated Cryptography (Validation Certificate 1747)
• Software options: Skype for Business and Lync Integration (including Skype for Business Online / Office 365)
• TIP interoperability
• Enhanced display license for 2nd monitor and touch monitor support
• 1080p license, providing up to 1080p60 for people and content
• Electrical: Auto sensing power supply
• Typical operating voltage/power
• 37VA 120V 60Hz
• 37VA 230V 50/60Hz
• Typical BTU/h: 65
• Environmental specification
• Operating temperature: 0 to 40 °C
• Operating humidity: 15 to 80%
• Non operating temperature: -40 to 70 °C
• Non operating humidity (non condensing): 5 to 95%
• Maximum altitude: 10000 ft
• Physical characteristics: RealPresence Group 310 base box
• 11.3 H x 1.2 W x 4.8 D
• 2.45 lbs
• Warranty: 1 year Warranty

• UC Zone Wireless: 981-000915
• Type: Omni-directional dual MEMS mic array
• Frequency response: 85 20KHz 3dB ECM mic freq resp
• Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
• Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
• USB-A to C charging cable: 130 cm Available only for Zone Wireless
• Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices, Qi Wireless charging enabled 3Qi Wireless charger sold separately
• Warranty: 2 Years Warranty

• UC Zone Wireless Plus: 981-000808
• Type: Omni-directional dual MEMS mic array
• Frequency response: 85 20KHz 3dB ECM mic freq resp
• Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
• Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
• Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices
• Warranty: 2 Years Warranty

• MSFT Zone Wireless: 981-000855
• Type: Omni-directional dual MEMS mic array
• Frequency response: 85 20KHz 3dB ECM mic freq resp
• Battery life talk time: 14 Hrs ANC on 15 hrs ANC Off
• Battery life listening time: 14 Hrs ANC on 16 hrs ANC Off
• Connectivity: Works with Windows Mac or Chrome based computer via USB-C USB-A Bluetooth and iOS or Android Bluetooth enabled devices
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part: 960-001217
• Speaker: 1 Rally
• Mic Pod: 1 Rally
• Power Supplies: 2 Power
• Cable: USB C to C cable, USB A to B cable, 2 HDMI A to A cable
• Connectivity: Rally Camera, CAT6A, Display Hub, Table Hub, Documentation, Remote Control
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part Number: 960-001225
• Speaker: 2 Rally Plus
• Mic Pod: 2 Rally Plus
• Power Supplies: 2 Power
• Cable: USB C to C cable, USB A to B cable, 2 HDMI A to A cable
• Connectivity: Rally Camera, CAT6A, Display Hub, Table Hub, Documentation, Remote Control
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part Number: 960-001230
• Product Type: Speaker
• Speaker volume: 95 dB SPL 1 W, 100 dB SPL 7.5 W, both +/-2 dB
• Distortion: 200 Hz–300 Hz <2.5%, 300 Hz 10 kHz < 1% 7.5 W
• Speaker Sampling Rate: 48KHz
• Dimensions: Height: 103 mm, Width: 449 mm, Depth: 80 mm
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part Number: 989-000430
• Frequency response: 90Hz – 16kHz
• Microphone data rate output: 48 kHz
• Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
• Interfaces Output: 2.95 m 12-pin captive cable
• Interfaces Input: 12-pin interface to daisy-chain Mic Pods or connect to Rally Mic Pod Hub
• Dimensions: Height: 21 mm, Width: 102 mm, Depth: 102 mm
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part Number: 939-001647
• Product Type: Mic Pod Hub
• Color: Black
• Dimensions: Height: 0.6, Width: 4, Depth: 4
• Warranty: 2 Years Warranty

• Brand: Logitech
• Part Number: 939-001644
• Product Type: mounting kit
• Color: Black
• Warranty: 2 Years Warranty

• Part: 960-001054
• Camera:
• Pan: +/- 90°
• Tilt: +35° / -45
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2°
• Camera: Full HD 1080p 30fps
• Remote Control: IR 8.5 m range, CR2032 battery (included)
• Speakerphone: Full-duplex performance
• Microphones:
• Range: 6 m
• Frequency response: 100Hz – 11KHz
• Power cable: 3 m
• Warranty: 2 Years Warranty
