QNAP TS 251D 2 Bay NAS Storage

Intel Dual-core NAS with AI Recognition Acceleration
CPU: Intel Celeron J4005 dual core 2.0 GHz processor (burst up to 2.7 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 600
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding: Yes
System Memory: 4GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory: 8GB (2 x 4GB)
Memory Slot: 2 x SO-DIMM DDR4
For dual DIMM configuration, you must use a pair of identical DDR4 modules
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 2 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a QM2 PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 1 (Expandable with an optional PCIe adapter)
5 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port: Expandable with an optional PCIe adapter
Jumbo Frame: Yes
PCIe Slot: 1(Slot 1: PCIe Gen 2 x4)
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 2.0 port: 3
USB 3.2 Gen 1 port: 2
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe expansion card
IR Sensor: (Optional QNAP RM IR004 remote control)
HDMI Output: 1, HDMI 2.0
Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-2
Buttons: Power, USB copy, Reset
Dimensions (HxWxD): 168 × 105 × 226 mm
Weight (Net): 1.48 kg
Weight (Gross): 2.58 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: External Power Adapter, 65W, 100-240V
Power Consumption: HDD Sleep Mode: 8.08 W
Power Consumption: Operating Mode, Typical 15.25 W
Fan: 1 x 70mm
Sound Level : 16.7 db(A)
System Warning: Buzzer
Kensington Security Slot: Yes
Max Number of Concurrent Connections (CIFS): 800

View Specification

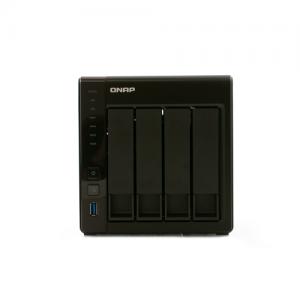

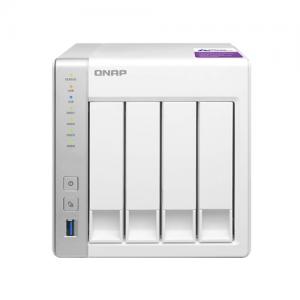

Qnap TS 451 4 Bay Storage

CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics
Floating Point Unit: Yes
Hardware accelerated Transcoding: up to 1080P
System Memory: 2 GB SO-DIMM DDR3L (1 x 2 GB)
Maximum Memory: 8 GB (2 x 4GB)
Memory Slot: 2 x SO-DIMM DDR3L (For dual DIMM configurations, you must use a pair of identical DDR3L modules.)
Flash Memory: 512MB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s (The system is shipped without HDD.)
Drive Compatibility
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 2
Jumbo Frame: Yes
USB 2.0 port: 2
USB 3.2 Gen 1 port: 2
IR Sensor: (RM-IR002 & MCE)
HDMI Output: 1, (up to 1080p)
Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-4
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 177 × 180 × 235 mm
Weight (Net): 3kg
Weight (Gross): 4.3 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode : 15.78 W
Power Consumption: Operating Mode, Typical 33.88 W
Fan: 1 x 120mm, 12VDC
Sound Level: 16.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 800

View Specification

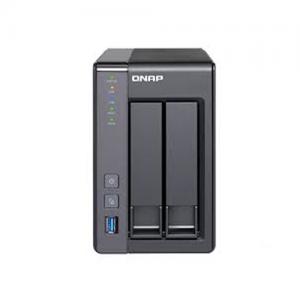

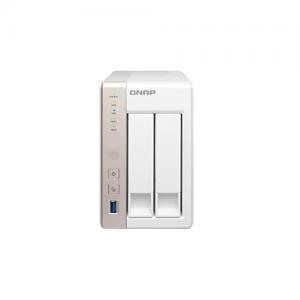

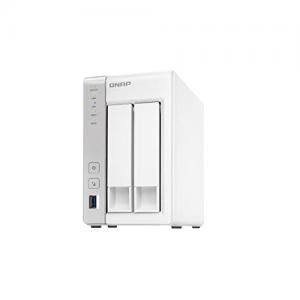

Qnap TS 251 2 Bay Storage

CPU: Intel Celeron J1900 quad core 2.0 GHz processor (burst up to 2.42 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics
Floating Point Unit: Yes
Hardware-accelerated Transcoding: Yes
System Memory: 2GB SO DIMM DDR3L (1 x 2GB)
Maximum Memory: 8GB (2 x 4GB)
Memory Slot: 2 x SO DIMM DDR3L
Flash Memory: 512MB (Dual boot OS protection)
Drive Bay: 2 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility :
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot-swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 2
Jumbo Frame: Yes
USB 2.0 port: 2
USB 3.2 Gen 1 port: 2
IR Sensor: (RM-IR002 & MCE)
HDMI Output: 1, (up to 1080p)
Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-2
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 168.5 × 102 × 225 mm
Weight (Net):1.28 kg
Weight (Gross): 2.32 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 60W adapter, 100-240V
Power Consumption: HDD Sleep Mode 10.56 W
Power Consumption: Operating Mode, Typical 18.09 W
Fan: 1 x 70mm, 12VDC
Sound Level: 15.4 db(A)
System Warning: Buzzer
Kensington Security Slot: Yes
Max Number of Concurrent Connections (CIFS): 800

View Specification

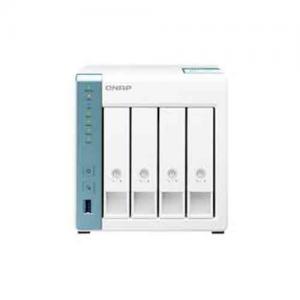

Qnap TS 431P 4 Bay Storage

CPU: AnnapurnaLabs, an Amazon company Alpine AL 212, 2 core, 1.7GHz
CPU Architecture: 32 bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 1GB DDR3
Maximum Memory: 1GB DDR3
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay : 4x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 2
Jumbo Frame: Yes
USB 3.2 Gen 1 port: 3
Form Factor: Tower
LED Indicators: Power, Status, LAN, USB, HDD1-4
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 161 × 160 × 219 mm
Weight (Net): 3kg
Weight (Gross): 4.3kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W Adapter, 100-240V
Power Consumption: HDD Sleep Mode 11.65 W
Power Consumption: Operating Mode, Typical 26.7 W With drives fully populated
Fan: 1 x 120mm, 12VDC
Sound Level: 19.5 db(A)
System Warning: Buzzer
Kensington Security Slot: Yes
Max Number of Concurrent Connections (CIFS): 400

View Specification

Qnap TS 231P 2 Bay Storage

CPU: AnnapurnaLabs, an Amazon company Alpine AL 212, 2 core, 1.7GHz
CPU Architecture: 32 bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 1GB DDR3
Maximum Memory: 1GB DDR3
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 2 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
Jumbo Frame
USB 3.2 Gen 1 port: 3
Form Factor: Tower
LED Indicators: Power, Status, LAN, USB, HDD1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD): 161 × 102 × 219 mm
Weight (Net): 1.35 kg
Weight (Gross): 2.39 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 60W/65W Adapter, 100-240V
Power Consumption: HDD Sleep Mode 8.46 W
Power Consumption: Operating Mode, Typical 15.6 W
With drives fully populated
Fan: 1 x 7 cm smart fan (12V DC)
Sound Level: 19.2 db(A)
System Warning: Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS): 400

View Specification

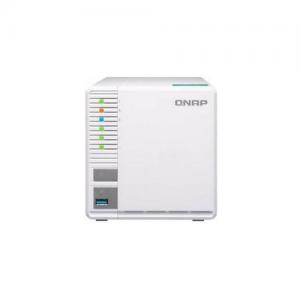

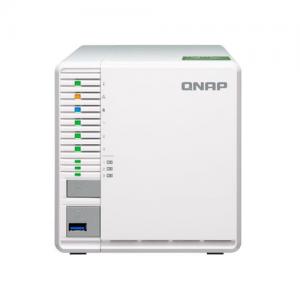

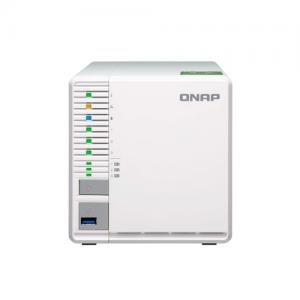

Qnap TS 328 3 Bay Storage

CPU: Realtek RTD 1296 ARM Cortex A53 quad-core 1.4 GHz processor
Note: The TS 328 reserves some RAM for use as shared graphics
CPU Architecture: 64 bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
Hardware accelerated Transcoding: up to 1080P
System Memory: 2GB DDR4 RAM, not expandable
Maximum Memory: 2GB DDR4 RAM, not expandable
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 3 x 3.5 inch SATA 6Gb/s, 3Gb/s
bundled one 2.5 tray base for installing 2.5 HDD/SSD; additional purchase can be made from QNAP shop
Drive Compatibility
3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
Hot swappable: Yes
Gigabit Ethernet Port (RJ45): 2
Note: You can set the MTU of LAN 1 up to 1500 while the MTU of LAN 2 can be set up to 9000
Jumbo Frame: Yes
USB 2.0 port: 1
USB 3.2 Gen 1 port: 2
Audio Output: 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~3
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): 142 × 150 × 260.1 mm
Weight (Net): 1.64 kg
Weight (Gross): 2.69 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: External, 65 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode 7.24 W
Power Consumption: Operating Mode, Typical 18.35W With drives fully populated
Fan: 1 x 90mm, 12VDC
Sound Level: 16.5 db(A)
Other Interfaces: Kensington security slot
System Warning: Voice prompts or Buzzer
Kensington Security Slot: Yes
Max. Number of Concurrent Connections (CIFS): 128

View Specification

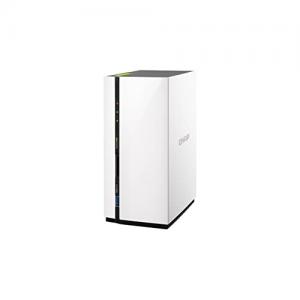

Qnap TS 228A 2 Bay Storage

CPU: Realtek RTD1295 quad core 1.4GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 1GB DDR4, not expandable
Maximum Memory: 1GB DDR4, not expandable
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 2 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5 inch bays:
3.5 inch SATA hard disk drives
Gigabit Ethernet Port (RJ45): 1
Jumbo Frame: Yes
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD): 187.7 × 90 × 125 mm
Weight (Net): 0.69 kg
Weight (Gross): 1.54 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: External, 65 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode 5.3W
Power Consumption: Operating Mode, Typical 12.09 W With drives fully populated
Fan: 1 x 7612 cooling blower for system
Sound Level: 17.8 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 128

View Specification

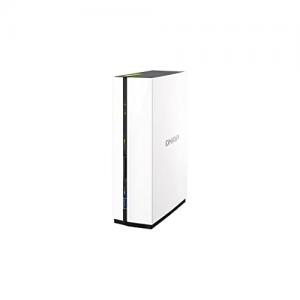

Qnap TS 128A 1 Bay Storage

CPU: Realtek RTD1295 quad core 1.4GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit: Yes
Encryption Engine: Yes
System Memory: 1 GB DDR4, not expandable
Maximum Memory: 1 GB DDR4, not expandable
Flash Memory: 4 GB (Dual boot OS protection)
Drive Bay: 1 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5 inch bays:
3.5 inch SATA hard disk drives
Gigabit Ethernet Port (RJ45): 1
Jumbo Frame: Yes
USB 2.0 port: 2
USB 3.2 Gen 1 port: 1
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~2
Buttons: Power, Reset, USB Copy
Dimensions (HxWxD) : 187.7 × 60 × 125 mm
Weight (Net): 0.56 kg
Weight (Gross): 1.21 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: External, 36 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode 3.09 W
Power Consumption: Operating Mode, Typical 7.12 W With drives fully populated
Fan: 1 x 7612 cooling blower for system
Sound Level: 15.8 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 128

View Specification

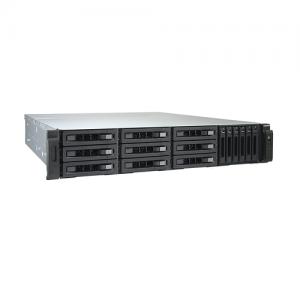

Qnap TVS 1582TU 15 Bay Storage

CPU: Intel Core i7 7700 quad core 3.6 GHz processor, Max turbo to 4.2 GHz
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 630
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding : Yes
System Memory: 32GB UDIMM DDR4 (4 x 8GB)
Maximum Memory: 64GB (4 x 16 GB)
Memory Slot: 4 x Long DIMM DDR4
Flash Memory: 512MB (DOM for dual OS)
Drive Bay: 9 x 3.5 inch + 6 x 2.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility
3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
2.5 inch bays
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: SSD slot 1, 2, 3, 4
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+
Jumbo Frame: Yes
Thunderbolt Port: 4 (Thunderbolt 3)
PCIe Slot: 3
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8
Slot 3: PCIe Gen 3 x4
Three PCle slots are occupied by two Thunderbolt 3 card and a 10GbE adapter
USB 2.0 port: 4
USB 3.2 Gen1 port: 4
HDMI Output: 1, HDMI 1.4b
Form Factor: 2U Rackmount
LED Indicators: HDD, Status, 10 GbE, LAN, storage expansion port status
Buttons: Power, Reset
Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
Weight (Net): 14.18 kg
Weight (Gross): 21.41 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Redundant/ Hot Swap ATX Power Supply,
Input: 50-60 Hz
100-127V~/ 5,5A
200-240V/ 3A
Output: 450W
Power Consumption: HDD Sleep Mode 10.833W
Power Consumption: Operating Mode, Typical 242.77W
Fan: 4 x 60mm smart cooling fan
Sound Level: 53.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500

View Specification

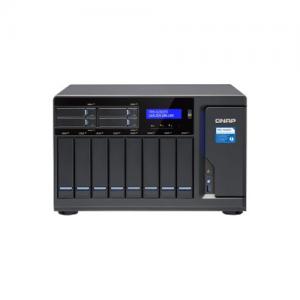

Qnap TVS 1282 12 Bay Storage

View Specification

Qnap TVS 882 8 Bay Storage

View Specification

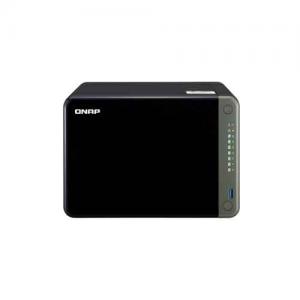

Qnap TVS 682 6 Bay Storage

CPU: Intel Core i3 7100 dual core 3.9 GHz processor
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 630
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding: Yes
System Memory: 8GB UDIMM DDR4 (2 x 4GB)
Maximum Memory: 64GB (4 x 16GB)
Memory Slot: 4 x DDR4 Long-DIMM
Flash Memory: 512MB (DOM for dual OS)
Drive Bay: 4 x 3.5 inch + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility:
3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
2.5 inch bays
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: SSD slot 1, 2
Gigabit Ethernet Port (RJ45): 4
Jumbo Frame: Yes
PCIe Slot: 2
Slot 1: PCIe Gen 3 x16
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port: 5
HDMI Output: 3
Audio Input: 2 x 6.3mm dynamic microphone input jacks
Audio Output: 2 x built in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
Only one of the above audio output ports can work at a time If a speaker is connected, the sound will output through the speaker
Form Factor: Tower
LED Indicators: System status, 2.5 SSD, M.2 SSD, 3.5 HDD
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 231.9 × 224.9 × 319.8 mm
Weight (Net): 7.7 kg
Weight (Gross): 9.21 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
Power Consumption: HDD Sleep Mode 29.15 W
Power Consumption: Operating Mode, Typical 46.65 W
System fan: 1 x 80mm
CPU fan: 1 x 90mm
Sound Level: 20.1 db(A)
System Warning: Buzzer
Kensington Security Slot: Yes
Max. Number of Concurrent Connections (CIFS): 1500

View Specification

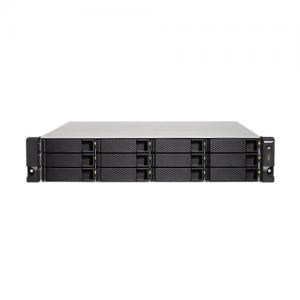

Qnap TVS 1272XU RP 12 Bay Storage

CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
CPU Architecture: 64 bit x86
Graphic Processors: Intel UHD Graphics 630
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding: Yes
System Memory: 4GB UDIMM DDR4 (1 x 4GB)
Maximum Memory: 64GB (4 x 16 GB)
Memory Slot: 4xLong DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 12 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame: Yes
PCIe Slot: 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 2 (10Gbps) Port: 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 60Hz)
Form Factor: 2U Rackmount
LED Indicators: HDD 1-12, Status, LAN, storage expansion port status
Buttons: Power, Reset
Dimensions (HxWxD) : 88.3 × 482 × 562 mm
Weight (Net): 12.25 kg
Weight (Gross): 15.85 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 300W(x2), 100-240V
Power Consumption: Operating Mode, Typical 105.37W With WD10EFRX drives fully populated
Fan System fan: 2 x 60mm, 12VDC
Sound Level: 52.7 db(A)
System Warning : Buzzer
Max. Number of Concurrent Connections (CIFS): 700

View Specification

Qnap TVS 872XU RP Bay Storage

CPU: Intel Core i3 8100 4 core 3.6 GHz Processor
CPU Architecture: 64 bit x86
Graphic Processors: Intel UHD Graphics 630
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding: Yes
System Memory: 4GB UDIMM DDR4 (1x4GB)
Maximum Memory: 64 GB (4 x 16 GB)
Memory Slot: 4 x Long DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 8 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame: Yes
PCIe Slot: 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 60Hz)
Form Factor: 2U Rackmount
LED Indicators: HDD 1-8, Status, LAN, storage expansion port status
Buttons: Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 562 mm
Weight (Net): 11.89 kg
Weight (Gross): 15.49 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 300W(x2), 100-240V
Power Consumption: Operating Mode, Typical 90.02W With WD10EFRX drives fully populated
Fan System fan: 2 x 60mm, 12VDC
Sound Level: 52.1 db(A)
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS): 700

View Specification

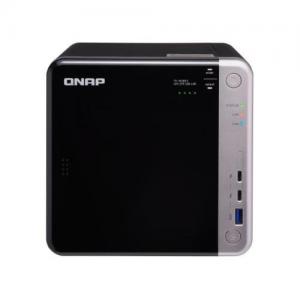

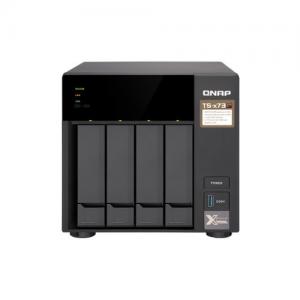

Qnap TS 473 4 Bay Storage

CPU: AMD R Series RX 421ND quad core 2.1 GHz processor (Turbo Core to 3.4 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Optional via a PCIe adapter
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding : Optional via a PCIe adapter
System Memory: 8GB SO DIMM DDR4 (2 x 4 GB)
Maximum Memory: 64 GB (4 x 16 GB)
Memory Slot: 4 x SO DIMM DDR4
For dual or quad-DIMM configurations, you must use a pair of identical DDR4 modules
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 4
Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port: Optional via a PCIe adapter
Jumbo Frame: Yes
PCIe Slot: 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
USB 3.2 Gen 1 port: 4
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
IR Sensor: (QNAP RM-IR004)
HDMI Output: Optional via a PCIe adapter
Audio Input: 2 x 3.5 mm dynamic microphone jacks
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously
Form Factor: Tower
LED Indicators: Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons: Power, Reset, USB Auto Copy
Dimensions (HxWxD): 188.2 × 199.3 × 279.6 mm
Weight (Net): 4.9 kg
Weight (Gross): 6.05 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: HDD Sleep Mode : 33.24W
Power Consumption: Operating Mode, Typical 56.23W With 4 x 2TB HDDs installed
System fan: 1 x 120mm
CPU fan: 1 x 60mm
Sound Level: 21.7 db(A)
System Warning: Buzzer
Kensington Security Slot: Yes
Max Number of Concurrent Connections (CIFS): 1200

View Specification

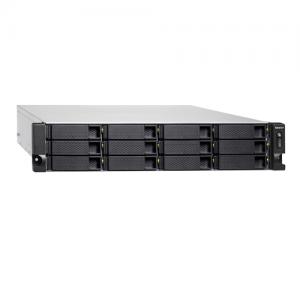

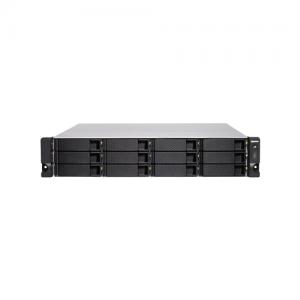

Qnap TS 1253BU RP 12 Bay Storage

CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 500
Floating Point Unit: Yes
Encryption Engine: (AES-NI)
System Memory: 4 GB SODIMM DDR3L (2 x 2 GB)
Maximum Memory: 8 GB (2 x 4GB)
Memory Slot: 2 x SO DIMM DDR3L
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 12 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support: Drive bays 1 to 2
Gigabit Ethernet Port (RJ45): 4
Jumbo Frame: Yes
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
HDMI Output: 1, HDMI 1.4b
Form Factor: 2U Rackmount
LED Indicators: HDD 1-12, Status, LAN, Expansion, Power
Buttons: Power, Reset
Dimensions (HxWxD): 89 × 482 × 534 mm
Weight (Net): 11.64 kg
Weight (Gross): 15.27 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz
Power Consumption: HDD Sleep Mode 42.7 W
Power Consumption: Operating Mode, Typical 75.9W With drives fully populated
Fan: 2 x 70mm, 12VDC
Sound Level: 33.2 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500

View Specification

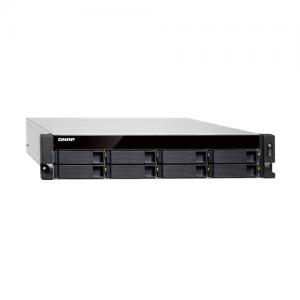

Qnap TS 853BU RP 8 Bay Storage

CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 500
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 4GB DDR3L (2 x 2 GB)
Maximum Memory: 8 GB (2 x 4GB)
Memory Slot: 2 x SO DIMM DDR3L
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 8 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support Drive bays 1 to 2
Gigabit Ethernet Port (RJ45): 4
Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
HDMI Output: 1, HDMI 1.4b

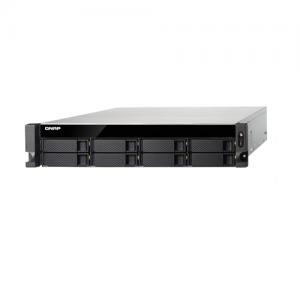

Form Factor: 2U Rackmount
LED Indicators: HDD 1-8, Status, LAN, Expansion, Power
Buttons Power, Reset
Dimensions (HxWxD): 89 × 482 × 534 mm
Weight (Net): 11.25 kg
Weight (Gross): 14.88 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz
Power Consumption: HDD Sleep Mode 40.5 W
Power Consumption: Operating Mode, Typical 63.3 W
With drives fully populated
Fan: 2 x 70mm, 12VDC
Sound Level: 31.6 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500

View Specification

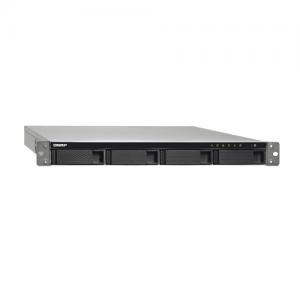

Qnap TS 453BU RP 4 Bay Storage

CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 500
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 4GB DDR3L (2 x 2 GB)
Maximum Memory: 8 GB (2 x 4GB)
Memory Slot: 2 x SO DIMM DDR3L
When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support Drive bays 1 to 2
Gigabit Ethernet Port (RJ45): 4
Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
HDMI Output: 1, HDMI 1.4b
Form Factor: 1U Rackmount
LED Indicators: HDD 1-4, Status, LAN, Expansion, Power
Buttons Power, Reset
Dimensions (HxWxD): 44 × 439 × 499 mm
Weight (Net): 9.27 kg
Weight (Gross): 11.3 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: ATX 250W (x2), Input: 100V-240V ~ / 5A-2.5A, 50Hz-60Hz
Power Consumption: HDD Sleep Mode 35.4 W
Power Consumption: Operating Mode, Typical 47.61 W
With drives fully populated
Fan: 2 x 40mm, 12VDC
Sound Level: 36.9 db(A)
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS): 1500

View Specification

Qnap TS 453BT3 4 Bay Storage

View Specification

Qnap TS 653B 6 Bay Storage

View Specification

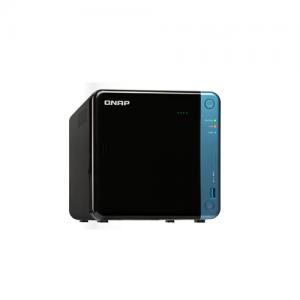

Qnap TS 453Be 4 Bay storage

CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 500
Floating Point Unit
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding
System Memory: 2 GB SO DIMM DDR3L (1 x 2 GB)
Maximum Memory: 8 GB (2 x 4 GB)
Memory Slot: 2 x SO DIMM DDR3L
For dual DIMM configuration, you must use a pair of identical DDR3L modules
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD
For the HDD compatibility list
Drive Compatibility: 3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port: Optional via a PCIe adapter
Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port: 5
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
IR Sensor: (RM IR004, RM IR002, & MCE)
HDMI Output: 2, HDMI 1.4b (up to 3840 x 2160 30Hz)
Audio Input: 2 x 3.5mm dynamic microphone input jacks
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
You cannot use the speakers and the line-out jack simultaneously
Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD): 168 × 170 × 226 mm
Weight (Net): 2.37 kg
Weight (Gross): 3.71 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 15 W
Power Consumption: Operating Mode, Typical 30.04 W
Fan: 1 x 120mm, 12VDC
Sound Level: 18.8 db(A)
System Warning: Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 800

View Specification

Qnap TS 453Be 4G 4 Bay storage

CPU: Intel Celeron J3455 quad core 1.5 GHz processor (burst up to 2.3 GHz)
CPU Architecture: 64 bit x86
Graphic Processors: Intel HD Graphics 500
Floating Point Unit
Encryption Engine: (AES-NI)
Hardware accelerated Transcoding
System Memory: 4 GB SO DIMM DDR3L (1 x 4 GB)
Maximum Memory: 8 GB (2 x 4 GB)
Memory Slot: 2 x SO DIMM DDR3L
For dual DIMM configuration, you must use a pair of identical DDR3L modules
Flash Memory: 4GB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD
For the HDD compatibility list, please visit
Drive Compatibility: 3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
Expandable with an optional PCIe adapter
10 Gigabit Ethernet Port: Optional via a PCIe adapter
Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 5
USB 3.2 Gen 2 (10Gbps) Port: Optional via a PCIe adapter
IR Sensor: (RM IR004, RM IR002, & MCE)
HDMI Output: 2, HDMI 1.4b (up to 3840 x 2160 30Hz)
Audio Input: 2 x 3.5mm dynamic microphone input jacks
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifier or headphone amplifier)
You cannot use the speakers and the line out jack simultaneously
Form Factor: Tower
LED Indicators: Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD): 168 × 170 × 226 mm
Weight (Net): 2.37 kg
Weight (Gross): 3.71 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 15 W
Power Consumption: Operating Mode, Typical 30.04 W
Fan: 1 x 120mm, 12VDC
Sound Level: 18.8 db(A)
System Warning: Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS): 800

View Specification

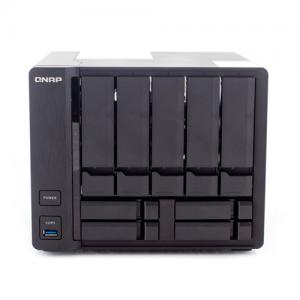

Qnap TS 932X 9 Bay storage

CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 2 GB SODIMM DDR4 (1x 2 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x SO DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 5x 3.5 inch+ 4 x 2.5 inch SATA 6Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
2.5 inch bays
2.5 inch solid state drives
Hot swappable
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
USB 3.2 Gen 1 port: 3
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line out jack simultaneously
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~5, SSD1-4
Buttons Power, Reset, USB Copy
Dimensions (HxWxD): 182.7 × 224.7 × 223.6 mm
Weight (Net): 3.53 kg
Weight (Gross): 5.06 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: External, 120 W, AC 100 to 240 V
Power Consumption: HDD Sleep Mode 21.66 W
Power Consumption: Operating Mode, Typical 42.15 W
With drives fully populated
Fan: 1 x 140mm, 12VDC
Sound Level: 18.7 db(A)
System Warning: Voice prompts or Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 1500

View Specification

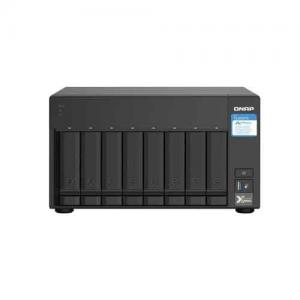

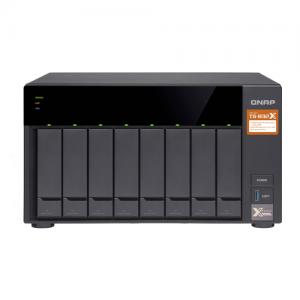

Qnap TS 832X 8 Bay storage

CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 2 GB SODIMM DDR4(1 x 2 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x SO-DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 8 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 2
Slot 1: PCIe Gen 2 x1
Slot 2: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 3
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line out jack simultaneously
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~8
Buttons Power, Reset, USB Copy
Dimensions (HxWxD): 188.2 × 329.3 × 279.6 mm
Weight (Net): 6.38 kg
Weight (Gross): 8.61 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W, 100-240V AC, 50/60Hz, 3.5A
Power Consumption: HDD Sleep Mode 24.53 W
Power Consumption: Operating Mode, Typical 49.43 W
With drives fully populated
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 1 x 60mm
Sound Level: 20.7 db(A)
System Warning: Voice prompts or Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 1500

View Specification

Qnap TS 332X 4G 3 Bay storage

CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 4 GB SODIMM DDR4 (1 x 4GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x SO-DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 3 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
Hot swappable
M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
M.2 SSD is sold separately
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
USB 3.2 Gen 1 port: 3
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously.
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~3, M.2 SSD1~3
Buttons Power, Reset, USB Copy
Dimensions (HxWxD): 142 × 150 × 260.1 mm
Weight (Net): 1.64 kg
Weight (Gross): 2.69 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100 - 240V
Power Consumption: HDD Sleep Mode 18.56 W
Power Consumption: Operating Mode, Typical 26.22 W
With drives fully populated
Fan: 1 x 90mm, 12VDC
Sound Level: 17.5 db(A)
System Warning: Voice prompts or Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 700

View Specification

Qnap TS 332X 2G 3 Bay storage

CPU: AnnapurnaLabs Alpine AL 324 64 bit ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 2 GB SODIMM DDR4 (1 x 2GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x SO DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 3 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
A 2.5 drive tray base is needed to install a 2.5 SSD/HDD
Hot swappable: Yes
M.2 SSD Slot: 3 x M.2 2280 SATA 6Gb/s slots
M.2 SSD is sold separately
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
USB 3.2 Gen 1 port: 3
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
You cannot use the speakers and the line-out jack simultaneously
Form Factor: Tower
LED Indicators: System Status, LAN, USB, HDD1~3, M.2 SSD1~3
Buttons Power, Reset, USB Copy
Dimensions (HxWxD): 142 × 150 × 260.1 mm
Weight (Net): 1.64 kg
Weight (Gross): 2.69 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 90W adapter, 100 - 240V
Power Consumption: HDD Sleep Mode 18.56 W
Power Consumption: Operating Mode, Typical 26.22 W
With drives fully populated
Fan: 1 x 90mm, 12VDC
Sound Level: 17.5 db(A)
System Warning Voice prompts or Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS): 700

View Specification

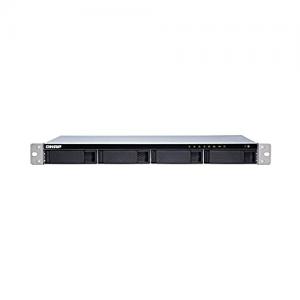

Qnap TS 431XeU 3 Bay Storage

CPU: AnnapurnaLabs Alpine AL 314 32 bit ARM Cortex A15 quad core 1.7GHz processor
CPU Architecture: 32 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 2 GB SODIMM DDR3 (1 x 2 GB)
Maximum Memory: 8 GB (1 x 8 GB)
Memory Slot: 1 x SO-DIMM DDR3
Flash Memory: 512MB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 1 x 10GbE SFP+ Jumbo Frame
USB 3.2 Gen 1 port: 4
Form Factor: 1U Rackmount
LED Indicators: HDD 1-4, Status, USB, LAN1 3
Buttons Power, Reset
Dimensions (HxWxD): 44 × 439 × 291 mm
Weight (Net): 4.15 kg
Weight (Gross): 5.78 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Open-frame 100W, Input: 100V-240V ~ / 3.5A, 50Hz-60Hz
Power Consumption: HDD Sleep Mode 12.42 W
Power Consumption: Operating Mode, Typical 30.99 W
With drives fully populated
Fan System fan: 3 x 40mm, 12VDC
Sound Level: 20.3 db(A)
System Warning: Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 700

View Specification

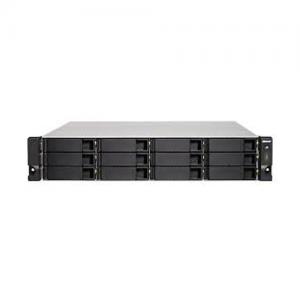

Qnap TS 1232XU RP 12 Bay Storage

CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x Long DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 12 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
Form Factor: 2U Rackmount
LED Indicators: HDD 1-12, Status, LAN, Storage expansion
Buttons Power, Reset
Dimensions (HxWxD): 89 × 482 × 534 mm
Weight (Net): 11.34 kg
Weight (Gross): 17.27 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W (x2) PSU, 100 - 240V
Power Consumption: HDD Sleep Mode 42.61 W
Power Consumption: Operating Mode, Typical 77.09 W
With drives fully populated
Fan: 2 x 70mm, 12VDC
Sound Level: 31.7 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 700

View Specification

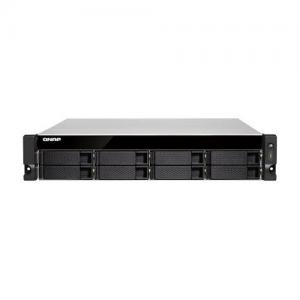

Qnap TS 832XU 4G RP 8 Bay Storage

CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 4 GB UDIMM DDR4 (1 x 4 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x Long DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 8 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
Form Factor: 2U Rackmount
LED Indicators: HDD 1-8, Status, LAN, Storage expansion
Buttons Power, Reset
Dimensions (HxWxD): 89 × 482 × 534 mm
Weight (Net): 10.94 kg
Weight (Gross): 16.87 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W (x2) PSU, 100 - 240V
Power Consumption: HDD Sleep Mode 38.1 W
Power Consumption: Operating Mode, Typical 60.74 W
With drives fully populated
Fan: 2 x 70mm, 12VDC
Sound Level: 31.1 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 700

View Specification

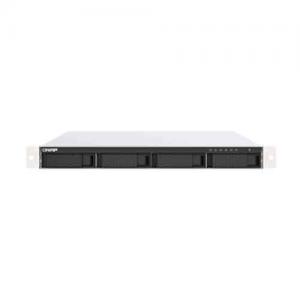

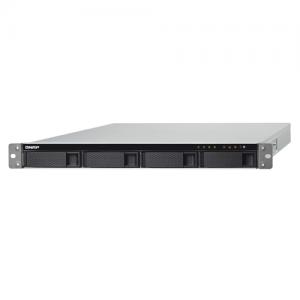

Qnap TS 432XU RP 4 Bay Storage

CPU: AnnapurnaLabs Alpine AL 324 ARM Cortex A57 quad core 1.7GHz processor
CPU Architecture: 64 bit ARM
Floating Point Unit
Encryption Engine
System Memory: 2 GB UDIMM DDR4 (1 x 2 GB)
Maximum Memory: 16 GB (1 x 16 GB)
Memory Slot: 1 x Long-DIMM DDR4
Flash Memory: 512 MB (Dual boot OS protection)
Drive Bay: 4 x 3.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: Optional via a PCIe adapter
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 2
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 1
Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance
USB 3.2 Gen 1 port: 4
Form Factor: 1U Rackmount
LED Indicators: HDD 1 4, Status, LAN, Storage expansion
Buttons Power, Reset
Dimensions (HxWxD): 44 × 439 × 499 mm
Weight (Net): 8.06 kg
Weight (Gross): 11.06 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 250W (x2) PSU, 100 - 240V
Power Consumption: HDD Sleep Mode 35.12 W
Power Consumption: Operating Mode, Typical 48.75 W
With drives fully populated
Fan: 2 x 40mm, 12VDC
Sound Level: 38.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 700

View Specification

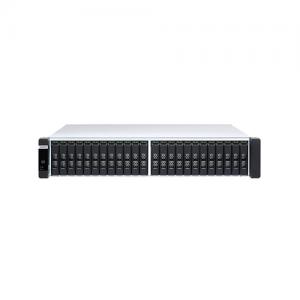

Qnap ES2486dc 2142IT 128G 24 Bay NAS Enterprises

View Specification

Qnap ES2486dc 2142IT 24 Bay 96G storage

View Specification

Qnap TS 1886XU RP D1622 8G 18 Bay Storage

CPU: Intel Xeon D 1622 quad core 2.60 GHz processor (burst up to 3.2 GHz)
CPU Architecture: 64 bit x86
System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
Maximum Memory: 128 GB (4 x 32 GB)
Memory Slot: 4 x Long DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
2.5 inch bays:
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Pre installed with a 10GbE PCIe adapter
PCIe Slot: 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or x4
Slot 4 is preinstalled with a 10GbE network adapter
Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
USB 3.2 Gen 1 port
Form Factor: Rackmount
LED Indicators: HDD, SSD, Status, LAN, storage expansion port status, Buttons Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
Weight (Net): 12.73 kg
Weight (Gross): 18.69 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 117.92 W
Fan System fan: 3 x 60mm, 12VDC
Sound Level: 56.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500

View Specification

Qnap TS 1886XU RP D1602 4G 18 Bay Storage

CPU: Intel Xeon D 1602 dual core 2.50 GHz processor (burst up to 3.2 GHz)
CPU Architecture: 64 bit x86
System Memory: 4 GB UDIMM DDR4 ECC (1 x 4GB)
Maximum Memory: 128 GB (4 x 32 GB)
Memory Slot: 4 x Long-DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: Front: 12 x 3.5 inch SATA 6Gb/s, 3Gb/s
Rear: 6 x 2.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
2.5 inch bays:
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Pre installed with a 10GbE PCIe adapter
PCIe Slot: 4
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x8 or x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x8 or x4
Slot 4 is preinstalled with a 10GbE network adapter
Slot 2 provides the width of PCIe Gen 3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 1 is in use
Slot 4 provides the width of PCIe Gen 3 x8 when Slot 3 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 3 is in use
USB 3.2 Gen 1 port 2
Form Factor: Rackmount
LED Indicators: HDD, SSD, Status, LAN, storage expansion port status Buttons Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 549.7 mm
Weight (Net): 12.73 kg
Weight (Gross): 18.69 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 117.92 W
Fan System: 3 x 60mm, 12VDC
Sound Level: 56.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 1500

View Specification

Qnap TES 1885U D1521 8GR 18 Bay Storage

CPU: Intel Xeon D 1521 quad core 2.4 GHz processor, Max turbo to 2.7 GHz
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
Maximum Memory UDIMM: 64 GB (4 x 16 GB)
RDIMM: 128GB (4 x 32 GB)
Memory Slot: 4 x Long-DIMM DDR4
32 GB (above) RAM is required for QES operating system
You can only use one type of dual in line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
Flash Memory: 4GB (DOM for dual OS)
Drive Bay: Front: 12 x 3.5 inch
Rear: 6 x 2.5 inch
Drive Compatibility: 3.5-inch bays
3.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA solid state drives
2.5 inch bays:
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 4
Slot 1: PCIe Gen 3 x8
Slot 2: PCIe Gen 2 x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
USB 3.2 Gen 1 port 2
Form Factor: 2U Rackmount
LED Indicators: HDD, Status, 10 GbE, LAN, storage expansion port status Buttons Power, Reset
Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
Weight (Net): 15.34 kg
Weight (Gross): 21.25 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Redundant/ Hot Swap ATX Power Supply
Input: 47-63 Hz
100-127V~/ 8A
200-240V/ 4A
Output: 450W
Power Consumption: Operating Mode, Typical 229.53 W
Fan: 4 x 60mm
Sound Level: 58.9 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS) QTS: 1500
QES: 1500

View Specification

Qnap TES 1885U D1521 8GR 18 Bay Storage

CPU: Intel Xeon D 1521 quad core 2.4 GHz processor, Max turbo to 2.7 GHz
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 8 GB RDIMM DDR4 ECC (1 x 8GB)
Maximum Memory UDIMM: 64 GB (4 x 16 GB)
RDIMM: 128GB (4 x 32 GB)
Memory Slot: 4 x Long DIMM DDR4
32 GB (above) RAM is required for QES operating system
You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
Flash Memory: 4GB (DOM for dual OS)
Drive Bay: Front: 12 x 3.5 inch
Rear: 6 x 2.5 inch
Drive Compatibility: 3.5 inch bays
3.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA hard disk drives
2.5 inch SAS/SATA solid state drives
2.5 inch bays
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ Jumbo Frame
PCIe Slot: 4
Slot 1: PCIe Gen 3 x8
Slot 2: PCIe Gen 2 x4
Slot 3: PCIe Gen 3 x4
Slot 4: PCIe Gen 3 x4 or PCIe Gen 3 x8
Slot 4 provides the width of PCIe Gen 3 x8 when slot 3 is not in use Slot 4 then provides the width of PCIe Gen 3 x4 only when an expansion board is installed in slot 3
USB 3.2 Gen 1 port: 2
Form Factor: 2U Rackmount
LED Indicators:   HDD, Status, 10 GbE,LAN, storage expansion port status
Buttons   Power, Reset
Dimensions (HxWxD): 88 × 442.5 × 530.5 mm
Weight (Net): 15.34 kg
Weight (Gross):   21.25 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Redundant/ Hot Swap ATX Power Supply,Input: 47-63 Hz
100-127V~/ 8A
200-240V/ 4A
Output: 450W
Power Consumption: Operating Mode, Typical 229.53 W
Fan: 4 x 60mm
Sound Level: 58.9 db(A)
System Warning:   Buzzer
Max Number of Concurrent Connections (CIFS) QTS: 1500
QES: 1500

View Specification

Qnap TS 1685 D1521 8G 16 Bay storage

CPU: Intel Xeon D 1521 quad core 2.4 GHz processor, Max turbo to 2.7 GHz
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 8GB UDIMM DDR4 (1 x 8GB)
Maximum Memory UDIMM: 64 GB (4 x 16 GB)
RDIMM: 128GB (4 x 32 GB)
Memory Slot: 4 x Long DIMM DDR4
IMPORTANT: You can only use one type of dual in line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with unbuffer DIMM (UDIMM) memory
Flash Memory: 512MB (DOM for dual OS)
Drive Bay: 12 x 3.5 inch + 4 x 2.5 inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
M.2 SSD Slot: 6 x M.2 22110/2280/2260/2242 SATA 6Gb/s slot
The M.2 SSD is not included as standard
M.2 SSD operations can easily generate excessive heat,It is recommended to install a heatsink (from QNAP or a third party provider) on the M.2 SSD
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GBASE T
Jumbo Frame
PCIe Slot: 3
Slot 1: PCIe Gen 3 x8
Slot 2: PCIe Gen 2 x4
Slot 3: PCIe Gen 3 x8
USB 3.2 Gen 1 port: 3
Audio Output: 1 x built in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
Only one of the above audio output ports can work at a time If a speaker is connected, the sound will output through the speaker
Form Factor: Tower
LED Indicators System status, 2.5 SSD, M.2 SSD, 3.5 HDD
LCD Display/ Button
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD): 303.84 × 369.89 × 319.8 mm
Weight (Net): 13.39 kg
Weight (Gross): 15.96 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: Input: 100-240V~, 3-1.5A, 60-50Hz; Output: 250W
Power Consumption: HDD Sleep Mode 61.36 W
Power Consumption: Operating Mode, Typical 127 W
Fan System fan: 3 x 92mm, 12VDC
CPU fan: 2 x 90mm
Sound Level: 22.5 db(A)
System Warning: Buzzer
Kensington Security Slot
Max Number of Concurrent Connections (CIFS): 1500

View Specification

Qnap TS 2483XU RP E2136 16G 24 Bay Storage

CPU: Intel Xeon E 2136 6 core 3.3 GHz processor (burst up to 4.5 GHz)
CPU Architecture: 64 bit x86
Floating Point Unit
Encryption Engine: (AES-NI)
System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
Maximum Memory: 64 GB (4 x 16 GB)
Memory Slot: 4 x Long-DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 24 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays:
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame
PCIe Slot: 5
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x4 (CPU)
Slot 3: PCIe Gen 2 x4 (PCH)
Slot 4: PCIe Gen 3 x8 (CPU)
Slot 5: PCIe Gen 2 x4 (PCH)
Slot 5 is preinstalled with a 10GbE network adapter
USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
Form Factor: 4U Rackmount
LED Indicators: HDD 1-24, Status, LAN, storage expansion port status, Buttons Power, Reset
Dimensions (HxWxD): 176.15 × 481.04 × 672.02 mm
Weight (Net): 20.67 kg
Weight (Gross): 28.56 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 800W(x2), 100-240V
Power Consumption: Operating Mode, Typical 168.97 W With drives fully populated
Fan System fan: 4 x 92mm, 12VDC
Sound Level: 28.7 db(A)
System Warning: Buzzer
Max. Number of Concurrent Connections (CIFS): 700

View Specification

Qnap TS 1683XU RP E2124 16G 16 Bay Storage

CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
CPU Architecture: 64 bit x86
Floating Point Unit: yes
Encryption Engine: (AES-NI)
System Memory: 16 GB UDIMM DDR4 ECC (2 x 8GB)
Maximum Memory: 64 GB (4 x 16 GB)
Memory Slot: 4 x Long-DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: yes
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame: yes
PCIe Slot: 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU) / Slot 4 is preinstalled with a 10GbE network adapter
USB: 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps, 4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps
Form Factor: 3U Rackmount
LED Indicators: HDD 1-16, Status, LAN, storage expansion port status, Buttons Power, Reset
Dimensions (HxWxD): 130 × 481 × 573.5 mm
Weight (Net): 13.76 kg
Weight (Gross): 21.79 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 500W(x2), 100-240V
Power Consumption: Operating Mode, Typical 130.43 W With drives fully populated
Fan System fan: 4 x 92mm, 12VDC
Sound Level: 53 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 700

View Specification

Qnap TS 1283XU RP 12 Bay storage

CPU: Intel Xeon E 2124 quad core 3.3 GHz processor (burst up to 4.3 GHz)
CPU Architecture: 64 bit x86
Floating Point Unit: yes
Encryption Engine: (AES-NI)
System Memory: 8 GB UDIMM DDR4 ECC (2 x 4GB)
Maximum Memory: 64 GB (4 x 16 GB)
Memory Slot: 4 x Long-DIMM DDR4
Flash Memory: 5GB (Dual boot OS protection)
Drive Bay: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility: 3.5-inch bays
3.5 inch SATA hard disk drives
2.5 inch SATA hard disk drives
2.5 inch SATA solid state drives
Hot swappable: Yes
SSD Cache Acceleration Support: Yes
Gigabit Ethernet Port (RJ45): 4
10 Gigabit Ethernet Port: 2 x 10GbE SFP+ SmartNIC port
Jumbo Frame: Yes
PCIe Slot: 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4: is preinstalled with a 10GbE network adapter
USB 3.2: Gen 2 (10Gbps) Port 2 x Type C USB 3.2 Gen 2 5V/3A 10Gbps
4 x Type A USB 3.2 Gen 2 5V/1A 10Gbps
Form Factor: 2U Rackmount
LED Indicators: HDD 1 12, Status, LAN, storage expansion port status Buttons Power, Reset
Dimensions (HxWxD): 88.3 × 482 × 562 mm
Weight (Net): 11.75 kg
Operating temperature: 0 - 40 °C (32°F - 104°F)
Relative Humidity: 5-95% RH non-condensing, wet bulb: 27?C (80.6?F)
Power Supply Unit: 300W(x2), 100-240V
Power Consumption: Operating Mode, Typical 105.12 W With drives fully populated
Fan System fan: 2 x 60mm, 12VDC
Sound Level: 40.6 db(A)
System Warning: Buzzer
Max Number of Concurrent Connections (CIFS): 700

View Specification

Qnap TS 230 2GB NAS Storage

Brand: Qnap
processor: Realtek RTD1296 quad-core 1.4GHz processor
CPU Architecture: 64-bit ARM
Memory: 2GB DDR4, not expandable
Form Factor: Tower
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.64 × 90.18 × 156.26 mm
Power Consumption: 4.48 W
Hot-swappable: Yes
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 231K 1GB NAS Storage

Brand: Qnap
processor: Alpine AL214, 4-core, 1.7GHz processor
CPU Architecture: 32-bit ARM
Memory: 1GB DDR3 Memory
Form Factor: Tower
Drive Bay: 2 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 169 × 102 × 219 mm
Power Supply: 60W/65W Adapter, 100-240V
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 431K 1GB NAS Storage

Brand: Qnap
processor: Alpine AL214, 4-core, 1.7GHz processor
CPU Architecture: 32-bit ARM
Memory: 1GB DDR3 Memory
Form Factor: Tower
Drive Bay: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 169 × 160 × 219 mm
Power Supply: 90W Adapter, 100-240V
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 453D 4GB NAS Storage

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 170 × 226 mm
Power Supply: 90W adapter, 100-240V
Warranty: 3 years Standard Warranty

View Specification

Qnap TVS 872XT i5 16GB NAS Storage

Brand: Qnap
processor: Intel Core i5-8400T 6-core 1.7 GHz Processor, Max turbo to 3.3 GHz processor
CPU Architecture: 64-bit x86
Memory: 16 GB SODIMM DDR4 (2 x 8 GB) Memory
Graphic Card: Intel UHD Graphics 630
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.2 × 329.3 × 279.6 mm
Thunderbolt Port: 2 (Thunderbolt 3)
M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x2 slots
Power Supply: 250W, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 60Hz)
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 653D 4GB NAS Storage

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 235 × 226 mm
Power Supply: 120W adapter, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 4096 x 2160 60Hz)
Warranty: 3 years Standard Warranty

View Specification

Qnap TS 653D 8GB NAS Storage

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 8 GB SO-DIMM DDR4 (2 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: Tower
Drive Bay: 6 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 168 × 235 × 226 mm
Power Supply: 120W adapter, 100-240V
HDMI Output: 1, HDMI 2.0 (up to 4096 x 2160 60Hz)
Warranty: 3 years Standard Warranty

View Specification

Qnap TS 832PX 4GB NAS Storage

Brand: Qnap
processor: AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core 1.7GHz processor
CPU Architecture: 64-bit ARM
Memory: 4 GB SODIMM DDR4(1 x 4 GB) Memory
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 188.2 × 329.3 × 280.8 mm
Power Supply: 250W, 100-240V AC, 50/60Hz, 3.5A
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 873 4GB NAS Storage

Brand: Qnap
processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor (Turbo Core to 3.4 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (2 x 2 GB) Memory
Form Factor: Tower
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/scale
M.2 SSD Slot: 2 x M.2 2280/2260 SATA 6Gb/s slots
Dimensions: 188.2 × 329.3 × 279.6 mm
Power Supply: 250W, 100-240V AC, 50-60Hz, 3.5A
Warranty: 2 years Standard Warranty

View Specification

Qnap TS 453DU RP 4GB NAS Storage

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: 1U Rackmount
Drive Bay: 4 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 43.3 × 482.6 × 508.7 mm
Power Supply: 250W (x2), 100-240V
HDMI Output: 1, HDMI 1.4b
Warranty: 3 years Standard Warranty

View Specification

Qnap TS 853DU RP 4GB NAS Storage

Brand: Qnap
processor: Intel Celeron J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) processor
CPU Architecture: 64-bit x86
Memory: 4 GB SO-DIMM DDR4 (1 x 4 GB) Memory
Graphic Card: Intel HD Graphics 600
Form Factor: 2U Rackmount
Drive Bay: 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 88.7 × 482.2 × 423.8 mm
Power Supply: 300W (x2), 100-240V
HDMI Output: 1, HDMI 1.4b
Warranty: 3 years Standard Warranty

View Specification

Qnap TS 1673U RP 16GB NAS Storage

Brand: Qnap
processor: AMD R-Series RX-421ND quad-core 2.1 GHz processor (turbo core to 3.4 GHz) processor
CPU Architecture: 64-bit x86
Memory: 16 GB UDIMM DDR4 (2 x 8 GB) Memory
Form Factor: 3U Rackmount
Port: 2 x 10GbE SFP+ port
M.2 SSD Slot: 2 x M.2 2280 SATA 6Gb/s slots
Drive Bay: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Dimensions: 132 × 482 × 536 mm
Power Supply: 500W (x2), 100-240V AC, 50-60Hz, 7-3.5A
Warranty: 3 years Standard Warranty

View Specification

Qnap TDS 16489U R2 64GB NAS Storage

Brand: Qnap
processor: E5-2620 v4 8-core 2.1 GHz x2 processor
CPU Architecture: 64-bit x86
Memory: 64GB RDIMM DDR4 (8 x 8GB) Memory
Form Factor: 3U Rack Mount
Port: 4 x 10GbE SFP+ port
Drive Bay: Front: 16 x 3.5-inch, Rear: 4 x 2.5-inch
Dimensions: 130.8 × 444 × 744 mm
Warranty: 5 years Standard Warranty

View Specification

Hp Showroom in Hyderabad - Qnap Storage
