Package Includes
• Polycom EagleEye Producer
• Power supply
• Necessary cables for Polycom EagleEye III, EagleEye IV
camera connection

Compatible IC cameras
• Polycom EagleEye I, II, III
• Polycom EagleEye IV

Compatible endpoints
• Polycom? RealPresence? Group Series 300, 310, 500, 550, 700

Connections
• 1x HDCI (Out to Polycom RealPresence Group Series)
• 1x HDCI to HDCI to EagleEye III or 1 HDCI to Mini-HDCI
(Optional EagleEye IV)
• USB for local upgrades
• Power

Camera characteristics
• Horizontal field of view 80 degrees
• Vertical manual tilt

Recommended room size
• Participants should be within 19.6 ft / 6m of EagleEye Producer
• Performance may vary in different room configurations

Environmental specifications:
• Operating temperature: 0–40?C
• Operating humidity: 15–80%
• Non-operating temperature: -40–70?C
• Non-operating humidity (non-condensing): 5–95%
• Maximum Altitude: 10,000 ft

Power rating
• Electrical: Auto sensing power supply
• Typical operating voltage/power:
• 22VA typical @ 120V @ 60Hz
• 26VA @ 230V @ 50/60Hz
• Typical BTU/h: 106 BTU/h

Physical size and weight
• 11.3" H x 1.2" W x 4.8" D
• 1.93 lbs.

Warranty
• One-year return to factory parts and labor

Product specifications:
Package includes:

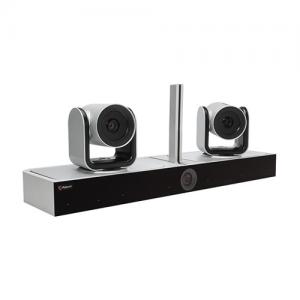

• EagleEye Director II base, power supply and necessary cables
• EagleEye Director II base, power supply, necessary cables and one

EagleEye IV camera
• EagleEye Director II base, power supply, necessary cables and two EagleEye IV cameras

Compatible cameras
• 2x EagleEye? IV 12X camera

Compatible Polycom video systems
• Polycom RealPresence Group 300, 310, 500, 550 and 700**
• Poly G7500

Compatible Skype for Business
video systems
• Certified for Skype for Business
• Microsoft Surface Hub (55” and 84”)
• Skype for Business 2015 and Lync 2013
client running on Microsoft Windows 7, 8, 8.1 or 10

Recommended room size
• Participants should be within 33 feet (10m) of each EagleEye Director II
• Performance may vary in different room configurations

Modes
• Frame speaker
• Frame group

Connections
• 1 x mini-HDCI out to video system
• 2 x USB 2.0
• 1 x 3.5 mm stereo line-in
• 1 x HDMI in
• 1 x HDMI out

Environmental Specifications
• Operating temperature:
0? — 40? C ambient
• Operating humidity: 10—90%
• Storage temperature: -40? — 70? C
• Non-operating humidity : 5% — 95%, non-condensing
• Altitude: 5,000 meters operational, 10,668 meters non-operational (transportable)
• Will operate in florescent lighting environments worldwide

Physical characteristics
• Base box with vertical array 11.14” x 21.57” x 5.5” (H x W x D)
• 283 mm x 548 mm x 140.5 mm (H x W x D)
• Weight: 4.7kg with two EagleEye IV cameras

Electrical
• Auto sensing power supply
• Typical operating voltage/power
- 100 — 240VAC, 50/60Hz Output 12V@5A

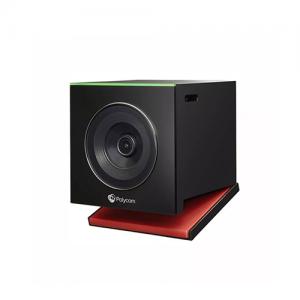

EagleEye Cube Features
• Integrated privacy shutter
• 4K Sensor
• 1080p60 (HDCI) / 4K30 (USB)
• Mechanically adjustable tilt
• Anti-flicker compensation
• Muti-color LED

CAMERA
• 1 /2.5’’ CMOS
• f/2.0 aperture (HDCI)
• f/2.8 aperture (USB)
• 4K sensor
• Min Illumination 50 lux
• Horizontal FOV - 110? / 120? DFOV (HDCI)
111? / 121? (USB)
• Vertical FOV - 66? (HDCI) 75? (USB)
• Automatic exposure and white balance
• Lens Focal Length - f=3mm (HDCI), 2.29mm
(USB)
• Focus - Fixed
• 5x electronic zoom (2.0x lossless)
• Vertical tilt – adjustable via mount

AUDIO
• 2 built-in microphones
INPUT/OUTPUT
• USB 3.0
• HDCI, 60 pin (incl: power, Comm,
IR, HDMI, audio)

COMPATIBLE PRODUCTS
• Poly G7500 2.1 or above (USB)
• Visual+ 5.9.0.1 and Companion App 1.2.0
(USB)
• Polycom Trio? 8500* with VisualPro 6.2.1
or above (HDCI)
• Polycom Trio? 8800* with VisualPro 6.2.1
or above (HDCI)
• RealPresence Group Series with 6.2.1
or above (HDCI)

CAMERA FIRMWARE UPDATES
The EagleEye Cube HDCI camera receives
firmware updates through software updates
through connected hardware. USB version
updates through Companion App, Visual+ or
Windows Software Update Utility.

AUTO GROUP FRAMING MODES
• Frame Speaker (USB only), Frame Group
or off
• Framing size: Tight, Medium, Wide
• Framing speed: Fast, Normal, Slow
DIMENSIONS (W X H X D)
• 79.75 x 81.08 x 80.5 mm
POWER CONSUMPTION
• 4 Watts, 0.34A, DC12V (HDCI)
• 0.9A, 5V (USB)

SAFETY
• NRTL Safety
• CB Safety

OTHER FEATURES
• Participant count
• Skin enhancement
• Wide dynamic range
• Lens distortion correction (HDCI)

TEMPRATURE RANGE
• Operating: 0?C to 45?
• Non-operating: -40?C to 70?C

HUMIDITY RANGE
• Operating: 15%-80%
• Non-operating: 5% to 95%
(non-condensing)

ALTITUDE RANGE
• Operating: -50 feet to 10K feet
• Non-operating: -50 feet to 35K feet

WARRANTY
One (1) year

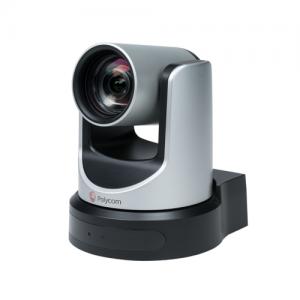

• Camera Type:1/2.7" CMOS
• H/V Resolution:1920 x 1080
• Output:1080p30/25, 720p30/25, 960x540p30/25, 640x360p30
• Compression:H.264 SVC/AVC
• Lens Focal Length:f=3.5mm to 42.3mm
• Lens F:1.8-2.8
• Zoom:12x optical
• Focus:Auto
• Horizontal Field of View:6.9 - 72.5?
• Vertical Field of View:3.9- 44.8?
• Min. Illumination:0.5Lux @ (F1.8, AGC ON)
• Exposure:Auto-iris, AGC
• SNR:= 55dB
• Pan range:+/- 170
• Tilt range:+90/-30
• I/O:USB 2.0
• Power consumption:12v @ 1.5A power
• Dimensions (W x H x D):141.5 x 175.9 x 151.8 mm
• Video system compatibility:Certified Skype Room System, Polycom Trio 8800 Visual+
• Room Size:Small, medium, large
• Warranty:One-year return to factory parts and labor
