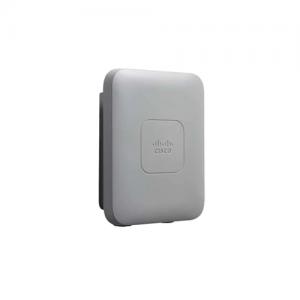

Cisco Aironet 1540 Series Outdoor Access Point

Aironet 1542I
Semi omnidirectional antenna
802.11ac Wave 2 support
MU MIMO 2x2, 2 spatial streams
Flexible deployment with Mobility Express
as traditional APs, and in mesh networks
Aironet 1542D
Directional antenna
802.11ac Wave 2 support
MU-MIMO 2x2, 2 spatial streams
Flexible deployment with Mobility Express
as traditional APs, and in mesh networks
802.11ac Wave 1 and 2 capabilities
1542I/D: 2 x 2 MIMO with two spatial streams
Multiuser and single user MIMO
Maximal Ratio Combining (MRC)
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80-MHz channels
PHY data rates up to 867 Mbps (80 MHz in 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11n (and related) capabilities
1542I/D: 2 x 2 MIMO with two spatial streams
MRC
20- and 40-MHz channels (40 MHz in 5 GHz)
PHY data rates up to 300 Mbps
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Data rates supported: 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates on 2.4 and 5 GHz
Maximum conducted transmit power
1542I
2.4 GHz: 27 dBm with 2 antennas
5 GHz: 25 dBm with 2 antennas
1542D
2.4 GHz: 27 dBm with 2 antennas
5 GHz: 25 dBm with 2 antennas
Interfaces
WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
Management console port (RJ-45)
Multicolor LED/Reset button
Wireless Access
802.11i, Wi-Fi Protected Access 2 (WPA2), and WPA
802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP -PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS
(EAP-TTLS), EAP-Subscriber Identity Module (EAP-SIM), and Cisco LEAP
VPN pass-through
IP Security (IPsec)
Layer 2 Tunneling Protocol (L2TP)
MAC address filtering
Uplink options: Ethernet and wireless mesh
Dimensions(L x W x H):
1542I/D: 7.9 x 5.9 x 2.4 in.(20 x 15 x 6.1 cm)
Weight
1542I/D: 2.75 lb (1.25 kg)
Warranty: 1 year limited hardware warranty

View Specification

Cisco Aironet 1560 Series Outdoor Access Point

Aironet 1562I
802.11ac Wave 2 support
3x3 MU-MIMO, 3 spatial streams
Internal antenna
Aironet 1562E
802.11ac Wave 2 support
2x2 MU-MIMO, 2 spatial streams
Flexible antenna ports
External antenna
Aironet 1562D
802.11ac Wave 2 support
2x2 MU-MIMO, 2 spatial streams
Directional antenna
802.11ac Wave 1 and 2 capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D 2 x 2 MIMO with two spatial streams
Multi and single user MIMO
Maximal Ratio Combining (MRC)
802.11ac beamforming (transmit beamforming)
20-, 40-, and 80 MHz channels
PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
Packet aggregation: A MPDU (Tx/Rx) and A MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11n (and related) capabilities
1562I: 3 x 3 MIMO with three spatial streams
1562E/D: 2 x 2 MIMO with two spatial streams
MRC
20- and 40 MHz channels
PHY data rates up to 450 Mbps
Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
802.11 DFS
CSD support
Data rates supported
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Interfaces
WAN port 10/100/1000BASE-T Ethernet, autosensing (RJ-45), PoE in
SFP port (fiber or electrical)
Management console port (RJ-45)
Multicolor LED
DC power input
Reset button
Uplink options
Ethernet, SFP, and wireless mesh (future availability)
Dimensions(L x W x D)
1562I: 9.0 x 6.8 x 3.9 in (22.9 x 17.1 x 9.8 cm)
1562D: 9.0 x 6.8 x 4.3 in (22.9 x 17.1 x 10.9 cm)
1562E:: 9.0 x 6.8 x 3.9 in (22.9 x 17.1 x 9.8 cm)
Weight
1562I: 5.6 lb (2.5 kg)
1562D: 5.7 lb (2.6 kg)
1562E: 5.6 lb (2.5 kg)
Warranty: 1 year limited hardware warranty

View Specification

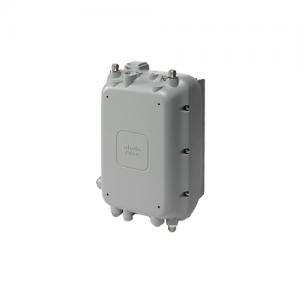

Cisco Aironet 1570 Series Outdoor Access Point

802.11ac support
4x4 MIMO, 3 spatial streams
Flexible antenna port
802.11n Version 2.0 capabilities
4x4 MIMO with three spatial streams (3SS)
Maximal Ratio Combining (MRC)
802.11n and 802.11a/g Beamforming
20- and 40-MHz channels
PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 capabilities
4x4 MIMO with three spatial streams (3SS)
Maximum Ratio Combining (MRC)
802.11ac Beamforming
20-, 40-, and 80-MHz channels
PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)
Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
802.11 Dynamic Frequency Selection (DFS)
Cyclic Shift Diversity (CSD) support
Data Rates Supported: 2.4 GHz - 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
Interface
WAN port 10/100/1000BASE T Ethernet, autosensing (RJ-45)
LAN port 10/100/1000BASE T Ethernet, autosensing (RJ-45)
Fiber SFP
Cable modem: NA-DOCSIS3.0/Euro-DOCSIS3.0/Japan-DOCSIS3.0 (8x4, 16x8, or 24x8)
Management console port (RJ-45)
Four multicolor LEDs
Reset button
Uplink options
1572EAC Ethernet, Fiber SFP, Wireless Mesh
1572IC Ethernet, Fiber SFP, Wireless Mesh, Cable Modem
1572EC Ethernet, Fiber SFP, Wireless Mesh, Cable Modem
Dimensions (L x W x D): 1572EAC / 1572EC 11.8 x 7.9 x 6.3 in. (30.0 x 20.1 x 16.0 cm)
1572IC 11.8 x 7.9 x 7.9 in. (30.0 x 20.1 x 20.1 cm)
Weight
1572EAC/1572EC 13.5 lbs (6.1 kg)
1572IC 11.5 lbs (5.2 kg)
Pole mounting Kit 1 (PMK1):2.2 lbs (1.0 kg)
Pole mounting Kit 2 (PMK2):4.4 lbs (2.0 kg)
Pole mounting Kit 3 (PMK3):6.1 lbs (2.8 kg)
Cable strand mounting bracket 1 (SMK1): 0.3 lbs (0.2 kg)
Cable strand mounting bracket 2 (SMK2): 0.7 lbs (0.3 kg)
Cable strand mounting bracket 2 (SMK3): 1.2 lbs (0.5 kg)
Warranty: 1 year limited Hardware warranty
