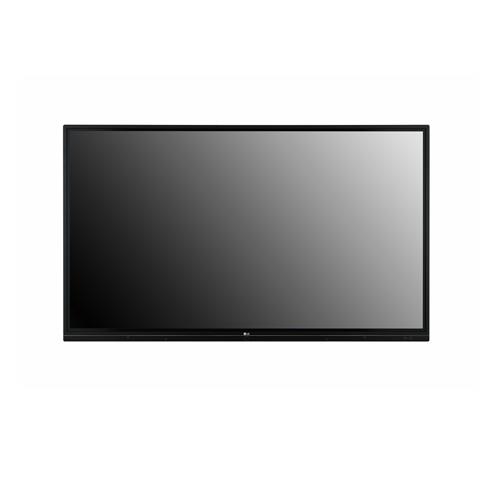

LG 86 inch TR3BF B Interactive LED display

TR3BF Series

Brightness(w/Protection Glass) : 330 cd/m²

Touch Type : IR

Multi Touch Point : Max 20 points / Max 10 writing

Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update),

USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out



PANEL

Screen Size 86 Panel Technology IPS

Back Light Type Direct Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 330

Contrast Ratio 1,100:1 Viewing Angle(H x V) 178 x 178

Response Time 8 ms (G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape



CONNECTIVITY

(Input) Video / Audio HDMI (3), RGB / Audio In (Input) External Control RS232C In, RJ45

(Input) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) (Output) Video / Audio HDMI (1), Optical Output / Audio Out



MECHANICAL SPECIFICATION

Bezel Color Black Bezel Width(Off Bezel) Top/Right/Left:17.7mm, Bottom:45.7mm

Monitor Dimension (W × H × D) 1,957×1,160×86mm Weight (Head) 67kg

Carton Dimensions(W x H x D) with pallet 2,230×1,499×285mm Packed Weight 109kg

Handle Yes VESA™ Standard Mount Interface 800 x 600



ENVIRONMENT CONDITIONS

Operation Temperature 0 °C to 40 °C Operation Humidity 10 % to 80 %



POWER

Power Supply 100 -240V~, 50/60Hz Power Type Built-In Power



Power Consumption (Typ. / Max.) 365W / 419W

SOUND

Speaker Built in 24W (12W + 12W)



STANDARD(CERTIFICATION)

Safety CB / NRTL EMC FCC Class "A" / CE

ErP / Energy Star Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes



ACCESSORY

Basic Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control



SPECIAL FEATURE

Embedded Writing Software Yes



TOUCH SPECIFICATIONS

Touch Type IR Available Object Size for Touch Ø3 mm ?

Response Time 60ms ? (Android) / 100ms ? (Windows) Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 4T (Anti-Glare)

Protection Glass Transmission 87% Operating System Support Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Multi touch point Max 20 points / Max 10 writing
