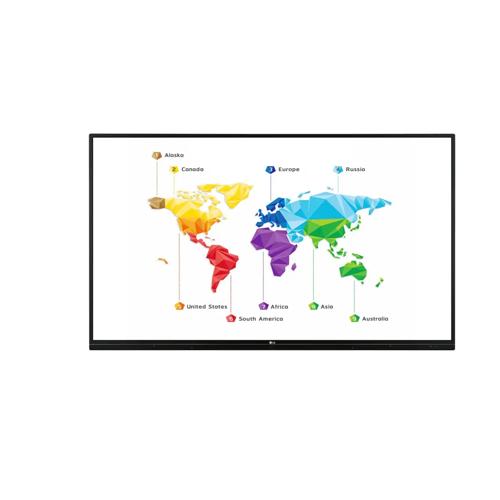

LG 75TR3BF B 75 inch UHD Interactive Digital Board

TR3BF Series
Brightness(w/Protection Glass) : 330 cd/m²
Touch Type : IR
Multi Touch Point : Max 20 points / Max 10 writing
Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update),
USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out

PANEL
Screen Size    75 Panel Technology    IPS
Back Light Type    Direct Aspect Ratio    16 : 9
Native Resolution    3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass)    330
Contrast Ratio    1,100:1 Viewing Angle(H x V)    178 x 178
Response Time    8 ms (G to G) Life Time (Typ.)    30,000 Hrs (Min.)
Operation Hours    16Hr Orientation    Landscape

CONNECTIVITY
(Input) Video / Audio    HDMI (3), RGB / Audio In (Input) External Control    RS232C In, RJ45
(Input) USB    USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) (Output) Video / Audio    HDMI (1), Optical Output / Audio Out

MECHANICAL SPECIFICATION
Bezel Color    Black Bezel Width(Off Bezel)    Top/Right/Left:17.7mm, Bottom:45.7mm
Monitor Dimension (W × H × D)    1,957×1,160×86mm Weight (Head)    67kg
Carton Dimensions(W x H x D) with pallet    2,230×1,499×285mm Packed Weight    109kg
Handle    Yes VESA™ Standard Mount Interface    800 x 600

ENVIRONMENT CONDITIONS
Operation Temperature    0 °C to 40 °C Operation Humidity    10 % to 80 %

POWER
Power Supply    100 -240V~, 50/60Hz Power Type    Built-In Power

Power Consumption (Typ. / Max.)    365W / 419W
SOUND
Speaker    Built in 24W (12W + 12W)

STANDARD(CERTIFICATION)
Safety    CB / NRTL EMC    FCC Class "A" / CE
ErP / Energy Star    Yes(EU Only) / No
MEDIA PLAYER COMPATIBILITY
OPS Type Compatible    Yes

ACCESSORY
Basic    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

SPECIAL FEATURE
Embedded Writing Software    Yes

TOUCH SPECIFICATIONS
Touch Type    IR Available Object Size for Touch    Ø3 mm ?
Response Time    60ms ? (Android) / 100ms ? (Windows) Accuracy    1.5mm
Interface    USB 2.0 Protection Glass Thickness    4T (Anti-Glare)
Protection Glass Transmission    87% Operating System Support    Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
Multi touch point    Max 20 points / Max 10 writing
