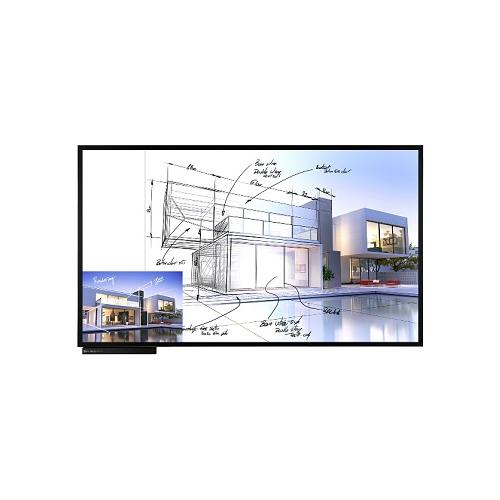

LG 75TC3D Interactive Digital Board

Brightness: 500 cd/?

Touch Type: P-Cap(Ag Metal Mesh)

Touch Point: Max. 40 points

Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

PANEL

Screen Size 75” Native Resolution 3,840 x 2,160 (UHD)

Brightness (Module, cd/?) 500

CONNECTIVITY

Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)

External Control RS232C in/out, RJ45 in

PHYSICAL SPECIFICATION

Bezel Width 41.6 mm(T/L/R/B) Monitor Dimension (W x H x D) 1,732.8 x 1011.1 x 69.7 mm (w/o Handle)

Weight (Head) 74.5 kg Carton Dimensions (W x H x D) 1,870 x 1,264 x 285 mm(with pallet)

Packed Weight 94 kg VESA™ Standard Mount Interface 600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

POWER CONSUMPTION

Typ. = 240 W Smart Energy Saving = 170 W

STANDARD(CERTIFICATION)

Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC

SOFTWARE COMPATIBILITY

Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link

ACCESSORY

Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

TOUCH

Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm

Accuracy 2 mm Interface USB 2.0

Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max. 40 Points
