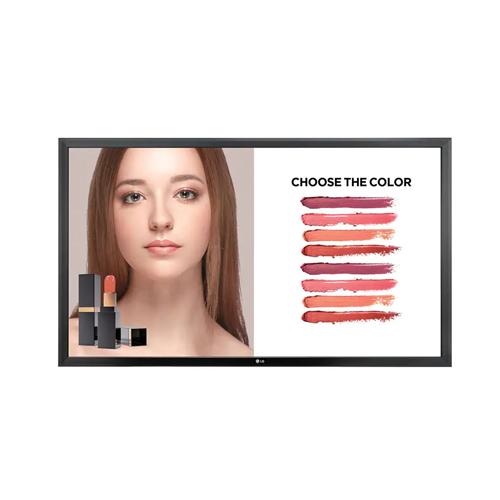

LG 32TA3E B Built in Interactive Touch Display

Floating Tool Bar

SoC and LG webOS

IDB App for Efficient Collaboration

LG FHD Technology

LG IPS Panel with Wide Viewing Angles and True Color

Auto Signal/Touch Switching



PANEL

Screen Size 81.28Cm (32) Panel Technology IPS

Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD)

Brightness (cd/m²) 450 Viewing Angle (HxV) 178 x 178

Response Time 12ms (G to G BW), 9.0ms (WOT) Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer, (Haze 1%(Typ.))

Life Time (Typ.) 50,000Hrs Operation Hours 24Hrs

Orientation Landscape & Portrait



CONNECTIVITY

Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0 Output DP, Audio Out

External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In



PHYSICAL SPECIFICATION

Bezel Color Black Bezel Width 32.7 mm (Even)

Monitor Dimension (W x H x D) 1,278 x 748.8 x 71.4 mm Weight (Head) 28.0 kg

Carton Dimensions (W x H x D) 1,410 x 880 x 207 mm Packed Weight 33kg

VESA™ Standard Mount Interface 300 x 300 mm



SPECIAL FEATURES

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving,

Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning,

Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected**



ENVIRONMENT CONDITIONS

Operation Temperature 0°C to 40°C Operation Humidity 10% to 80%



POWER

Power Type Built-in Power Power Supply 100 -240V~, 50/60Hz

Power Consumption Typ./Max. 100W/115W Power Consumption Smart Energy Saving 70W



STANDARD(CERTIFICATION)

Safety UL/cUL/CB/TUV/KC EMC FCC Class "A"/CE/KCC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)



SOFTWARE COMPATIBILITY

Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Link



ACCESSORY

Basic Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)



TOUCH

Touch type IR (Scattering) Scan Time 10 ms ?

Interface USB 2.0 Protection Glass Thickness 2.8T (Anti-Glare)

Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later) Multi touch point Max 10 Points
