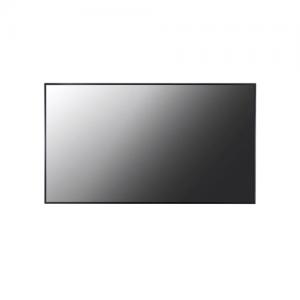

LG 65UH5F B 65 inch Monitor
- Brightness(Typ.): 500 cd/m²
- Bezel: 9.9 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 65 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ cd/m²): 500 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze): Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1095mm x 175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown): Max 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ./Max: 120W/165W Smart Enegy Saving 84W
- Certification
- Safety CB / NRTL EMC FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+Signage365Care Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

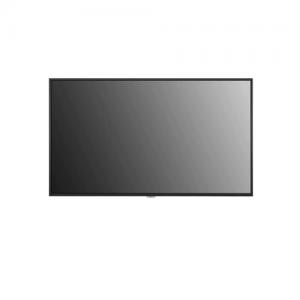

LG 55UH5F B 55 inch Digital Signage Monitor
- Brightness(Typ.): 500 cd/m²
- UHD Resolution: 3840 x 2,160 (UHD, RGB)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 139.7cm (55) Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ.,cd/m²): 500 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze): Haze 3% Life Time (Typ.) 50000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x 175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown) Max 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ./Max: 120W/165W Smart Enegy Saving 84W
- Certification
- Safety CB / NRTL EMC FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

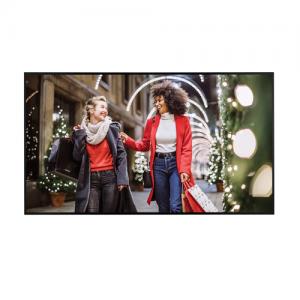

LG 49UH5F B 49 inch Digital Signage Monitor
- Brightness(Typ.): 500 cd/m²
- Bezel: 9.9 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 49 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ cd/m²): 500 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze) Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x 175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown) Max 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ./Max: 120W/165W Smart Enegy Saving 84W
- Certification
- Safety CB / NRTL EMC FCC Class A / CE / KC
- ErP / Energy Star Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

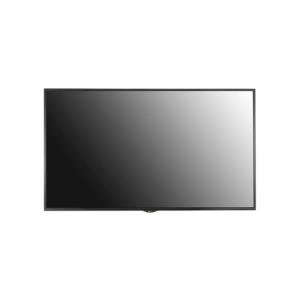

LG 43UH5F B Series 43 inch Digital Signage Monitor
- Brightness(Typ.): 500 cd/m²
- Bezel: 8.4 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 43 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ.,cd/m²): 500 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze): Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x 175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown) Max 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ./Max: 120W/165W Smart Enegy Saving 84W
- Certification
- Safety CB / NRTL EMC: FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

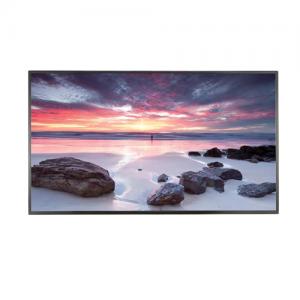

LG 65UH7F B Series UHD Slim Indoor Digital Display
- Brightness(Typ.): 700 cd/m²
- Bezel: 9.9 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 65 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ cd/m²): 700 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze): Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown) Max 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 130W / 180W Smart Energy Saving 100W
- Certification
- Safety CB / NRTL EMC FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

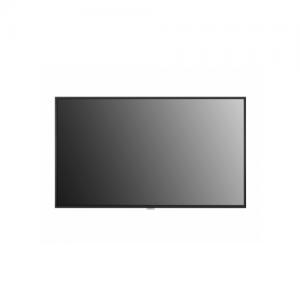

LG 55UH7F B Series UHD Slim Indoor Digital Display
- Brightness(Typ.): 700 cd/m²
- Bezel: 9.9 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 55 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ.,cd/m²): 700 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze): Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt (Facedown) Max: 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 130W / 180W Smart Energy Saving 100W
- Certification
- Safety CB / NRTL EMC: FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)

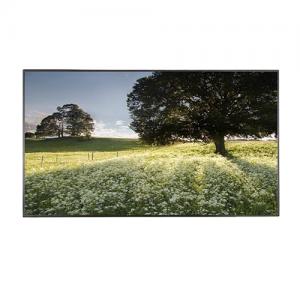

LG 49UH7F B Series UHD Slim Indoor Digital Display
- Brightness(Typ.): 700 cd/m²
- Bezel: 9.9 mm (T/R/L), 14.4 mm (B)
- Depth: 39.9 mm
- Interface: HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- 30º Tilting Installation
- Panel
- Screen Size: 49 Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD, RGB)
- Brightness(Typ.,cd/m²): 700 Contrast Ratio 1,100:1
- Viewing Angle (H x V): 178 x 178 Response Time 8ms (G to G)
- Surface Treatment (Haze) Haze 3% Life Time (Typ.) 50,000 Hrs
- Operation Hours 24 Hrs Orientation Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 9.9mm(T/R/L), 14.4mm(B)
- Monitor Dimension (W × H × D): 1,453.3mm x 844mm x 39.9mm Weight (Head) 28.2 kg
- Carton Dimensions (W × H × D): 1,600mm x 1,095mm x175mm Packed Weight 32.5 kg
- Handle No VESA Standard Mount Interface 300 x 300
- Tilt: (Facedown) Max. 30º In conditions within 30ºC temperature, 50% humidity IP Rating IP5x
- Environment ConditionS
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 130W / 180W Smart Energy Saving 100W
- Certification
- Safety CB / NRTL EMC: FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / Yes (Energy Star 8.0)
- Media Player Compatibility
- OPS type compatible: Yes
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Signage365Care: Yes
- Accessory: Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender Optional
- Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSF)
LG 55XF3E B Open Frame Outdoor Signage Display
- Brightness: 3,000cd/m² (Typ.)
- Life Time: 50,000 hours
- Bezel: 9.9mm (L/R), 12mm (T/B)
- Depth: 106.8mm
- Interface: HDMI (2)/DP/DVI-D/RJ45/RS232C/USB/External speaker out (L/R)
- Panel
- Screen Size: 139.7cm Resolution 1,920 x 1,080 (FHD)
- Brightness (Typ cd/m²): 3000
- Connectivity
- Input: HDMI (2), DP, DVI-D, Audio, USB Output DP, External Speaker
- External Control: RS232C In/Out, RJ45 In, IR Receiver In
- Physical Specfication
- Bezel Width: 9.9mm (L/R),12mm (T/B) Monitor Dimension (W x H x D) 1,235.5 x 709.4 x 106.8 mm
- Weight (Head): 26.5kg
- Environment Condition
- Operation Temperature: 0? to 50? (w/o Direct Sunlight or with Cooling Systems in Direct Sunlight) Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-in Power
- Power Consumption
- Typ./Max: 250W/300W Smart Energy Saving 120W
- Standard(Certification)
- Safety IEC 60950-1/EN 60950-1/UL 60950-1 EMC FCC Class A/CE/KC
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control+/Control
- Accessory: Basic Remote Controller, Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG) Optional Wi-Fi Dongle (AN-WF500)
LG 98UH5E B Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.9 mm (Even, Off-Bezel)
- Depth: 69.4 mm (without Handle)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR/ External Speaker Out
- Panel
- Screen Size: 98 (249cm) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 86UH5E B Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.3mm (Even, Off-Bezel)
- Depth: 60.6mm (without Handle and Logo)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR
- Built in Speaker(10W+10W)
- Panel
- Screen Size: 218.44cm (86) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 75UH5E B Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.3mm (Even, Off-Bezel)
- Depth: 60.6mm (without Handle and Logo)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR
- Built in Speaker(10W+10W)
- Panel
- Screen Size: 75 (190.5cm) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 65UH5E B Series UHD Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.3mm (Even, Off-Bezel)
- Depth: 60.6mm (without Handle and Logo)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR
- Built in Speaker(10W+10W)
- Panel
- Screen Size: 65 (165,.1cm) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 55UH5E B UHD Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.3mm (Even, Off-Bezel)
- Depth: 60.6mm (without Handle and Logo)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR
- Built in Speaker(10W+10W)
- Panel
- Screen Size: 55 (139.7cm) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 49UH5E B Series UHD Digital Signage Display
- Brightness(Typ.): 500 cd/m²
- Bezel: 14.3mm (Even, Off-Bezel)
- Depth: 60.6mm (without Handle and Logo)
- Interface: HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR
- Built in Speaker(10W+10W)
- Panel
- Screen Size: 49 (124,46cm) Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 500
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable), External Speaker
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Width: 14.9 mm (Even) Off-Bezel Monitor Dimension (W × H × D) 2,191.8 x 1,246.8 x 69.4 mm (without Handle)
- Weight (Head): 88kg Carton Dimensions (W × H × D) 2,342 x 1,386 x 402 mm
- Packed Weight: 123kg VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 420W/560W Smart Energy Saving 294W
- Certification
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP/Energy Star Yes(EU Only) / N/A
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)

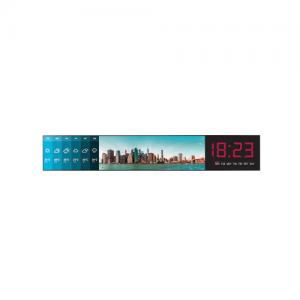

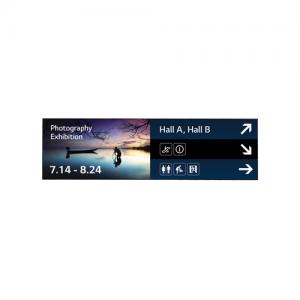

LG 86BH7C B Ultra Stretch Signage Display
- Brightness: 700 (cd/m²)
- Bezel Width: 4.4mm(L/R), 5.9mm(U/D)
- Depth: 81.7mm
- Interface: HDMI, DP, RJ45, IR, USB2.0, USB3.0, Daisy Chain (DP Out, RS232C In/Out, RJ45)
- Panel
- Screen Size: 218.44cm (86) Resolution 3,840 x 600 (UHD)
- Brightness (cd/m²): 700
- Connectivity
- Input: HDMI, DP, OPS, DVI-D, USB2.0, USB3.0, SD Card Output Analog Audio
- External Control: RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
- Physical Specification
- Bezel Width: 4.4 mm (L/R), 5.9 mm (U/D) Monitor Dimension (W x H x D) 2158.3 x 348.5 x 81.7
- Weight (Head): 20.5kg
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10 % to 80 %
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built in Power
- Standard(Cerfication)
- Safety UL/cUL/CB/TUV/KC EMC FCC Class A/CE/KCC
- ErP/Energy Star NA/NA
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable No
- Software Compatibility
- SuperSign-w lite Yes SuperSign-c Yes
- Accessory: Basic Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M)
- Owners Manual (Website upload) Optional AN-WF500(WiFi USB Dongle), MP700, KT-OPSA(OPS KIT), KT-SP0(RGB Sensor) Stand is not available
LG 86UH5C Split Screen Ultra HD Signage Display
- Ultra HD Resolution (3840x2160)
- Brightness: 500cd/m2
- Reduced Power Consumption by M+
- Built in WIFI
- Panel
- Screen Size: 86 (218.44 cm) diagonal Aspect Ratio 16 : 9
- Brightness: 500cd/m² Panel Technology IPS
- Native Resolution: 3840 x 2160 (UHD) Response Time 8 ms(G to G)
- Viewing Angle (HxV): 178 x 178 Dynamic CR 1,000,000:1
- Contrast Ratio: 1,100:1
- Connectivity(INPUT)
- Digital(HDMI): Yes (1), HDMI /HDCP2.2 Digital(DP) Yes (1), DP /HDCP1.3
- Digital(DVI-D): Yes (1), HDCP2.2 Audio In Yes (1), RGB/DVI
- External Control(RS232C IN): Yes (1) External Control(RJ45) Yes (1)
- External Control(IR receiver): Yes (1) External Control(Pixel Sensor) Yes (1)
- USB(USB3.0): Yes (1) SD Card(SDHC/Full Size)Yes (1)
- HDTV Formats HDMI : 720p, 1080i, 1080p, 2160p
- Connectivity(OUTPUT)
- Audio Out: Yes (1) Externel Speaker Out O(L/R), 6 ohm
- External Control(RS232C Out): Yes (1) DP Out Yes (1), SST/DP1.2a
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 12.1mm(T), 12.6mm(R/L), 15.7mm(B)
- VESA Standard Mount Interface: 300 x 300 Monitor Dimension(W x H x D) 1239.8mm x 725.2mm x 38.6mm
- Monitor with Optional Stand & Speaker Dimensions(W x H x D): 1239.8mm x 788.8mm x 298.3mm Carton Dimensions(W x H x D) 1330mm x 807mm x 170mm
- Weight(Head): 16.6Kg Weight(Head+Stand+Speaker) 18.8Kg
- Weight(Head+Stand): 18.1kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- USB Cloning: Logo image download, Sent to USB, Receive from USB Tile Mode Yes(Up to 15 x 15)
- Contents scheduling: USB, Internal memory, SD Card Natural mode Tile mode Yes
- Source Selection: RGB, HDMI, DVI, DP, OPS, USB, SD Card Brightness/Contrast/Backlight Yes
- Position/Size: Yes Auto Config/Phase Yes
- Calibration mode: Yes DST Yes
- Sync mode: Time sync, Content sync PM mode Yes
- Firamware update (LAN) Yes Local time auto setting Yes
- HDMI-CEC: Yes Wake on LAN Yes
- Digital Audio input: Yes Intelligent Auto Yes
- Advanced: Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma Time Clock, On/Off Timer, Auto Off, Automatic Standby
- Input Label: Yes(PC/DTV) Power on Status Standby, PWR, LST
- Key operation: IR operation, Local key operation DPM wake up Yes (Analog: Sync only, Digital: Clock / Clock+Data selectable)
- DPM Select: Yes Energy Saving Yes(Auto, Minimum, Medium, Maximum, Screen Off)
- Internal Memory: 8GB(System 4GB + Available 4GB) WiFi 802.11n combo built-in
- File Play with USB: Yes Smart Energy Saving Yes
- Power Consumption
- Smart Enegy Saving: 80W Typ 116W
- Power off: 0.5W
- Software Compatibility
- SuperSign w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-in Power
- Accessory: Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover Optional Speaker(SP-5200), Stand(ST-651T), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA), HD Base T(EB-B100)
LG 75UH5C Ultra HD Signage Display
- Ultra HD Resolution (3840x2160)
- Brightness: 500cd/m2
- Reduced Power Consumption by M+
- Built in WIFI
- Panel
- Screen Size: 75 (190.5cm) diagonal Aspect Ratio 16 : 9
- Brightness: 500cd/m² Panel Technology IPS
- Native Resolution: 3840 x 2160 (UHD) Response Time 8 ms(G to G)
- Viewing Angle (HxV): 178 x 178 Dynamic CR 1,000,000:1
- Contrast Ratio: 1,100:1
- Connectivity(INPUT)
- Digital(HDMI): Yes (1), HDMI /HDCP2.2 Digital(DP) Yes (1), DP /HDCP1.3
- Digital(DVI-D): Yes (1), HDCP2.2 Audio In Yes (1), RGB/DVI
- External Control(RS232C IN): Yes (1) External Control(RJ45) Yes (1)
- External Control(IR receiver): Yes (1) External Control(Pixel Sensor) Yes (1)
- USB(USB3.0): Yes (1) SD Card(SDHC/Full Size) Yes (1)
- HDTV Formats: HDMI : 720p, 1080i, 1080p, 2160p
- Connectivity(OUTPUT)
- Audio Out: Yes (1) Externel Speaker Out O(L/R), 6 ohm
- External Control(RS232C Out): Yes (1) DP Out Yes (1), SST/DP1.2a
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 12.1mm(T), 12.6mm(R/L), 15.7mm(B)
- VESA Standard Mount Interface: 300 x 300 Monitor Dimension(W x H x D) 1239.8mm x 725.2mm x 38.6mm
- Monitor with Optional Stand & Speaker Dimensions(W x H x D) 1239.8mm x 788.8mm x 298.3mm Carton Dimensions(W x H x D) 1330mm x 807mm x 170mm
- Weight(Head): 16.6Kg Weight(Head+Stand+Speaker) 18.8Kg
- Weight(Head+Stand): 18.1kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- USB Cloning: Logo image download, Sent to USB, Receive from USB Tile Mode Yes(Up to 15 x 15)
- Contents scheduling: USB, Internal memory, SD Card Natural mode Tile mode Yes
- Source Selection: RGB, HDMI, DVI, DP, OPS, USB, SD Card Brightness/Contrast/Backlight Yes
- Position/Size: Yes Auto Config/Phase Yes
- Calibration mode: Yes DST Yes
- Sync mode: Time sync, Content sync PM mode Yes
- Firamware update (LAN): Yes Local time auto setting Yes
- HDMI-CEC: Yes Wake on LAN Yes
- Digital Audio input: Yes Intelligent Auto Yes
- Advanced: Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma Time Clock, On/Off Timer, Auto Off, Automatic Standby
- Input Label: Yes(PC/DTV) Power on Status Standby, PWR, LST
- Key operation: IR operation, Local key operation DPM wake up Yes (Analog: Sync only, Digital: Clock / Clock+Data selectable)
- DPM Select: Yes Energy Saving Yes(Auto, Minimum, Medium, Maximum, Screen Off)
- Internal Memory: 8GB(System 4GB + Available 4GB) Wi-Fi 802.11n combo built-in
- File Play with USB: Yes Smart Energy Saving Yes
- Power Consumption
- Smart Enegy Saving: 80W Typ 116W
- Power off: 0.5W
- Software Compatibility
- SuperSign w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built in Power
- Accessory: Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover Optional Speaker(SP-5200), Stand(ST-651T), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA), HD Base T(EB-B100)
LG 65UH5C Ultra HD Signage Display
- Ultra HD Resolution (3840x2160)
- Brightness: 500cd/m2
- Reduced Power Consumption by M+
- Built in WI-FI
- Panel
- Screen Size: 65 (165.1 cm) diagonal Aspect Ratio 16 : 9
- Brightness: 500cd/m² Panel Technology IPS
- Native Resolution: 3840 x 2160 (UHD) Response Time 8 ms(G to G)
- Viewing Angle (HxV): 178 x 178 Dynamic CR 1,000,000:1
- Contrast Ratio: 1,100:1
- Connectivity(INPUT)
- Digital(HDMI): Yes (1), HDMI /HDCP2.2 Digital(DP) Yes (1), DP /HDCP1.3
- Digital(DVI-D): Yes (1), HDCP2.2 Audio In Yes (1), RGB/DVI
- External Control(RS232C IN): Yes (1) External Control(RJ45) Yes (1)
- External Control(IR receiver): Yes (1) External Control(Pixel Sensor) Yes (1)
- USB(USB3.0): Yes (1) SD Card(SDHC/Full Size) Yes (1)
- HDTV Formats: HDMI : 720p, 1080i, 1080p, 2160p
- Connectivity(OUTPUT)
- Audio Out: Yes (1) Externel Speaker Out O(L/R), 6 ohm
- External Control(RS232C Out): Yes (1) DP Out Yes (1), SST/DP1.2a
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 12.1mm(T), 12.6mm(R/L), 15.7mm(B)
- VESA Standard Mount Interface: 300 x 300 Monitor Dimension(W x H x D) 1239.8mm x 725.2mm x 38.6mm
- Monitor with Optional Stand & Speaker Dimensions(W x H x D): 1239.8mm x 788.8mm x 298.3mm Carton Dimensions(W x H x D) 1330mm x 807mm x 170mm
- Weight(Head): 16.6Kg Weight(Head+Stand+Speaker) 18.8Kg
- Weight(Head+Stand): 18.1kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- USB Cloning: Logo image download, Sent to USB, Receive from USB Tile Mode Yes(Up to 15 x 15)
- Contents scheduling: USB, Internal memory, SD Card Natural mode Tile mode Yes
- Source Selection: RGB, HDMI, DVI, DP, OPS, USB, SD Card Brightness/Contrast/Backlight Yes
- Position/Size: Yes Auto Config/Phase Yes
- Calibration mode: Yes DST Yes
- Sync mode: Time sync, Content sync PM mode Yes
- Firamware update (LAN): Yes Local time auto setting Yes
- HDMI-CEC: Yes Wake on LAN Yes
- Digital Audio input: Yes Intelligent Auto Yes
- Advanced: Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma Time Clock, On/Off Timer, Auto Off, Automatic Standby
- Input Label: Yes(PC/DTV) Power on Status Standby, PWR, LST
- Key operation: IR operation, Local key operation DPM wake up Yes (Analog: Sync only, Digital: Clock / Clock+Data selectable)
- DPM Select: Yes Energy Saving Yes(Auto, Minimum, Medium, Maximum, Screen Off)
- Internal Memory: 8GB(System 4GB + Available 4GB) WiFi 802.11n combo built-in
- File Play with USB: Yes Smart Energy Saving Yes
- Power Consumption
- Smart Enegy Saving: 80W Typ 116W
- Power off: 0.5W
- Software Compatibility
- SuperSign-w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-in Power
- Accessory: Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover Optional Speaker(SP-5200), Stand(ST-651T), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA), HD Base T(EB-B100)
LG 55UH5C Ultra HD Signage Display
- Ultra HD Resolution (3840x2160)
- Brightness: 500cd/m2
- Reduced Power Consumption by M+
- Built in WIFI
- Panel
- Screen Size: 55 (139.7 cm) diagonal Aspect Ratio 16 : 9
- Brightness: 500cd/m² Panel Technology IPS
- Native Resolution: 3840 x 2160 (UHD) Response Time 8 ms(G to G)
- Viewing Angle (HxV): 178 x 178 Dynamic CR 1,000,000:1
- Contrast Ratio: 1,100:1
- Connectivity(INPUT)
- Digital(HDMI): Yes (1), HDMI /HDCP2.2 Digital(DP) Yes (1), DP /HDCP1.3
- Digital(DVI-D): Yes (1), HDCP2.2 Audio In Yes (1), RGB/DVI
- External Control(RS232C IN): Yes (1) External Control(RJ45) Yes (1)
- External Control(IR receiver): Yes (1) External Control(Pixel Sensor) Yes (1)
- USB(USB3.0): Yes (1) SD Card(SDHC/Full Size) Yes (1)
- HDTV Formats: HDMI : 720p, 1080i, 1080p, 2160p
- Connectivity(OUTPUT)
- Audio Out: Yes (1) Externel Speaker Out O(L/R), 6 ohm
- External Control(RS232C Out): Yes (1) DP Out Yes (1), SST/DP1.2a
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 12.1mm(T), 12.6mm(R/L), 15.7mm(B)
- VESA Standard Mount Interface: 300 x 300 Monitor Dimension(W x H x D) 1239.8mm x 725.2mm x 38.6mm
- Monitor with Optional Stand & Speaker Dimensions(W x H x D): 1239.8mm x 788.8mm x 298.3mm Carton Dimensions(W x H x D) 1330mm x 807mm x 170mm
- Weight(Head): 16.6Kg Weight(Head+Stand+Speaker) 18.8Kg
- Weight(Head+Stand): 18.1kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- USB Cloning: Logo image download, Sent to USB, Receive from USB Tile Mode Yes(Up to 15 x 15)
- Contents scheduling: USB, Internal memory, SD Card Natural mode Tile mode Yes
- Source Selection: RGB, HDMI, DVI, DP, OPS, USB, SD Card Brightness/Contrast/Backlight Yes
- Position/Size: Yes Auto Config/Phase Yes
- Calibration mode: Yes DST Yes
- Sync mode: Time sync, Content sync PM mode Yes
- Firamware update (LAN): Yes Local time auto setting Yes
- HDMI-CEC: Yes Wake on LAN Yes
- Digital Audio input Yes Intelligent Auto Yes
- Advanced: Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma Time Clock, On/Off Timer, Auto Off, Automatic Standby
- Input Label: Yes(PC/DTV) Power on Status Standby, PWR, LST
- Key operation: IR operation, Local key operation DPM wake up Yes (Analog: Sync only, Digital: Clock / Clock+Data selectable)
- DPM Select: Yes Energy Saving Yes(Auto, Minimum, Medium, Maximum, Screen Off)
- Internal Memory: 8GB(System 4GB + Available 4GB) Wi-Fi 802.11n combo built-in
- File Play with USB: Yes Smart Energy Saving Yes
- Power Consumption
- Smart Enegy Saving: 80W Typ 116W
- Power off: 0.5W
- Software Compatibility
- SuperSign-w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-in Power
- Accessories: Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover Optional Speaker(SP-5200), Stand(ST-651T), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA), HD Base T(EB-B100)
LG 49UH5C Digital Signage Display
- Ultra HD Resolution (3840x2160)
- Brightness: 500cd/m2
- Reduced Power Consumption by M+
- Built in WIFI
- Panel
- Screen Size: 49 (124.46 cm) diagonal Aspect Ratio 16 : 9
- Brightness: 500cd/m² Panel Technology IPS
- Native Resolution: 3840 x 2160 (UHD) Response Time 8 ms(G to G)
- Viewing Angle (HxV): 178 x 178 Dynamic CR 1,000,000:1
- Contrast Ratio: 1,100:1
- Connectivity(INPUT)
- Digital(HDMI): Yes (1), HDMI /HDCP2.2 Digital(DP) Yes (1), DP /HDCP1.3
- Digital(DVI-D): Yes (1), HDCP2.2 Audio In Yes (1), RGB/DVI
- External Control(RS232C IN): Yes (1) External Control(RJ45) Yes (1)
- External Control(IR receiver): Yes (1) External Control(Pixel Sensor) Yes (1)
- USB(USB3.0): Yes (1) SD Card(SDHC/Full Size) Yes (1)
- HDTV Formats: HDMI : 720p, 1080i, 1080p, 2160p
- Connectivity(OUTPUT)
- Audio Out: Yes (1) Externel Speaker Out O(L/R), 6 ohm
- External Control(RS232C Out): Yes (1) DP Out Yes (1), SST/DP1.2a
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 12.1mm(T), 12.6mm(R/L), 15.7mm(B)
- VESA Standard Mount Interface: 300 x 300 Monitor Dimension(W x H x D) 1239.8mm x 725.2mm x 38.6mm
- Monitor with Optional Stand & Speaker Dimensions(W x H x D): 1239.8mm x 788.8mm x 298.3mm Carton Dimensions(W x H x D) 1330mm x 807mm x 170mm
- Weight(Head): 16.6Kg Weight(Head+Stand+Speaker) 18.8Kg
- Weight(Head+Stand): 18.1kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- USB Cloning: Logo image download, Sent to USB, Receive from USB Tile Mode Yes(Up to 15 x 15)
- Contents scheduling: USB, Internal memory, SD Card Natural mode Tile mode Yes
- Source Selection: RGB, HDMI, DVI, DP, OPS, USB, SD Card Brightness/Contrast/Backlight Yes
- Position/Size: Yes Auto Config/Phase Yes
- Calibration mode: Yes DST Yes
- Sync mode: Time sync, Content sync PM mode Yes
- Firamware update (LAN): Yes Local time auto setting Yes
- HDMI-CEC: Yes Wake on LAN Yes
- Digital Audio input: Yes Intelligent Auto Yes
- Advanced: Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma Time Clock, On/Off Timer, Auto Off, Automatic Standby
- Input Label: Yes(PC/DTV) Power on Status Standby, PWR, LST
- Key operation: IR operation, Local key operation DPM wake up Yes (Analog: Sync only, Digital: Clock / Clock+Data selectable)
- DPM Select: Yes Energy Saving Yes(Auto, Minimum, Medium, Maximum, Screen Off)
- Internal Memory: 8GB(System 4GB + Available 4GB) Wi-Fi 802.11n combo built-in
- File Play with USB: Yes Smart Energy Saving Yes
- Power Consumption
- Smart Enegy Saving: 80W Typ 116W
- Power off: 0.5W
- Software Compatibility
- SuperSign-w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-in Power
- Accessories: Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory cover Optional Speaker(SP-5200), Stand(ST-651T), Pixel sensor(KT-SP0), Media player, Wall bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSA), HD Base T(EB-B100)
LG 88BH7D Ultra Stretch Digital Signage Display
- Ultra Stretch Signage
- Brightness: 700 cd/m2
- Aspect Ratio: 32:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 103.9 mm
- Interface: HDMI (3), DP, RJ45, IR, USB (2), SD Card, RS232C
- Panel
- Screen Size: 88 inch Resolution 3,840 x 1,080 (UHD)
- Brightness (Typ., cd/m²): 700
- Connectivity
- Input: HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card Output DP, Analog Audio
- External Control: RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor
- Physical Specification
- Bezel Width: 4.4 mm (L/R), 5.9 mm (U/D) Monitor Dimension (W x H x D) 2,158.3 x 611.2 x 103.9 mm
- Weight (Head): 38 kg Carton Dimensions (W x H x D) 2,274 x 717 x 212 mm
- Packed Weight: 53.2 kg (Pallet included)
- Standard(Cerfication)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class A / CE / KCC
- ErP: Yes
- Software Compatibility
- Content Management Software: SuperSign Premium Control and Monitoring Software SuperSign C
- Accessory: Basic Remote Controller (including battery 2 unit), Power Cord, DP (2.6M), RS-232C Cable (3M), Owners Manual (Website upload) Optional AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) Stand is not available
LG 86UM3C UHD Digital Signage Display
- Multiple screen UHD display
- Brightness: 350cd/m2
- Bezel: 14.3 mm Even Bezel
- Depth: 60.6mm(without logo/handle)
- Interface : DP, HDMI, DVI, RS232C, RJ45, Pixel Sensor, SD Card, USB 3.0
- Panel
- Screen Size: 218.44cm (86) Resolution 3,840 x 2,160 (UHD)
- Brightness (cd/?): 350
- Connectivity
- Input: HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card Output DP, Audio
- External Control: RS232C, RJ45, IR Receiver, Pixel Sensor
- Physical Specification
- Bezel Width: On: 15.6mm, Off: 14.3mm Monitor Dimension (W x H x D) 1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
- Weight (Head): 49kg Carton Dimensions (W x H x D) 2,073 x 1,260 x 292mm
- Packed Weight: 61.1kg VESA Standard Mount Interface 600 x 400mm
- Standard(Cerfication)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class A / CE / KCC
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Software Compatibility
- Content Management Software: SuperSign W Control and Monitoring Software SuperSign C
- Accessory: Basic Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover Optional
- Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)
- 24. LG 75UM3C UHD Signage Display
- Multiple screen UHD display
- Brightness: 350cd/m2
- Bezel: 14.3 mm Even Bezel
- Depth: 60.6mm(without logo/handle)
- Interface: DP, HDMI, DVI, RS232C, RJ45, Pixel Sensor, SD Card, USB 3.0
- Panel
- Screen Size: 190.5cm (75) Resolution 3,840 x 2,160 (UHD)
- Brightness (cd/?): 350
- Connectivity
- Input: HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card Output DP, Audio
- External Control: RS232C, RJ45, IR Receiver, Pixel Sensor
- Physical Specification
- Bezel Width: On: 15.6mm, Off: 14.3mm Monitor Dimension (W x H x D) 1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
- Weight (Head): 49kg Carton Dimensions (W x H x D) 2,073 x 1,260 x 292mm
- Packed Weight: 61.1kg VESA Standard Mount Interface 600 x 400mm
- Standard(Cerfication)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class A / CE / KCC
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Software Compatibility
- Content Management Software: SuperSign W Control and Monitoring Software SuperSign C
- Accessory: Basic Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover Optional
- Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)

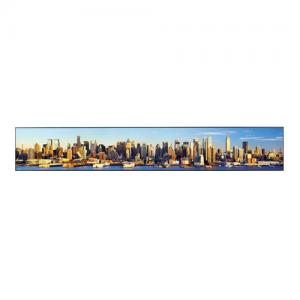

LG 86BH5C Ultra Stretch Digital Signage Display
- 58:9 Extended Wide Format
- Ultra HD Resolution (3840 x 600)
- Brightness: 500cd/m2
- Multiple Screens
- Tiling Scene with Daisy Chain
- Panel
- Screen Size: 86 (218.44 cm) Aspect Ratio 58 : 9
- Surface Treatment: AGP (10% Haze) Brightness 500cd/m2 (Typ)
- Panel Technology:IPS Native Resolution 3840x600
- Response Time: 8ms(G to G BW) typ. Viewing Angle (HxV) 178 x 178
- Lifetime: 50,000 Hrs Orientation Landscape / Portrait
- Dynamic CR: 500,000 : 1 Contrast Ratio 1,100:1(Typ)
- Connectivity(INPUT)
- Digital(HDMI): Yes OPS Yes
- Digital(DVI-D): Yes DP Yes
- USB: 2.0 Yes USB(USB3.0) Yes
- SD Card: Yes
- Connectivity(OUTPUT)
- Analog: Yes Audio Yes
- External Control: RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
- Media Player Compatibility
- OPS type compatible: Yes
- Environment Condition
- Operation Humidity: 10 % to 80 % Operation Temperature 0°C to 40°C
- Physical Specification
- Bezel Color: Black Bezel Width 4.4mm (L/R), 5.9mm (T/B)
- VESATM Standard Mount Interface 200 x 600mm Monitor Dimension(W x H x D) 2,158.3 x 348.5 x 81.7mm
- Packed Weight: 35.4 kg Carton Dimensions(W x H x D) 2,290 x 228 x 479
- Weight(Head): 20.5kg
- Special Features
- Temperature Sensor: Yes Auto Brightness sensor Yes
- Tile Mode: Yes Natural mode Tile mode Yes
- ISM Method: Yes Energy Saving Yes
- PIP/PBP Yes 4K Up Scaling: Yes
- File Play with USB: Yes 8GB (System 4GB + Available 4GB) Yes
- WiFi Dongle Ready: Yes Smart Energy Saving Yes
- Software Compatibility
- SuperSign-w lite: Yes SuperSign-c Yes
- Power
- Power Supply: 100 -240V~, 50/60Hz Power Typ. / Max : 180W/220W
- Consumption: Smart Energy Saving: 30% of typical Power Type Built-in Power
- Standard(Cerfication)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class A / CE / KC
- Accessories: Basic Basic Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M) Owner's Manual (Website upload) Optional
- Optional AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) Stand is not available
LG 98UM3E B Series UHD LED Backlit Digital Display
- Ultra HD Large display
- 98 (248.92cm) Ultra HD Large Display
- Brightness(Typ.): 350 cd/m²
- Bezel: 14.9 mm (Even)
- Depth: 69.4 mm (without Handle)
- Interface : HDMI(3)/DP/DVI-D/USB(2)/RS232C/RJ45/Audio/IR/External Speaker
- Panel
- Screen Size: 248.92cm (98) Panel Technology IPS
- Aspect Ratio: 16:9 Native Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 350 Contrast Ratio 1,300:1
- Dynamic CR: 500,000:1 Viewing Angle (H x V) 178 x 178
- Response Time: 8ms (G to G) Surface Treatment (Haze) Haze 1%
- Life Time (Typ.): 50,000Hrs Operation Hours 24Hrs
- Orientation: Landscape & Portrait
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB (2) Output DP, Audio, External Speaker
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Physical Specification
- Bezel Color: Black Bezel Width 14.9mm (Even)
- Monitor Dimension (W x H x D): 2,191.8 x 1,246.8 x 69.4 mm (without Handle) Weight (Head) 88kg
- Carton Dimensions (W x H x D): 2,342 x 1,386 x 402 mm Packed Weight 123kg
- Handle Yes VESA Standard Mount Interface: 800 x 400 mm
- Environment Condition
- Operation Temperature Range: 0°C to 40°C Operation Humidity Range 10% to 80%
- Power
- Power Supply: 100-240 V~, 50/60 Hz Power Type Built In Power
- Power Consumption
- Typ. / Max: 315W/415W Smart Energy Saving 220.5W
- Standard(Cerfication)
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP / Energy Star: Yes(EU Only) / No
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control+/Control
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable, Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 86UM3E B UHD LED Backlit Digital Display
- Ultra HD Large display
- 98 (248.92cm) Ultra HD Large Display
- Brightness(Typ.): 350 cd/m²
- Bezel: 14.9 mm (Even)
- Depth: 69.4 mm (without Handle)
- Interface: HDMI(3)/DP/DVI-D/USB(2)/RS232C/RJ45/Audio/IR/External Speaker
- Panel
- Screen Size: 218.44cm (86) Panel Technology IPS
- Aspect Ratio: 16:9 Native Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ cd/m²): 350 Contrast Ratio 1,300:1
- Dynamic CR: 500,000:1 Viewing Angle (H x V) 178 x 178
- Response Time: 8ms (G to G) Surface Treatment (Haze) Haze 1%
- Life Time (Typ.): 50,000Hrs Operation Hours 24Hrs
- Orientation: Landscape & Portrait
- Connectivity
- Input: HDMI (3), DP, DVI D, Audio, USB (2) Output DP, Audio, External Speaker
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Physical Specification
- Bezel Color: Black Bezel Width 14.9mm (Even)
- Monitor Dimension (W x H x D): 2,191.8 x 1,246.8 x 69.4 mm (without Handle) Weight (Head) 88kg
- Carton Dimensions (W x H x D): 2,342 x 1,386 x 402 mm Packed Weight 123kg
- Handle Yes VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature Range: 0°C to 40°C Operation Humidity Range 10% to 80%
- Power
- Power Supply: 100-240 V~, 50/60 Hz Power Type Built-In Power
- Power Consumption
- Typ / Max: 315W/415W Smart Energy Saving 220.5W
- Standard(Cerfication)
- Safety CB / NRTL EMC FCC Class A/CE/KC
- ErP / Energy Star: Yes(EU Only) / No
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control+/Control
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable, Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 75UM3E B Digital Signage Display
- Ultra HD Large display
- 98 (248.92cm) Ultra HD Large Display
- Brightness(Typ.): 350 cd/m²
- Bezel: 14.9 mm (Even)
- Depth: 69.4 mm (without Handle)
- Interface: HDMI(3)/DP/DVI-D/USB(2)/RS232C/RJ45/Audio/IR/External Speaker
- Panel
- Screen Size: 190.5cm (75) Panel Technology IPS
- Aspect Ratio: 16:9 Native Resolution 3,840 x 2,160 (UHD)
- Brightness(Typ.,cd/m²): 350 Contrast Ratio 1,300:1
- Dynamic CR: 500,000:1 Viewing Angle (H x V) 178 x 178
- Response Time: 8ms (G to G) Surface Treatment (Haze) Haze 1%
- Life Time (Typ.): 50,000Hrs Operation Hours 24Hrs
- Orientation: Landscape & Portrait
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB (2) Output DP, Audio, External Speaker
- External Control: RS232C In/out, RJ45 (LAN) In, IR In
- Physical Specification
- Bezel Color: Black Bezel Width 14.9mm (Even)
- Monitor Dimension (W x H x D): 2,191.8 x 1,246.8 x 69.4 mm (without Handle) Weight (Head) 88kg
- Carton Dimensions (W x H x D): 2,342 x 1,386 x 402 mm Packed Weight 123kg
- Handle Yes VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature Range: 0°C to 40°C Operation Humidity Range 10% to 80%
- Power
- Power Supply: 100-240 V~, 50/60 Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 315W/415W Smart Energy Saving 220.5W
- Standard(Cerfication)
- Safety CB / NRTL EMCFCC Class A/CE/KC
- ErP / Energy Star: Yes(EU Only) / No
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control+/Control
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable, Regulation Book, Phone to RS232C Gender, EYE-BOLT Optional Speaker (SP-2200)
LG 98UM3F Series UHD LED Backlit Digital Display
- Brightness(Typ.): 350 cd/m²
- Bezel: 14.9 mm (Even,ff-Bezel)
- Depth: 83.8 mm (without Handle)
- Interface: HDMI(3)/ DP/ DVI-D/ USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built in Speaker and Detachable Logo
- Panel
- Screen Size: 98 (248.92cm) Panel Technology IPS
- Aspect Ratio: 16 : 9 Native Resolution 3,840 x 2,160 (UHD)
- Refresh Rate: 120 Hz Brightness(Typ cd/m²) 350
- Contrast Ratio: 1,300:1 Viewing Angle (H x V) 178 x 178
- Response Time: 8ms (G to G) Surface Treatment (Haze) Haze 1%
- Life time (Typ.): 50,000 Hrs Operation Hours 24 Hrs
- Orientation: Portrait & Landscape
- Connectivity
- Input: HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable)
- External Control: RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
- Mechanical Specification
- Bezel Color: Black Bezel Width 14.9 mm (Even) Off-Bezel
- Monitor Dimension (W × H × D): 2,191.8 x 1,246.8 x 83.8 mm (without Handle and Logo) Weight (Head) 81.1 kg
- Carton Dimensions (W × H × D): 2,354 x 1,386 x 420 mm Packed Weight 119 kg
- Handle Yes VESA Standard Mount Interface 800 x 400 mm
- Environment Condition
- Operation Temperature: 0°C to 40°C Operation Humidity 10% to 80%
- Power
- Power Supply: 100-240V~, 50/60Hz Power Type Built-In Power
- Power Consumption
- Typ. / Max: 315 W / 415 W Smart Energy Saving 220.5 W
- Sound: Speaker Built-in (10W×2)
- Certification
- Safety CB / NRTL EMC FCC Class A / CE / KC
- ErP / Energy Star: Yes (EU Only) / No
- Media Player Compatibility
- OPS type compatible: No
- Software Compatibility
- Content Management Software: SuperSign CMS Control and Monitoring Software SuperSign Control/Control+
- Accessory: Basic Remote Controller, Power Cord, QSG, IR/Light Sensor Receiver, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender, Eye-bolt Optional No
LG 75UM3C UHD Signage Display
- Multiple screen UHD display
- Brightness: 350cd/m2
- Bezel: 14.3 mm Even Bezel
- Depth: 60.6mm(without logo/handle)
- Interface: DP, HDMI, DVI, RS232C, RJ45, Pixel Sensor, SD Card, USB 3.0
- Panel
- Screen Size: 190.5cm (75) Resolution 3,840 x 2,160 (UHD)
- Brightness (cd/?): 350
- Connectivity
- Input: HDMI(3), DP, DVI-D, Audio, USB 3.0, SD Card Output DP, Audio
- External Control: RS232C, RJ45, IR Receiver, Pixel Sensor
- Physical Specification
- Bezel Width: On: 15.6mm, Off: 14.3mm Monitor Dimension (W x H x D) 1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
- Weight (Head): 49kg Carton Dimensions (W x H x D) 2,073 x 1,260 x 292mm
- Packed Weight: 61.1kg VESA Standard Mount Interface 600 x 400mm
- Standard(Cerfication)
- Safety UL / cUL / CB / TUV / KC EMC FCC Class A / CE / KCC
- Media Player Compatibility
- OPS type compatible: Yes External Media player Attatchable Yes (MP500/MP700)
- Software Compatibility
- Content Management Software: SuperSign W Control and Monitoring Software SuperSign C
- Accessory: Basic Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover Optional
- Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100), LSW640A/B(Wall Mount)
