Interfaces and Modules :
Hardware Accelerated : 10 GE SFP+ Slots 2
Hardware Accelerated GE SFP Slots : 16
Hardware Accelerated GE RJ45 Ports : 16
GE RJ45 Management / HA Ports : 2
USB Ports (Client / Server) : 1 / 2
Console Port : 1
Onboard Storage : 1x 256 GB SSD
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 4.2 Gbps
NGFW Throughput : 4 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 52 / 52 / 33 Gbps
IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP) : 52 / 52 / 33 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 49.5 Mpps
Concurrent Sessions (TCP) : 11 Million
New Sessions/Second (TCP) : 280,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 25 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 3.6 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 10,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
Application Control Throughput (HTTP 64K) : 10 Gbps
CAPWAP Throughput (1444 byte, UDP) : 11 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches): 1.75 x 17.22 x 18.24
Height x Width x Length (mm) : 44.45 x 437.5 x 463.2
Weight : 20.24 lbs (9.18 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU

Power Input : 100–240V AC, 50–60 Hz, 300 W Redundant
Power Consumption (Average / Maximum): 135 W / 187.2 W
Current (Maximum): 100V/5A, 240V/3A
Heat Dissipation:638.75 BTU/h
Redundant Power Supplies: Yes (Hot Swappable)

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 49.9 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Interfaces and Modules:
Hardware Accelerated 10 GE SFP+ Slots : 2
Hardware Accelerated GE SFP Slots : 8
Hardware Accelerated GE RJ45 Ports : 20
Accelerated GE RJ45 Bypass Interfaces : 4
GE RJ45 Management / HA Ports : 2
USB Ports (Client / Server) : 1 / 2
Console Port : 1
Onboard Storage : 1x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 4.2 Gbps
NGFW Throughput : 4 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 22 Gbps
IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP):36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 33 Mpps
Concurrent Sessions (TCP) : 5 Million
New Sessions/Second (TCP) : 280,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 2.2 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 380,000
Application Control Throughput (HTTP 64K) : 9 Gbps
CAPWAP Throughput (1444 byte, UDP) : 5.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 16.4
Height x Width x Length (mm): 44.45 x 432 x 416
Weight : 19.0 lbs (8.6 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Wall Mountable : No
Power Input : 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) : 128 W / 187 W
Current (Maximum) : 110V/7A, 220V/3.5A
Heat Dissipation : 636 BTU/h
Redundant Power Supplies (Hot Swappable) optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 55 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Interfaces and Modules:
Hardware Accelerated 10 GE SFP+ Slots : 2
Hardware Accelerated GE SFP Slots : 8
Hardware Accelerated GE RJ45 Ports : 20
Accelerated GE RJ45 Bypass Interfaces : 4
GE RJ45 Management / HA Ports : 2
USB Ports (Client / Server) : 1 / 2
Console Port : 1
Onboard Storage : 1x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 4.2 Gbps
NGFW Throughput : 4 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 22 Gbps
IPv6 Firewall Throughput(1518 / 512 / 86 byte, UDP):36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 33 Mpps
Concurrent Sessions (TCP) : 5 Million
New Sessions/Second (TCP) : 280,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels: 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 2.2 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,400
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 380,000
Application Control Throughput (HTTP 64K) : 9 Gbps
CAPWAP Throughput (1444 byte, UDP) : 5.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel) : 1024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 16.4
Height x Width x Length (mm): 44.45 x 432 x 416
Weight : 19.0 lbs (8.6 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Wall Mountable : No
Power Input : 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) : 128 W / 187 W
Current (Maximum) : 110V/7A, 220V/3.5A
Heat Dissipation : 636 BTU/h
Redundant Power Supplies (Hot Swappable) optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 55 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

• Specifications

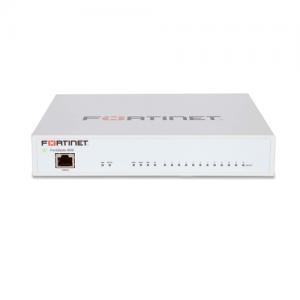

• FORTIGATE 80E
• Hardware Specifications :
• GE RJ45/SFP Shared Media Pairs : 2
• GE RJ45 Ports : 12
• GE RJ45 PoE/+ Ports : 0
• GE RJ45 DMZ/HA Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIGATE 80E-POE
• Hardware Specifications
• GE RJ45/SFP Shared Media Pairs : 2
• GE RJ45 Ports  : 0
• GE RJ45 PoE/+ Ports : 12
• GE RJ45 DMZ/HA Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIGATE 81E
• Hardware Specifications
• GE RJ45/SFP Shared Media Pairs : 2
• GE RJ45 Ports : 12
• GE RJ45 PoE/+ Ports : 0
• GE RJ45 DMZ/HA Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 1x 128 GB SSD
• FORTIGATE 81E-POE
• Hardware Specifications
• GE RJ45/SFP Shared Media Pairs : 2
• GE RJ45 Ports : 0
• GE RJ45 PoE/+ Ports : 12
• GE RJ45 DMZ/HA Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 1x 128 GB SSD
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 450 Mbps
• NGFW Throughput : 360 Mbps
• Threat Protection Throughput : 250 Mbps
• System Performance :
• Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 4 / 4 / 4 Gbps
• Firewall Latency (64 byte UDP packets) : 3 μs
• Firewall Throughput (Packets Per Second) : 6 Mpps
• Concurrent Sessions (TCP) : 1.3 Million
• New Sessions/Second (TCP) : 30,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 2.5 Gbps
• Gateway to Gateway IPsec VPN Tunnels : 200
• Client to Gateway IPsec VPN Tunnels : 2,500
• SSL VPN Throughput : 200 Mbps
• Concurrent SSL VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 135
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 95,000
• Application Control Throughput (HTTP 64K) : 900 Mbps
• CAPWAP Throughput (HTTP 64K) : 920 Mbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 16
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 32 / 16
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active / Active, Active / Passive, Clustering
• Dimensions :
• Height x Width x Length (inches) : 1.65 x 8.5 x 7
• Height x Width x Length (mm) : 42 x 216 x 178
• Weight : 2.65 lbs (1.2 kg)
• Form Factor : Desktop

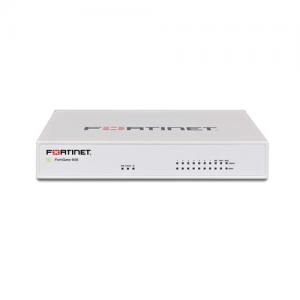

• FORTIGATE 60F
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 FortiLink Ports : 2
• Wireless Interface : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIGATE 61F
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 FortiLink Ports : 2
• Wireless Interface : 0
• USB Ports  : 1
• Console (RJ45) : 1
• Internal Storage : 1 x 128 GB SSD
• FORTIWIFI 60F
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports 7
• GE RJ45 FortiLink Ports 2
• Wireless Interface : 802.11 a/b/g/n/ac-W2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIWIFI 61F
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 FortiLink Ports : 2
• Wireless Interface : 802.11 a/b/g/n/ac-W2
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 1 x 128 GB SSD
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 1.4 Gbps
• NGFW Throughput : 1 Gbps
• Threat Protection Throughput : 700 Mbps
• System Performance :
• Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 10/10/6 Gbps
• Firewall Latency (64 byte UDP packets) : 4 μs
• Firewall Throughput (Packets Per Second) : 9 Mpps
• Concurrent Sessions (TCP) : 700,000
• New Sessions/Second (TCP) : 35,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 6.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 500
• SSL-VPN Thro 9ughput :00 Mbps
• Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput(IPS, avg. HTTPS) : 750 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 400
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
• Application Control Throughput (HTTP 64K) : 1.8 Gbps
• CAPWAP Throughput (HTTP 64K) : 8 Gbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 16
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active / Active, Active / Passive, Clustering
• Dimensions :
• Height x Width x Length (inches) : 1.5 x 8.5 x 6.3
• Height x Width x Length (mm) : 38.5 x 216 x 160 mm
• Weight  : 2.23 lbs (1.01 kg)
• Form Factor : Desktop

• Specifications :
• FORTIGATE 60E :
• Hardware Specifications:
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 PoE/+ Ports : 0
• Wireless Interface : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIGATE 60E-POE :
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports : 2
• GE RJ45 Internal Ports : 0
• GE RJ45 PoE/+ Ports : 8
• Wireless Interface  : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIWIFI 60E :
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface : 802.11 a/b/g/n/ac
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIGATE 61E
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports :  2 / 1
• GE RJ45 Internal Ports  : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface  : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage :  1x 128 GB SSD
• FORTIWIFI 61E
• Hardware Specifications
• GE RJ45 WAN / DMZ Ports :  2 / 1
• GE RJ45 Internal Ports  : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface  : 802.11 a/b/g/n/ac
• USB Ports : 1
• Console (RJ45) :  1
• Internal Storage :  1x 128 GB SSD
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 400 Mbps
• NGFW Throughput : 250 Mbps
• Threat Protection Throughput : 200 Mbps
• System Performance:
• Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 3 / 3 / 3 Gbps
• Firewall Latency (64 byte UDP packets) : 3 μs
• Firewall Throughput (Packets Per Second) : 4.5 Mpps
• Concurrent Sessions (TCP) : 1.3 Million
• New Sessions/Second (TCP) : 30,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) :2Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels :  500
• SSL-VPN Throughput : 150 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 135
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
• Application Control Throughput (HTTP 64K) : 650 Mbps
• CAPWAP Throughput (HTTP 64K) : 890 Mbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 16
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active / Active, Active / Passive, Clustering
• Dimensions :
• Height x Width x Length (inches) : 1.5 x 8.5 x 6.3
• Height x Width x Length (mm) : 38 x 216 x 160
• Weight  :1.9 lbs (0.9 kg)
• Form Factor : Desktop

• Hardware Specifications
• GE RJ45 Switch Ports : 5
• GE RJ45 WAN Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 350 Mbps
• NGFW Throughput : 220 Mbps
• Threat Protection Throughput : 160 Mbps
• System Performance :
• Firewall Throughput : 2.5 Gbps
• Firewall Latency (64 byte UDP packets) : 180 μs
• Firewall Throughput (Packets Per Second): 375 Kpps
• Concurrent Sessions (TCP) : 1.8 Million
• New Sessions/Second (TCP) : 21,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 90 Mbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : 100 Mbps
• Concurrent SS-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 150 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 140
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
• Application CoLntrol Throughput (HTTP 64K) : 450 Mbps
• CAPWAP Throughput (HTTP 64K) : 1.2 Gbps
• Virtual Domains (Default / Maximum) : 5 / 5
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 10 / 5
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active/Active, Active/Passive, Clustering
• Dimensions :
• Height x Width x Length (inches) : 1.44 x 8.52 x 5.5
• Height x Width x Length (mm) : 36.5 x 216 x 140
• Weight  : 2.015 lbs(0.914 kg)
• Form Factor : Desktop

• Hardware Specifications
• GE RJ45 Switch Ports : 5
• GE RJ45 WAN Ports : 2
• USB Ports : 1
• Console (RJ45) : 1
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 350 Mbps
• NGFW Throughput : 220 Mbps
• Threat Protection Throughput : 160 Mbps
• System Performance :
• Firewall Throughput : 2.5 Gbps
• Firewall Latency (64 byte UDP packets) : 180 μs
• Firewall Throughput (Packets Per Second) : 375 Kpps
• Concurrent Sessions (TCP) : 1.8 Million
• New Sessions/Second (TCP) : 21,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 90 Mbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : 100 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 150 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 140
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
• Application Control Throughput (HTTP 64K) : 450 Mbps
• CAPWAP Throughput (HTTP 64K) : 1.2 Gbps
• Virtual Domains (Default / Maximum) : 5 / 5
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 10 / 5
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active/Active, Active/Passive, Clustering
• Dimensions
• Height x Width x Length (inches) : 1.44 x 8.52 x 5.5
• Height x Width x Length (mm) : 36.5 x 216 x 140
• Form Factor :  Desktop

• Specifications
• FORTIGATE 30E :
• Hardware Specifications:
• GE RJ45 Switch Ports : 4
• GE RJ45 WAN Port : 1
• USB Port : 1
• Console (RJ45) : 1
• Wireless Interface : 0
• FORTIWIFI 30E :
• Hardware Specifications :
• GE RJ45 Switch Ports : 4
• GE RJ45 WAN Port : 1
• USB Port : 1
• Console (RJ45) : 1
• Wireless Interface : 802.11 a/b/g/n
• System Performance — Enterprise Traffic Mix:
• IPS Throughput : 300 Mbps
• NGFW Throughput : 200 Mbps
• Threat Protection Throughput : 150 Mbps
• System Performance :
• Firewall Throughput : 950 Mbps
• Firewall Latency (64 byte UDP packets) : 130 μs
• Firewall Throughput (Packets Per Second) : 180 Kpps
• Concurrent Sessions (TCP) : 900,000
• New Sessions/Second (TCP) : 15,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 75 Mbps
• Gateway-to-Gateway IPsec VPN Tunnels: 200
• Client-to-Gateway IPsec VPN Tunnels : 250
• SSL-VPN Throughput : 35 Mbps
• Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 100
• SSL Inspection Throughput (IPS, avg. HTTPS) : 125 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 120
• SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 45,000
• Application Control Throughput (HTTP 64K) : 400 Mbps
• CAPWAP Throughput (HTTP 64K) : 850 Mbps
• Virtual Domains (Default / Maximum) : 5 / 5
• Maximum Number of FortiSwitches Supported : 8
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 2 / 2
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active/Active, Active/Passive, Clustering
• FORTIGATE 30E:
• Dimensions:
• Height x Width x Length (inches) 1.61 x 8.27 x 5.24
• Height x Width x Length (mm) 41 x 210 x 133
• Weight 1.982 lbs (0.899 kg)
• FORTIWIFI 30E:
• Dimensions:
• Height x Width x Length (inches) 1.61 x 8.27 x 5.24
• Height x Width x Length (mm) 41 x 210 x 133
• Weight 2.008 lbs (0.911 kg)
• Form Factor : Desktop
• Environment :
• Input Rating : 12Vdc, 2A
• Power Required Powered by External DC Power Adapter : 100–240V AC, 50–60 Hz
• Maximum Current : 100V / 0.6A, 240V / 0.4A
• Power Consumption (Average / Maximum) : 13 / 15 W  16 / 19 W
• Heat Dissipation : 52 BTU/h 66 BTU/h
• Operating Temperature : 32–104°F (0–40°C)
• Storage Temperature : -31–158°F (-35–70°C)
• Humidity  : 10–90% non-condensing
• Noise Level : Fan-less 0 dBA
• Operating Altitude Up to : 7,400 ft (2,250 m)
• Compliance :
• Regulatory Compliance : FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
• Certifications
• ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

• FORTIGATE 60E
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 PoE/+ Ports : 0
• Wireless Interface : 0
• USB Ports : 1
• Console (RJ45 ) : 1
• Internal Storage : 0
• FORTIGATE 60E-POE
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports :  2
• GE RJ45 Internal Ports  : 0
• GE RJ45 PoE/+ Ports  : 8
• Wireless Interface : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 0
• FORTIWIFI 60E
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports  :2 / 1
• GE RJ45 Internal Ports  : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface : 802.11 a/b/g/n/ac
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage  : 0
• FORTIGATE 61E
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports : 2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface  : 0
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage :  1x 128 GB SSD
• FORTIWIFI 61E
• Hardware Specifications :
• GE RJ45 WAN / DMZ Ports :  2 / 1
• GE RJ45 Internal Ports : 7
• GE RJ45 PoE/+ Ports  : 0
• Wireless Interface : 802.11 a/b/g/n/ac
• USB Ports : 1
• Console (RJ45) : 1
• Internal Storage : 1x 128 GB SSD
• System Performance — Enterprise Traffic Mix :
• IPS Throughput : 400 Mbps
• NGFW Throughput : 250 Mbps
• Threat Protection Throughput : 200 Mbps
• System Performance:
• Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 3 / 3 / 3 Gbps
• Firewall Latency (64 byte UDP packets) : 3 μs
• Firewall Throughput (Packets Per Second) : 4.5 Mpps
• Concurrent Sessions (TCP) : 1.3 Million
• New Sessions/Second (TCP) : 30,000
• Firewall Policies : 5,000
• IPsec VPN Throughput (512 byte) : 2 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 500
• SSL-VPN Throughput : 150 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 135 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 135
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 75,000
• Application Control Throughput (HTTP 64K) : 650 Mbps
• CAPWAP Throughput (HTTP 64K) : 890 Mbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 16
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 30 / 10
• Maximum Number of FortiTokens : 500
• High Availability Configurations : Active / Active, Active / Passive, Clustering
• Dimensions
• Height x Width x Length (inches) 1.5 x 8.5 x 6.3
• Height x Width x Length (mm) 38 x 216 x 160
• Weight 1.9 lbs (0.9 kg)
• Form Factor : Desktop

Interfaces and Modules:
10 GE SFP+ Slots : 2
GE RJ45 Interfaces : 8
GE SFP Slots : 8
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 10 Gbps
NGFW Throughput : 9.5 Gbps
Threat Protection Throughput : 7 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP):36 / 36 / 27 Gbps
Firewall Latency (64 byte, UDP) : 2 μs
Firewall Throughput (Packet per Second) : 40.5 Mpps
Concurrent Sessions (TCP) : 8 Million
New Sessions/Second (TCP) : 450,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 7 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) :10,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 5,500
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
Application Control Throughput (HTTP 64K) : 15 Gbps
CAPWAP Throughput (HTTP 64K) : 18 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 96
Maximum Number of FortiAPs (Total / Tunnel) : 1,024 / 512
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power :
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 129 W / 244 W
Power Source : 100–240V 50–60Hz
Current (Maximum) : 6A @ 100V
Heat Dissipation : 832 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 59 dBA
Operating Altitude Up to : 9,843 ft (3,000 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

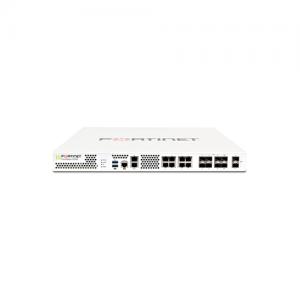

FORTIGATE 500E FORTIGATE 501E
Interfaces and Modules:
10 GE SFP+ Slots : 2
GE RJ45 Interfaces : 8
GE SFP Slots : 8
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 7.9 Gbps
NGFW Throughput : 5 Gbps
Threat Protection Throughput : 4.7 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP) : 2 μs
Firewall Throughput (Packet per Second) : 33 Mpps
Concurrent Sessions (TCP) : 8 Million
New Sessions/Second (TCP) : 300,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 5 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):10,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 5.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 3,500
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 800,000
Application Control Throughput (HTTP 64K) : 14 Gbps
CAPWAP Throughput (1444 byte, UDP) : 18 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
Maximum Number of FortiTokens : 5,000
Maximum Number of Registered Endpoints : 2,000
High Availability Configurations : Active-Active, Active-Passive, Clustering
FORTIGATE 500E FORTIGATE 501E
Dimensions and Power :
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 95 W / 193 W 105 W / 200 W
Power Input : 100–240V, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 613 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

FORTIGATE 400E FORTIGATE 401E
Interfaces and Modules:
GE RJ45 Interfaces : 16
GE SFP Slots : 16
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 7.8 Gbps
NGFW Throughput : 6 Gbps
Threat Protection Throughput : 5 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 24 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 36 Mpps
Concurrent Sessions (TCP) : 4 Million
New Sessions/Second (TCP) : 450,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) :  20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels  : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 4.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 4.8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 4,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 300,000
Application Control Throughput (HTTP 64K) : 12 Gbps
CAPWAP Throughput (1444 byte, UDP) : 14.8 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel)  : 512 / 256
Maximum Number of FortiTokens  : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

FORTIGATE 400E FORTIGATE 401E
Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.4 lbs (7.4 kg) 16.9 lbs (7.9 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 109 W / 214 W 115 W / 221 W
Power Input : 100–240V, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 730 BTU/h 754 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 48 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

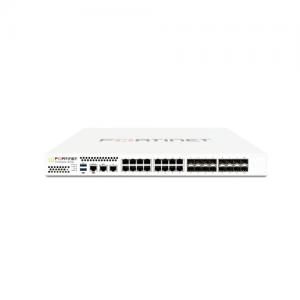

FORTIGATE 300E FORTIGATE 301E
Interfaces and Modules:
GE RJ45 Interfaces : 16
GE SFP Slots : 16
GE RJ45 Management Ports : 2
USB Ports : 2
RJ45 Console Port : 1
Local Storage : 2x 240 GB SSD
Included Transceivers : 2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 5 Gbps
NGFW Throughput : 3.5 Gbps
Threat Protection Throughput : 3 Gbps

System Performance and Capacity:
IPv4 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
IPv6 Firewall Throughput(1518 / 512 / 64 byte, UDP) : 32 / 32 / 20 Gbps
Firewall Latency (64 byte, UDP) : 3 μs
Firewall Throughput (Packet per Second) : 30 Mpps
Concurrent Sessions (TCP) : 4 Million
New Sessions/Second (TCP) : 300,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 50,000
SSL-VPN Throughput : 2.5 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode):5,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 3.9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 2,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 340,000
Application Control Throughput (HTTP 64K) : 7 Gbps
CAPWAP Throughput (1444 byte, UDP) : 5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 72
Maximum Number of FortiAPs (Total / Tunnel) : 512 / 256
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active-Active, Active-Passive, Clustering

Dimensions and Power:
Height x Width x Length (inches) : 1.75 x 17.0 x 15.0
Height x Width x Length (mm) : 44.45 x 432 x 380
Weight : 16.1 lbs (7.3 kg) 16.6 lbs (7.6 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Power Consumption (Average / Maximum) : 90 W / 173 W 95 W / 180 W
Power Input : 100V–240V AC, 50–60Hz
Current (Maximum) : 6A
Heat Dissipation : 570 BTU/h 614 BTU/h
Redundant Power Supplies (Hot Swappable) : optional

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 48 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

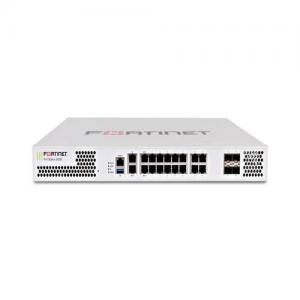

FORTIGATE 200E FORTIGATE 201E
Hardware Specifications:
GE RJ45 WAN Interfaces : 2
GE RJ45 Management/HA Ports : 2
GE RJ45 Ports : 14
GE SFP Slots : 4
USB port : 1
Console (RJ45): 1
Local Storage : 1x 480 GB SSD
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 2.2 Gbps
NGFW Throughput : 1.8 Gbps
Threat Protection Throughput : 1.2 Gbps

System Performance:
Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 20 / 20 / 9 Gbps
Firewall Latency (64 byte UDP packets) : 3 μs
Firewall Throughput (Packets Per Second) : 13.5 Mpps
Concurrent Sessions (TCP) : 2 Million
New Sessions/Second (TCP) : 135,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 7.2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 900 Mbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 820 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 1,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 240,000
Application Control Throughput (HTTP 64K) : 3.5 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 64
Maximum Number of FortiAPs (Total / Tunnel Mode) : 256 / 128
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active / Active, Active / Passive, Clustering

Dimensions:
Height x Width x Length (inches) : 1.75 x 17.0 x 11.9
Height x Width x Length (mm) : 44.45 x 432 x 301
Weight : 11.9 lbs (5.4 kg) 12.12 lbs (5.5 kg)
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU

Environment:
Power Input :100–240V AC, 50–60 Hz
Maximum Current : 110 V / 3 A, 220 V / 0.42 A
Power Consumption (Average / Maximum) : 70.98 / 109.9 W
Heat Dissipation : 374.9 BTU/h
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 31.1 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

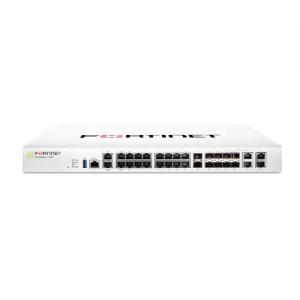

FORTIGATE 100F FORTIGATE 101F
Hardware Specifications:
GE RJ45 Ports : 12
GE RJ45 Management/HA/DMZ Ports : 1 / 2 / 1
GE SFP Slots : 4
10 GE SFP+ Slots : 2
GE RJ45 WAN Ports : 2
GE RJ45 or SFP Shared Ports : 4
USB Port : 1
Console Port : 1
Internal Storage : 1x 480 GB SSD
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 2.6 Gbps
NGFW Throughput : 1.6 Gbps
Threat Protection Throughput : 1 Gbps

System Performance:
Firewall Throughput(1518 / 512 / 64 byte UDP packets) : 20 / 18 / 10 Gbps
Firewall Latency (64 byte UDP packets) : 5 μs
Firewall Throughput (Packets Per Second) : 15 Mpps
Concurrent Sessions (TCP) : 1.5 Million
New Sessions/Second (TCP) : 56,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,500
Client-to-Gateway IPsec VPN Tunnels : 16,000
SSL-VPN Throughput  : 1 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 1,800
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 135,000
Application Control Throughput (HTTP 64K) : 2.2 Gbps
CAPWAP Throughput (HTTP 64K) : 15 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 24
Maximum Number of FortiAPs(Total / Tunnel Mode) : 128 / 64
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active / Active, Active / Passive, Clustering

Dimensions:
Height x Width x Length (inches) : 1.73 x 17 x 10
Height x Width x Length (mm) : 44 x 432 x 254
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU
Weight : 7.25 lbs (3.29 kg) 7.56 lbs (3.43 kg)

Environment:
Power Required : 100–240V AC, 50-60
Maximum Current : 100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum) : 35.1 W / 38.7 W 35.3 W / 39.1 W
Heat Dissipation : 119.77 BTU/h 121.13 BTU/h
Redundant Power Supplies : Yes

Environment:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Operating Altitude Up to : 7,400 ft (2,250 m)
Humidity : 10–90% non-condensing
Noise Level : 40.4 dBA
Compliance : FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6

Specifications
FORTIGATE 100E
Hardware Specifications:
GE RJ45 Ports : 14
GE RJ45 Management/HA/DMZ Ports : 1 / 2
GE SFP Slots : 0
GE RJ45 PoE/+ Ports : 0
GE RJ45 WAN Ports : 2
GE RJ45 or SFP Shared Ports : 2
USB Port : 1
Console Port : 1
Internal Storage : 0
Included Transceivers : 0

System Performance — Enterprise Traffic Mix:
IPS Throughput : 500 Mbps
NGFW Throughput : 360 Mbps
Threat Protection Throughput : 250 Mbps

System Performance:
Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 7.4 / 7.4 / 4.4 Gbps
Firewall Latency (64 byte UDP packets) : 3 μs
Firewall Throughput (Packets Per Second) : 6.6 Mpps
Concurrent Sessions (TCP)  : 2 Million
New Sessions/Second (TCP) : 30,000
Firewall Policies : 10,000
IPsec VPN Throughput (512 byte) : 4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 2,000
Client-to-Gateway IPsec VPN Tunnels : 10,000
SSL-VPN Throughput : 250 Mbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 500
SSL Inspection Throughput (IPS, avg. HTTPS) : 130 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) : 130
SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 125,000
Application Control Throughput (HTTP 64K) : 1 Gbps
CAPWAP Throughput (1444 byte, UDP) : 1.5 Gbps
Virtual Domains (Default / Maximum) : 10 / 10
Maximum Number of FortiSwitches Supported : 24
Maximum Number of FortiAPs (Total / Tunnel Mode) : 64 / 32
Maximum Number of FortiTokens : 5,000
High Availability Configurations : Active / Active, Active / Passive, Clustering

Dimensions:
Height x Width x Length (inches) : 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 10 1.75 x 17 x 15.5
Height x Width x Length (mm) : 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 254 44.45 x 432 x 394
Form Factor (supports EIA / non-EIA standards) : Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU Rack Mount, 1 RU
Weight : 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 7.28 lbs (3.3 kg) 12.4 lbs (5.6 kg)

Environment:
Power Input : 100–240V AC, 50–60 Hz
Maximum Current :  100V / 0.52A, 240V / 0.22A 100V / 0.59A, 240V / 0.25A 100V / 0.52A, 240V / 0.22A 100V / 5A
Total Available PoE Power Budget* — — — 400 W
Power Consumption (Average / Maximum) : 23.0 W / 28.6 W; 51.9 VA 24.8 W / 33.8 W; 59.2 VA 24.4 W / 28.6 W; 51.9 VA 477.1 W / 500.0 W
Heat Dissipation : 97.6 BTU/h 115.3 BTU/h 97.6 BTU/h 1706.07 BTU/h

FG-6300F/6301F
Interfaces and Modules:
40/100 GE QSFP28 Slots : 4
1/10/25 GE SFP28 Slots : 24
10 GE SFP+ Slots : 3
GE RJ45 Management Ports : 2
USB Ports : 1
Console Port : 1
Internal Storage : 2x 1 TB NVMe (for 6301F and 6501F only)
Included Transceivers : 2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix :
IPS Throughput : 110 Gbps
NGFW Throughput : 90 Gbps
Threat Protection Throughput : 60 Gbps

System Performance and Capacity:
Firewall Throughput (1518 / 512 / 64 byte, UDP) : 239 / 238 / 135 Gbps
Firewall Latency (64 byte, UDP) : 5 μs
Firewall Throughput (Packet per Second): 202.5 Mpps
Concurrent Sessions (TCP) 120 Million : 200 Million
New Sessions/Sec (TCP) : 2 Million
Firewall Policies : 200,000
IPsec VPN Throughput (512 byte) :  96 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 16,000
Client-to-Gateway IPsec VPN Tunnels : 90,000
SSL-VPN Throughput  : 9 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 66 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 30,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 10 Million
Application Control Throughput (HTTP 64K) : 150 Gbps
CAPWAP Throughput (1444 byte, UDP) : N/A
Virtual Domains (Default / Maximum) : 10 / 500
Maximum Number of FortiSwitches Supported : 256
Maximum Number of FortiAPs (Total / Tunnel Mode) : N/A
High Availability Configurations : Supported

Dimensions and Power:
Height x Width x Length (inches) :  5.20 x 17.20 x 26.185.3 x 17.2 x 27.3
Height x Width x Length (mm) : 132 x 437 x 665
Weight : 67.68 lbs (30.7 kg)

Form Factor (supports EIA/non-EIA standards) : Rack Mount, 3 RU
AC Power Supply : 100–240V AC, 50–60 Hz
Redundant Power Supplies : 2+1 Redundant, Hot Swappable

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 57.43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

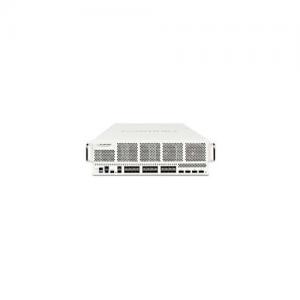

FG-6500F/6501F
Interfaces and Modules:
40/100 GE QSFP28 Slots : 4
1/10/25 GE SFP28 Slots : 24
10 GE SFP+ Slots : 3
GE RJ45 Management Ports : 2
USB Ports : 1
Console Port : 1
Internal Storage : 2x 1 TB NVMe (for 6301F and 6501F only)
Included Transceivers : 2x SFP+ (SR 10 GE)

System Performance — Enterprise Traffic Mix:
IPS Throughput : 170 Gbps
NGFW Throughput : 150 Gbps
Threat Protection Throughput : 100 Gbps

System Performance and Capacity :
Firewall Throughput(1518 / 512 / 64 byte, UDP) :  239 / 238 / 135 Gbps
Firewall Latency (64 byte, UDP) : 5 μs
Firewall Throughput (Packet per Second) : 202.5 Mpps
Concurrent Sessions (TCP) : 200 Million
New Sessions/Sec (TCP) : 3 Million
Firewall Policies : 200,000
IPsec VPN Throughput (512 byte) : 160 Gbps
Gateway-to-Gateway IPsec VPN Tunnels : 16,000
Client-to-Gateway IPsec VPN Tunnels : 90,000
SSL-VPN Throughput :9 Gbps
Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) : 30,000
SSL Inspection Throughput (IPS, avg. HTTPS) : 110 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) : 50,000
SSL Inspection Concurrent Session(IPS, avg. HTTPS) : 18 Million
Application Control Throughput (HTTP 64K) : 220 Gbps
CAPWAP Throughput (1444 byte, UDP) : N/A
Virtual Domains (Default / Maximum) : 10 / 500
Maximum Number of FortiSwitches Supported : 256
Maximum Number of FortiAPs(Total / Tunnel Mode) : N/A
High Availability Configurations : Supported

Dimensions and Power:
Height x Width x Length (inches): 5.20 x 17.20 x 26.18 5.3 x 17.2 x 27.3
Height x Width x Length (mm) : 132 x 437 x 665 133 x 437 x 694
Weight : 78.26 lbs (35.5 kg) / 79.59 lbs (36.1 kg)

Form Factor (supports EIA/non-EIA standards) : Rack Mount, 3 RU
AC Power Supply : 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum) : (1,308 / 1,548 W) / (1,328 / 1,568 W)
Current (Maximum) :  20A@240VAC
Redundant Power Supplies : 2+1 Redundant, Hot Swappable

Operating Environment and Certifications:
Operating Temperature : 32–104°F (0–40°C)
Storage Temperature : -31–158°F (-35–70°C)
Humidity : 10–90% non-condensing
Noise Level : 57.43 dBA
Operating Altitude Up to : 7,400 ft (2,250 m)
Compliance : FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
