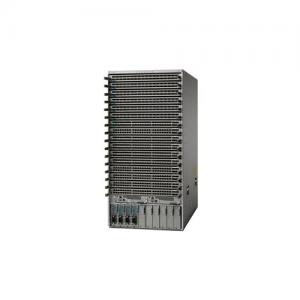

Features and capabilities:

The Cisco Nexus 9516 Switch offers a comprehensive feature set, high resiliency,

and a broad range of 1/10/40 Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.

Cisco ACI support

Designed to support the Cisco next-generation data center based on Cisco ACI

Programmability

Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS

Automated configuration through Linux shell scripts

Support for customer applications through a Linux container environment

High availability

Software patching for continued operations

Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays

Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy efficiency

Design without a midplane to optimize front-to-back airflow and reduce power consumption

Optimized design with fewer ASICs, resulting in lower energy use

Efficient power supplies that are rated at 80 Plus Platinum

Investment protection

40 Gb  for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet

Support for Cisco NX-OS and Cisco ACI modes of operation

Support for Cisco Nexus 2000 Series Fabric Extenders

Form factor : 21 RU

Line card slots : 16

Supervisor slots : 2

Fabric module slots : 6

ACI support :Yes

Bandwidth per slot (Tbps) : 3.84

Bandwidth per system (Tbps) : 60

Maximum number of 1/10G BASE-T ports : 768

Maximum number of 10 GE ports : 2304

Maximum number of 40 GE ports : 576

Maximum number of 100GE ports : 576

Airflow : Front to back

Power supplies (3-kW AC/DC) : Up to 10

Fan trays : 3

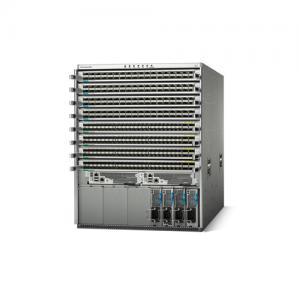

Features and Capabilities

The Cisco Nexus 9508 Switch offers a comprehensive feature set, high resiliency, and a broad range of 1/10/40 Gigabit Ethernet line cards to meet the most

demanding requirements of enterprise, service provider, and cloud data centers.

ACI Support

Designed to support the Cisco next-generation data center based on Cisco ACI

Programmability

Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS

Automated configuration through Linux shell scripts

Support for customer applications through a Linux container environment

High Availability

Full Cisco In-Service Software Upgrade (ISSU) and patching support

Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays

Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy Efficiency

Design without a midplane to optimize front-to-back airflow and reduce power consumption

Optimized design with fewer ASICs, resulting in lower energy use

Efficient power supplies that are rated at 80 Plus Platinum

Specifications at a Glance

30 Tbps of nonblocking performance

Up to 1152 10 Gigabit Ethernet nonblocking ports

Up to 288 40 Gigabit Ethernet nonblocking ports

Up to 384 1/10GBASE-T nonblocking ports

13-rack-unit chassis

8 line card slots

Front-to-back airflow

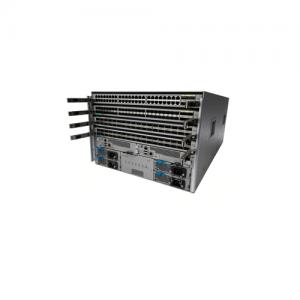

Features and Capabilities

The Cisco Nexus 9504 Switch offers a comprehensive feature set, high resiliency, and a broad range of high performance Gigabit Ethernet line cards. It can meet the most demanding requirements of enterprise, service provider, and cloud data centers.

Deployment Flexibility

Support for the next-generation data center based on Cisco ACI

Nexus Fabric Manager support to automate fabric configuration and management

Traditional data centers in standalone NX-OS mode

Programmability

Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS

Automated configuration through Linux shell scripts

Support for customer applications through a Linux container environment

Programmable APIs for integration with DevOps automation tools

High Availability

In-Service Software Upgrade (ISSU) and patching without operation interruption Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays

Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability

Energy Efficiency

Designed without a midplane to optimize front-to-back airflow and reduce power consumption

Optimized design with fewer ASICs, resulting in lower energy use

Efficient power supplies that are rated at 80 Plus Platinum

Nonblocking performance 15 Tbps

10 Gigabit Ethernet nonblocking ports Up to 512

25 Gigabit Ethernet Ports Up to 512

50 Gigabit Ethernet Ports Up to 256

40/100 Gigabit Ethernet nonblocking ports Up to 144

1/10GBASE-T nonblocking ports Up to 192

Form factor 7-rack-unit chassis

Line card slots 4

Airflow Front to back

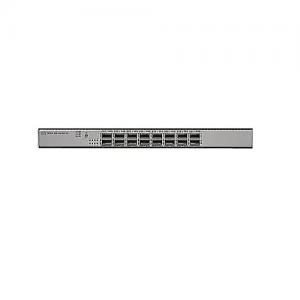

• Ports :  16 x 400/100/40-Gbps QSFP-DD ports
• System memory :  16 GB NX-OS, 24 GB ACI
• Solid-State Disk (SSD) :  128 GB
• USB  1 port
• RS-232 serial console ports 1
• Management ports 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
• Broadwell-DE CPU 4 cores
• Dimensions (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
• N9K-C9316D-GX is the Cisco Nexus 9316D Spine switch with 16p 400/100G QSFP-DD. Based on Cisco® Cloud Scale technology, the Cisco
• Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform introduces a fully backwardcompatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center
• fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for customers, delivering highly flexible
• layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

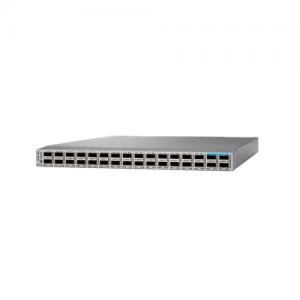

• Ports  : 28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports
• System memory :  16 GB NX-OS, 24 GB ACI
• Solid-State Disk : (SSD) 128 GB
• USB : 1 port
• RS-232 serial console ports  : 1
• Management ports : 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
• Broadwell-DE CPU  : 4 cores
• Dimensions (H x W x D) 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)
• N9K-C93600CD-GX is the Cisco Nexus 9316D Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD. Based on Cisco
• Cloud Scale technology, the Cisco Nexus 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform
• introduces a fully backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently
• migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for
• customers, delivering highly flexible layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and
• automated cloud environments.

• Ports : 48 x 10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds : 1/10/25-Gbps speeds
• CPU: 4 cores
• System memory: 24 GB
• SSD drive : 64 GB
• System buffer: 40 MB
• Management ports 2 ports: 1 RJ-45 and 1 SFP
• USB ports : 1
• RS-232 serial ports :  1
• Power supplies (up to 2) : 650W AC, 930W DC, or 1200W HVAC/HVDC
• Typical power (AC/DC) :  210W
• Maximum power (AC/DC) :  470W
• Physical dimensions c
• (H x W x D)
• 1.72 x 17.3 x 22.5 in.
• (4.4 x 43.9 x 57.1 cm)
• Weight (without power supplies or fans) 17.2 lb (7.8 kg)
• N9K-C93180YC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
• 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
• with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
• the evolving needs of highly scalable data centers and growing enterprises.

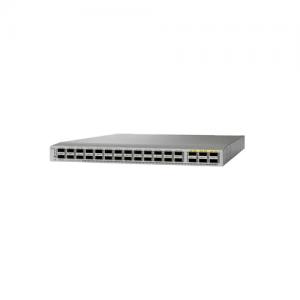

• Device Type : Switch - 24 ports - L3
• Enclosure Type : Rack-mountable 1U
• Subtype : 50 Gigabit Ethernet
• Ports : 24 x 40/50 Gigabit QSFP+ + 6 x 40/100 Gigabit QSFP+
• Performance : Bandwidth: 3.6 Tbps ¦ Active SPAN sessions: 4
• Capacity : Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦
• Per VLAN Rapid Spanning Tree instances: 4000 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 1000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 8000 ¦ Multicast routes: 8000
• MAC Address Table Size : 512K entries
• Routing Protocol :OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
• Features : Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
• RAM : 24 GB
• Built-in Devices : 64 GB SSD
• The Cisco Nexus 93180LC-EX Switch is the industry's first 50-Gbps capable 1RU switch that supports 3.6 Tbps of bandwidth and over 2.6
• bpps across 24 fixed 40/50-Gbps QSFP+ ports. Ports numbered 25, 27, 29, 30, 31, and 32 are the 6 uplinks ports, which can be configured
• as 40- and 100-Gbps ports, offering flexible migration options. This switch is capable of supporting flexible port configurations.

• Device Type    : Switch - 48 ports - L3 - Managed
• Enclosure Type     :Rack-mountable 1U
• Subtype    :25 Gigabit Ethernet / 32Gb Fibre Channel
• Ports    :48 x 1/10/25 Gigabit Ethernet / 8/16/32Gb Fiber Channel / FCoE SFP+ + 6 x 40/100 Gigabit QSFP28 / FCoE
• Performance    :Bandwidth: 3.6 Tbps
• Active SPAN sessions: 4
• Capacity:     Multiple Spanning Tree Protocol instances: 64
• HSRP groups: 490
• Per VLAN Rapid Spanning Tree instances: 4000
• Maximum number of links in a port channel: 32
• Maximum number of port channels: 512
• ECMP paths: 64
• Virtual Routing and Forwarding (VRF) instances: 16000
• VLANs supported: 4096
• ACL entries (egress): 2000
• IGMP snooping groups: 32000
• Multicast routes: 32000
• Latency: < 1 µs
• MAC Address Table Size : 512K entries
• Routing Protocol    : OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
• Features:    Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Virtual PortChannel (vPC) technology, MACsec support, 4 fans, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer, Power On Auto Provisioning (POAP)
• Compliant Standards :     IEEE 802.1ae
• RAM :    64 GB
• Built-in Devices : 128 GB SSD
• Interfaces    48 x 1/10/25Gbit LAN / 8/16/32Gb Fibre Channel SFP+ downlink
• 6 x 100Gbit/40Gbit LAN QSFP28 uplink
• 1 x management RJ-45
• 1 x USB
• 1 x serial (RS-232)

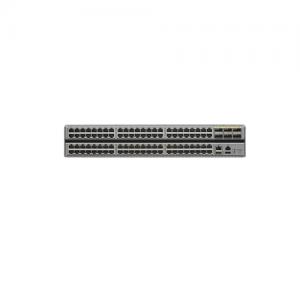

• Ports : 96 fixed 1/10GBASE-T and 6 QSFP+ ports
• Supported speeds :100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
• 40 Gigabit Ethernet uplink
• ports : 6 fixed QSFP+ ports
• Physical (H x W x D) 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)
• Weight 26 lb (11.8 kg) (without power supplies, fans, or uplink module)
• Predictable high performance :
• Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
• from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
• Increased integrated buffer space :
• Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
• uplink ports.
• Designed for availability :
• Hot-swappable, redundant power supplies and fan trays increase availability.
• Flexible airflow configuration :
• Port-side intake and port-side exhaust airflow configurations are both supported.
• CPU, SSD, and memory :
• Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
• Power efficiency :
• All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
• Advanced optics :
• Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
• data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
• with no cable infrastructure upgrade cost.

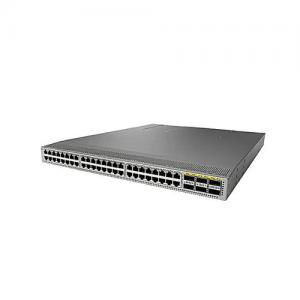

• N9K-C93108TC-EX is one of the Cisco Nexus 9300-EX switches. Cisco Nexus 9300-EX platforms are the next generation of fixed Cisco Nexus
• 9000 Series Switches. The new platforms support cost-effective cloud-scale deployments, an increased number of endpoints, and cloud services
• with wire-rate security and telemetry. The platforms are built on modern system architecture designed to provide high performance and meet
• the evolving needs of highly scalable data centers and growing enterprises.
• Ports :  48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports
• Downlink supported speeds :  100-Mbps and 1/10-Gbps speeds
• CPU : 4 cores
• System memory : 24 GB
• SSD drive : 64 GB
• System buffer  : 40 MB
• Management ports 2 ports: 1 RJ-45 and 1 SFP
• USB ports  : 1
• RS-232 serial ports : 1
• Power supplies (up to 2) :  650W AC, 930W DC, or 1200W HVAC/HVDC
• Typical power (AC/DC) :  290W
• Maximum power (AC/DC) : 499W
• Physical dimensions
• (H x W x D)
• 1.72 x 17.3 x 22.5 in.
• (4.4 x 43.9 x 57.1 cm)
• Weight (without power supplies or fans) 17.7 lb (8.0 kg)

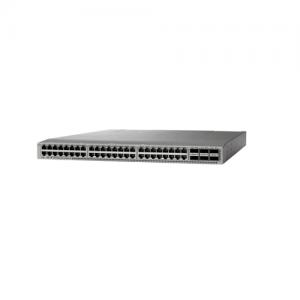

• Product Type :  Ethernet Switch
• Interfaces/Ports
• Total Number of Network Ports :  48
• Uplink Port :  Yes
• Modular  : Yes
• Stack Port : No
• Port/Expansion Slot Details : 48 x 10 Gigabit Ethernet Network
• Port/Expansion Slot Details :6 x 100 Gigabit Ethernet Expansion Slot
• Media & Performance
• Media Type Supported Optical Fiber
• Media Type Supported Twisted Pair
• Ethernet Technology 100 Gigabit Ethernet
• Ethernet Technology 10 Gigabit Ethernet
• Network Technology 100GBase-X
• Network Technology 10GBase-T
• I/O Expansions
• Number of Total Expansion Slots  : 6
• Expansion Slot Type :QSFP28
• Shared SFP Slot :No
• Network & Communication :
• Layer Supported :  3
• Management & Protocols
• Manageable  : Yes
• Power Description :
• Power Source Power Supply
• Redundant Power Supply Supported  : Yes

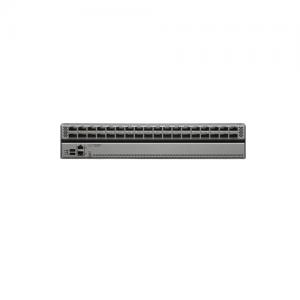

• Device Type : Switch - 36 ports - L3 - managed
• Enclosure Type : Desktop, rack-mountable 2U
• Subtype : 40 Gigabit Ethernet
• Ports : 36 x 40 Gigabit QSFP+
• Performance : Bandwidth: 1.44 Tbps
• Capacity : Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000
• Jumbo Frame Support : Yes
• Routing Protocol : IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3
• Remote Management Protocol :SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
• Authentication Method :
• RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2
• Features :
• Flow control, modular design, load balancing, VLAN support, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support
• Compliant Standards :
• IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba

• Ports :32 QSFP+ ports
• Supported speeds :40 Gigabit Ethernet speeds
• Physical: (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
• Weight 22 lb (10.0 kg) (without power supplies or fans)
• Predictable highperformance :
• Latency of 1 to 2 microseconds with up to 1.28 Tbps of bandwidth enables customers to build a robust switch fabric scaling
• from as few as 200 10-Gbps server ports to more than 200,000 10-Gbps server ports.
• Increased integrated buffer space :
• Up to a total of 50 MB of integrated shared buffer space allows better management of speed mismatch between access and
• uplink ports.
• Designed for availability :
• Hot-swappable, redundant power supplies and fan trays increase availability.
• Flexible airflow configuration:
• Port-side intake and port-side exhaust airflow configurations are both supported.
• CPU, SSD,and memory :
• Dual-core 2.5-GHz x86 CPUs with 64-GB SSD drive and 16 GB of memory provide enhanced network performance.
• Power efficiency :
• All Cisco Nexus 9000 Series power supplies are 80 Plus Platinum rated.
• Advanced optics :
• Cisco offers a pluggable 40 Gigabit Ethernet QSFP+ transceiver that enables customers to use existing 10 Gigabit Ethernet
• data center cabling to support 40 Gigabit Ethernet connectivity. This technology facilitates adoption of 40 Gigabit Ethernet
• with no cable infrastructure upgrade cost

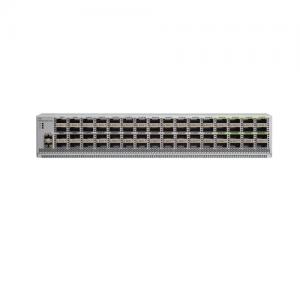

Physical :64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports
 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)
 Hot-swappable, dual fan trays with redundant fans
 System memory: 32GB
 SSD: 256GB
 USB: 1 port
 RS-232 serial console ports: 1
(1) 1-/10-Gigabit SFP+ ports (2)
(2) 40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports)
(3) Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports)
(4) Fan modules (3) with slots numbered from 1 (left) to 3 (right)
(5) USB port (1)
(6)Management port (1—SFP optical port)
(7) Management port (1—RJ-45 copper port)
(8) Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom)
(9) Console port (1)

Management ports:
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
Broadwell-DE CPU: 4 cores
Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)
Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

Physical : 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports

1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)

 Hot-swappable, dual fan trays with redundant fans

 System memory: 32GB

 SSD: 256GB

 USB: 1 port

 RS-232 serial console ports: 1

(1) 1-/10-Gigabit SFP+ ports (2)

(2) 40-/100-Gigabit QSFP28 ports (ports 1 to 48 in 4 rows of 12 ports)

(3) Green colored 40-/100-Gigabit QSFP28 ports supporting MACsec (when software support is available) (ports 49 to 64 in 4 rows of 4 ports)

(4) Fan modules (3) with slots numbered from 1 (left) to 3 (right)

(5) USB port (1)

(6) Management port (1—SFP optical port)

(7) Management port (1—RJ-45 copper port)

(8) Power supply modules (1 or 2) (AC power supplies shown) with slots numbered 1 (top) and 2 (bottom)

(9) Console port (1)

Management ports:

2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)

Broadwell-DE CPU: 4 cores

Physical (H x W x D) 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)

Weight (chassis) 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans

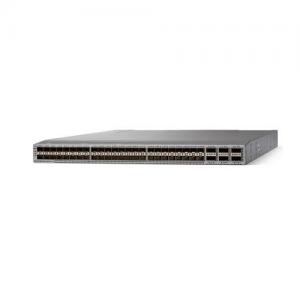

• The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the switch can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 1/10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports.
• Cisco Nexus 9348GC-FXP Switch is designed to meet the changing needs of data centers, big data applications, and automated cloud environments.
• Highlights points:
• Powered by Cisco Cloud Scale ASIC technology
• Support for Cisco NX OS Software and Cisco ACI (Application Centric Infrastructure) architecture
• High-performance, Layer 2 and 3 non-blocking architecture
• Easily deployed into either a hot-aisle or cold-aisle configuration
• Cisco Tetration Analytics Platform support with built-in hardware sensors for rich traffic flow telemetry and line-rate data collection
• Cisco Nexus Data Broker support for network traffic monitoring and analysis
• Robust hardware system specifications feature 4-core CPU, 24 GB of system memory, and respectively 128-GB SSD drive
• The 40-MB buffer supporting highly scalable data centers and big data applications 696 Gbps of bandwidth and over 250 mpps
• Fixed downlinks with 48 x FE/GE
• Fixed uplinks with 4 x 25GE SFP28, 2 x 100GE QSFP28

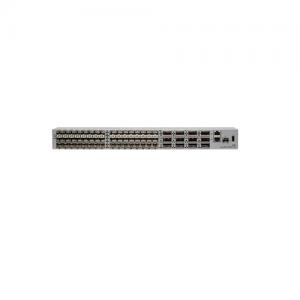

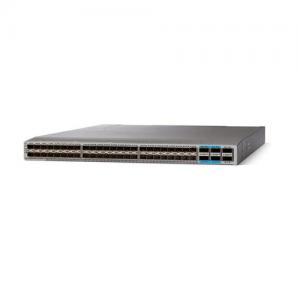

• Architectural flexibility :
• Support for Cisco ACI architecture and NX-OS
• 48 x 1/10/25 Gbps fiber ports
• 12 x 40/100 Gbps QSFP28 ports
• Supports 4.8 Tbps of bandwidth and over 1.8 bpps
• Rich features :
• Automated, policy-based systems management with Cisco ACI
• Build programmable SDN fabrics leveraging open APIs and over 65 Cisco ACI global technology partners
• Enhanced Cisco NX-OS Software designed for performance, resiliency, scalability, manageability, and programmability
• Real-time buffer utilization per port and per queue, for monitoring traffic micro-bursts and application traffic patterns
• Highly available and efficient design :
• High-performance, Layer 2 and 3 non-blocking architecture
• Easily deployed into either a hot-aisle or cold-aisle configuration
• Redundant, hot-swappable power supplies and fan trays
• Specifications at a Glance :
• Powered by cloud-scale technology
• 48 x 1/10/25 Gbps fiber ports
• 12 x 40/100 Gbps QSFP28 ports
• 40 MB buffer
• Up to 4.8 Tbps of bandwidth

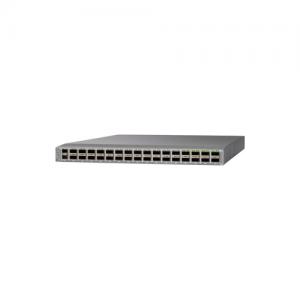

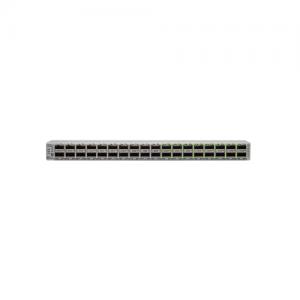

• The Cisco Nexus 9336C-FX2 offers flexible port speeds in a compact form factor. Designed to meet the changing needs of data centers, big data applications, and automated cloud environments, this powerful switch delivers superior programmability.
• Main Features :
• FX2
• Switch
• L3
• managed
• 36 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
• rack-mountable
• Built-in Devices :128 GB SSD
• Installed Size :24 GB
• Performance :Bandwidth: 2.8 bpps, Bandwidth: 7.2 Tbps
• Features :Ethernet Virtual Private Network (EVPN), Port exhaust, 40MB system buffer, Spanning Tree Protocol (STP) support, Virtual PortChannel (vPC) technology, Multiple Spanning Tree Protocol (MSTP) support, Power On Auto Provisioning (POAP), 3 fan trays, Side intake airflow, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Access Control List (ACL) support, MACsec support
• Type :100 Gigabit QSFP28 / 40 Gigabit QSFP28
• Interfaces :1 x management RJ-45, 1 x USB, 36 x 100Gbit/40Gbit LAN QSFP28, 1 x management SFP+, 1 x serial (RS-232)
• Type :Internal power supply
• Power Redundancy :Optional
• Installed Qty :0
• Max Supported Qty :2
• Nominal Voltage :AC 120/230 V
• Frequency Required :50/60 hertz
• Power Consumption Operational :777 watt
• Dimensions & Weight
• Width :17.3 inch
• Depth :24.5 inch
• Height :1.7 inch
• Weight :18.74 lbs

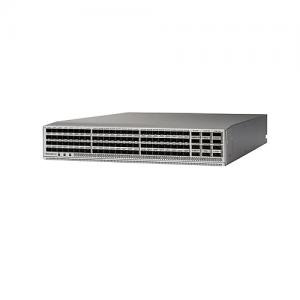

• The Cisco Nexus 93360YC-FX2 Leaf Switch is a 2-Rack-Unit (2RU) Leaf switch that supports 7.2 Tbps of bandwidth and 2.8 bpps across 96 fixed 10/25G SFP+ ports and 12 fixed 40/10G QSFP28 ports. The 96 ports of downlinks support 1/10/25-Gbps. The 12 uplinks ports can be configured as 40- and 100-Gbps ports, offering flexible migration options. The switch is ideal for a non-oversubscribed solution in a compact form factor. The switch has FC-FEC and RS-FEC enabled for 25Gbps support over longer distances.
• Main Features
• FX2
• Switch
• L3
• managed
• 96 x 1/10/25 Gigabit SFP+ + 12 x 40/100 Gigabit QSFP28
• rack-mountable
• Built-in Devices :128 GB SSD
• Installed Size :16 GB
• Capacity :SPAN sessions: 4, Port channels: 512, VLANs supported: 3967, NAT entries: 1023, HSRP groups: 490, Longest prefix match (LPM) routes: 896000, Multicast routes: 32000, ACL entries (ingress): 5000, MST instances: 64, ECMP paths: 64, IP host entries: 896000, ACL entries (egress): 2000, MAC addresses: 256000, Rapid Per-VLAN Spanning Tree Plus instances: 3967
• Form Factor :Rack-mountable
• Ports Qty :96
• Advanced Switching :Layer 3
• Routing Protocol :ECMP, RSVP, BGP, PIM-SM, MSDP, OSPF, EIGRP, RIP, RIP-2, Multiprotocol BGP, HSRP, MPLS
• Manageable :Yes
• Status Indicators :Status
• Features :Layer 3 switching, Open Shortest Path First (OSPF), 3 fans, Port-side exhaust (PSE), Multicast Source Discovery Protocol (MSDP), MPLS support, Virtual Extensible LAN (VXLAN), MACsec support, Source-Specific Multicast (SSM), Access Control List (ACL) support, Virtual PortChannel (vPC) technology, 40MB system buffer, Spanning Tree Protocol (STP) support, Power On Auto Provisioning (POAP), Ethernet Virtual Private Network (EVPN), Multiple Spanning Tree Protocol (MSTP) support
• Interfaces :1 x management SFP+, 12 x 100Gbit/40Gbit LAN QSFP28, 96 x 1/10/25Gbit LAN SFP+, 1 x serial (RS-232), 1 x USB, 1 x management RJ-45
• Ports Type :40/100 Gigabit QSFP28
• Dimensions & Weight
• Width :17.4 inch
• Depth :22.9 inch
• Height :3.4 inch

• The Cisco Nexus 92304QC switch (N9K-C92304QC) is a 2-RU switch with the following ports:
• 56 fixed 40-Gigabit QSFP+ (optical) interface ports supporting 1-, 10-, and 40-Gigabit speeds
• 16 of these ports support breakout cables for connections to 64 1- and 10-Gigabit ports on other devices.
• 8 QSFP28 ports supporting 40- and 100-Gigabit speeds
• 1 console port
• 1 management port
• 2 software-defined ports (labeled as S1-65 and S1-66)
• 1 USB port

• The Cisco Nexus 92304QC switch (N9K-C92304QC) is a 2-RU switch with the following ports:
• 56 fixed 40-Gigabit QSFP+ (optical) interface ports supporting 1-, 10-, and 40-Gigabit speeds
• 16 of these ports support breakout cables for connections to 64 1- and 10-Gigabit ports on other devices.
• 8 QSFP28 ports supporting 40- and 100-Gigabit speeds
• 1 console port
• 1 management port
• 2 software-defined ports (labeled as S1-65 and S1-66)
• 1 USB port

• N9K-C92160YC-X is one of the Cisco Nexus 9200 switches. 92160YC-X Switch is optimized for Cisco NX-OS deployments. It provides 48 1/10/25-
• Gb host ports and up to six hybrid uplink ports that can be configured as 10, 25, 40, or 100-Gb ports. With 3.2 Tbps of switching capacity, the
• 92160YC-X delivers line-rate Layer 2 and 3 features for demanding enterprise, service provider hosting, and cloud computing environments

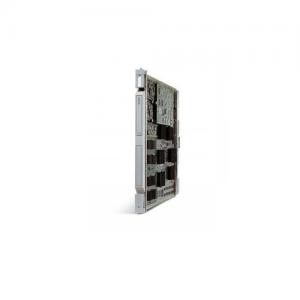

Key Features

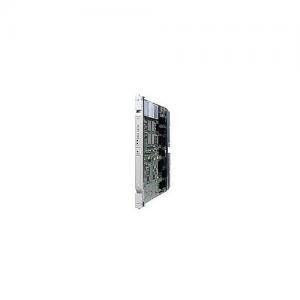

The main features of the Cisco MGX 8950 OC-192c/STM-64 ATM Switch Service Module are listed here.
Full nonblocking, full-duplex line-rate throughput

High reliability with hot-standby 1+1 ATM switch service module card redundancy

Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination

Up to 4 million cell buffers

Up to 16 classes of service (CoS) that can be used to support IP or ATM services

Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),
soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP),
and Multiprotocol Label Switching (MPLS) services

Chassis Compatibility :
Cisco MGX 8950

Software Compatibility :
Cisco MGX Software Release 4.0.15 and above

Protocols :
ATM and SONET/SDH

Port Density :
1 port

Layer 1 (Physical Layer) Feature Summary
User-Network Interface (UNI) 3.0, 3.1, and 4.0 physical layer specifications
Compliance with the following SONET standards:
Bellcore GR-253-CORE
ANSI T1.105
Compliance with the following SDH standards:
ITU-T G.707, G.708, G.709, and G.783
ITU-T G.957 and G.958
Additional Physical Layer Specifications for Ports and Optics

Network Management :
Managed by Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)

Power :
Input power required: -48 VDC
Power consumption: 205W

Physical Dimensions :
H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

Weight :
6.5 lb (2.95 kg)

Applications
High-density broadband ATM
Scaling MPLS services
Convergence of voice and data networks

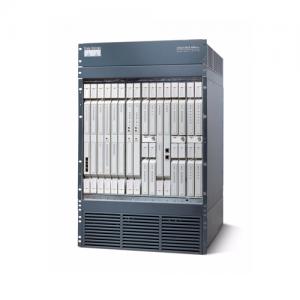

Technical Specifications

The following are some of the key features of the Cisco MGX 8950 Multiservice Switch:
Scalability of up to 180-Gbps fully redundant nonblocking switching within a single chassis

10-Gbps ATM interfaces (OC-192c/STM-64)

Industry-leading broadband density

OC-3c/STM-1, OC-12c/STM-4, and OC-48c/STM-16 trunk aggregation

Industry's highest network availability

Software compatibility
MGX 4.0.15 release and later (depending on the service modules configured)

Service module compatibility
AXSM-16-155-XG, AXSM-8-622-XG, AXSM-4-2488-XG, AXSM-1-9953-XG
AXSM-16-T3E3/B, AXSM-1-2488/B
MGX-RPM-PR-256, MGX-RPM-PR-512, MGX-RPM-XF-512

Control card
PXM45/C Processor Switching Module (only processor function is used)
Redundant slots 7 and 8 reserved for control card

Slots
Control processor slots: 2 fixed double-height slots for primary and secondary
Switching card slots: 2 fixed double-height slots divided into 4 single-height slots for 4 load-sharing XM60 switching cards
Service module slots: 12 double-height slots

Connectivity
T3/E3, OC-3/STM1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64, POS, Ethernet, Fast Ethernet, Gigabit Ethernet

Network management interfaces
RJ-45 Ethernet port for the management interface at the node, and In-band ATM connection to reach remote node for management connectivity,
DB-15 for the visual and audible alarm port, a command-line interface (CLI) for local management,
Simple Network Management Protocol (SNMP) for the network management system interface, Secure File Transfer Protocol (SFTP) for file transfer,
and Secure Shell (SSHv1 and SSHv2) Protocol for remote CLI access

Physical dimensions
(H x W x D): 35 x 19 x 22 inches (88.9 x 48.26 x 55.88 cm)
Rack-mountable in 19- and 23-inch EIA/RETMA and ETSI racks

Power
Typical consumption: 5 kW for maximum configuration system

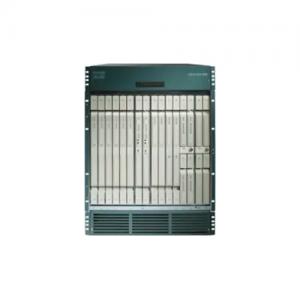

AXSM can be used in the MGX 8850 to provide ATM capability up to OC-48c/STM-16.
High scalability in interface speeds with T3/E3 ports, OC-3c/STM-1, OC-12c/STM-4, and OC-48c/ STM-16 AXSM modules. Each port on the AXSM can be configured for either trunk or access applications.
Industry leading module port densities of 16 T3/E3 ports, 16 OC-3c/STM-1 ports, 4 OC-12c/STM-4 ports, and 1 OC-48c/ STM-16 port that can scale up to 12 OC-48c/STM-16 modules in each MGX 8850 Multiservice Switch. Each OC-48c/STM-16 delivers fully nonblocking, full duplex throughput, in which a connection can occupy the entire line rate.
Support for all ATM service classes, with up to 16 classes of service (CoS). Supports carrier-class implementation of standards-based PNNI, SVC/SVP, SPVC/SPVP, and MPLS services. Large cell buffers (one million cells), which help to maximize "goodput" performance during congestion, reducing the number of retransmits; the buffers are allocated dynamically, depending on connection resource needs, thereby optimizing use of system resources.
High reliability with hot-standby 1:1 AXSM card redundancy, 1:1 and 1+1 line redundancy using APS.

Ports and trunks supported on same AXSM module
User-Network Interface (UNI) Specifications 3.0, 3.1, 4.0

Network Management
Management using Cisco WAN Manager software suite
Based on Simple Network Management Protocol (SNMP)

Physical Specifications
Dimensions: (H x D) 15.83 x 15.65 in.

Electrical Specifications
Input power required: -48 VDC
Power consumption: 95W

Key Features:

The main features of the Cisco MGX 8800/8900 16-Port OC-3c/STM-1 ATM Switch Service Module are listed here.

Full nonblocking, full-duplex line-rate throughput on all 16 ports

High reliability with hot-standby 1+1 16-port ATM switch service module card redundancy

Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination

Y-cable and APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy

Up to 4 million cell buffers

Up to 16 classes of service (CoS) that can be used to support IP or ATM services

Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP), soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

Chassis Compatibility:

Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950

Software Compatibility:

Cisco MGX 8800/8900 SW Release 5.0.20 and above

Protocols :

ATM and SONET/SDH

Port Density :

16 ports

Network Management

 Managed by Cisco WAN Manager software suite

 Based on Simple Network Management Protocol (SNMP)

Power

Input power required: -48 VDC

Power consumption: 114W

Physical Dimensions

H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

Weight

6.5 lb (2.95 kg)

Key Features

64-bit MIPS-based processor operating at 700 MHz

45-Gbps switch fabric and 1.2-Gbps cell-bus (when used with chassis other than the Cisco MGX 8950)

Cisco PXM-45/C used only as processor in Cisco MGX 8950; Cisco MGX-XM-60 provides switch-fabric function in that chassis

Hot swappable

1:1 hot-standby redundancy

User-selectable primary and secondary clock sources with graceful switchover

Internal Stratum-3, external Building Integrated Timing Supply (BITS), or in-band clock sources

In-band or out-of-band management using EIA/TIA-232 or 10BASE-T control ports

Support for narrowband and broadband service modules scaling from DS-0 to OC-48c/STM-16 or DS-3/E3 to OC-192/STM-64 (depending on the chassis used)

Chassis compatibility

Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

Software compatibility

Minimum Cisco MGX software release supporting Cisco PXM-45/C:

Cisco MGX 8850 Software Release 4.0.15

Cisco MGX 8950 Software Release 4.0.15

 Cisco MGX Software Release 5.0.20 (for Cisco MGX 8880 and MGX 8850/B)

Cisco MGX Software Release 5.2.00 (for Cisco MGX 8830/B)

Network Management

 Managed by Cisco WAN Manager Software suite

 Based on Simple Network Management Protocol (SNMP)

Power

Input power required: -48 VDC

Power consumption: 128 W

Physical Dimensions

H x D: 15.75 x 16.5 in. (40.00 x 41.91 cm)

Weight

6.5 lbs

Key Features

The main features of the Cisco 8-Port OC-12/STM-4 Channelized/Unchannelized ATM Switch Service Module are listed here.

Full nonblocking, full-duplex line-rate throughput on all 8 ports when used on the Cisco MGX 8950 chassis

Up to 4 ports with nonblocking, full-duplex line-rate throughput when used on the Cisco MGX 8800 chassis

Individual port channelization down to DS-3 and OC-3c/STM-1

Per-virtual-path and per-virtual-circuit traffic shaping and available bit rate (ABR) with virtual source and virtual destination

APS (1:1 and 1+1) port redundancy, plus APS 1+1 card redundancy

Up to 4 million cell buffers

Up to 16 classes of service (CoS) that can be used to support IP or ATM services

Support for standards-based Private Network-to-Network Interface (PNNI), switched virtual circuit (SVC) and switched virtual path (SVP),

soft permanent virtual connection (SPVC) and soft permanent virtual path (SPVP), and Multiprotocol Label Switching (MPLS) services

Chassis Compatibility

Cisco MGX 8830/B, MGX 8850, MGX 8850/B, MGX 8880, and MGX 8950

Software Compatibility

Cisco MGX 8800/8900 Software Release 5.2.00 and above for Cisco MGX 8830/B, MGX 8850, MGX 8850/B, and MGX 8950

Cisco MGX 8800/8900 Software Release 5.3.00 and above for Cisco MGX 8880

Protocols

ATM and SONET/SDH

Port Density

8 ports (4 ports at full line rate on the Cisco MGX 8800 chassis)

Network Management

Managed by Cisco WAN Manager software suite

Based on Simple Network Management Protocol (SNMP)

Power

Input power required: -48 VDC

 Power consumption: 134W

Physical Dimensions

H x D: 15.83 x 15.65 in. (40.20 x 39.75 cm)

Weight

6.5 lb (2.95 kg)

Key feattures :

The Cisco MGX-XM60 Switching Module has the following primary features:

Single-height card

60-Gbps nonblocking crosspoint switch fabric

Dynamic sharing of capacity across multiple Cisco XM-60s, allowing for N + 1 redundancy

Four installed in each Cisco MGX 8950 for 240-Gbps total capacity, 180-Gbps redundant capacity

Hot card insertion/removal

Complete separation from control processor, allowing data forwarding in the event of control card failure

Chassis compatibility

MGX 8950

Software compatibility

MGX S/W Releases supporting MGX-XM60:

MGX Rls 4.0.15 and above

Network management

Managed by Cisco WAN Manager Software suite

Based on Simple Network Management Protocol (SNMP)

Power

Input power required: -48 VDC

Power consumption: 61 W

Physical dimensions

H x D: 7.25 x 16.5 in. (18.41 x 41.91 cm)

Weight

3.5 lb
