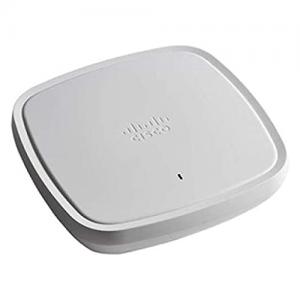

• Four radios: 2.4 GHz (4x4), 5 GHz (8x8 and 4x4), Cisco RF ASIC, and BLE/IoT
• Cisco Flexible Radio Assignment and Cisco CleanAir Technology
• Internal and external antenna
• WiFi 6 certified
• Software: Catalyst 9130 AXI: Cisco Unified Wireless Network Software Release 8.10.x or later
• Cisco IOS XE Software Release 16.12.1 with AP Device Pack, or later
• Catalyst 9130AXE: Cisco Unified Wireless Network Software Release 8.10MR1 or later
• Cisco IOS XE Software Release 17.1.1 s or later
• Supported wireless LAN controllers: Cisco Catalyst 9800 Series Wireless Controllers
• Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
• 802.11n version 2.0 (and related) capabilities
• 4x4 MIMO with four spatial streams
• Maximal Ratio Combining (MRC)
• 802.11n and 802.11a/g
• 20- and 40 MHz channels
• PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic Shift Diversity (CSD) support
• 802.11ac
• 8x8 downlink MU-MIMO with eight spatial streams
• MRC
• 802.11ac beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• WPA3 support
• 802.11ax
• 8x8 uplink/downlink MU-MIMO with eight spatial streams
• Uplink/downlink OFDMA
• TWT
• BSS coloring
• MRC
• 802.11ax beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• WPA3 support
• System memory: 2048 MB DRAM, 1024 MB flash
• Interfaces
• 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3az
• Management console port (RJ-45)
• USB 2.0 at 4.5W (enabled via future software)
• Dimensions (W x L x H)
• Access point (without mounting brackets):
• C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm)
• C9130AXE: 9.17 x 9.17 x 1.58 in. (23.3 x 23.3 x 4.0 cm)
• Weight: Cisco Catalyst 9130AXI, 3.2 lb. (1.45 kg)
• Cisco Catalyst 9130AXE, 3.78 lb. (1.71 kg)
• Warranty: Limited lifetime hardware warranty

• Four radios: 2.4 GHz (4x4), 5 GHz (4x4), Cisco RF ASIC and BLE/IoT
• Cisco Flexible Radio Assignment and Cisco CleanAir Technology
• Internal and external antenna
• Software
• Cisco Unified Wireless Network Software Release 8.9.x or later
• Cisco IOS XE Software Release 16.11 with AP Device Pack, or later
• Supported wireless LAN controllers
• Cisco Catalyst 9800 Series Wireless Controllers
• Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
• 802.11n version 2.0 (and related) capabilities
• 4x4 MIMO with four spatial streams
• Maximal Ratio Combining (MRC)
• 802.11n and 802.11a/g beamforming
• 20- and 40-MHz channels
• PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic Shift Diversity (CSD) support
• 802.11ac
• 4x4 downlink MU-MIMO with four spatial streams
• MRC
• 802.11ac beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• 802.11ax
• 4x4 downlink MU-MIMO with four spatial streams
• Uplink/downlink OFDMA
• TWT
• BSS coloring
• MRC
• 802.11ax beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• Interfaces: 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45)IEEE 802.3bz
• Management console port (RJ-45), USB 2.0 3.75W (enabled via future software)
• Indicators: Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
• Dimensions (W x L x H)
• Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7 (21.6 x 21.6 x 4.3 cm), C9120E and C9120P: 8.5 x 8.05x 2.0 (21.6 x 21.6 x 5.1 cm)
• Weight: Cisco Catalyst 9120I, 2.87 lbs (1.3 kg)
• Cisco Catalyst 9120E/P, 3 lbs (1.36 kg)
• System memory: 2048 MB DRAM, 1024 MB flash
• Warranty: Limited lifetime hardware warranty

• Three radios: 2.4GHz (4x4), 5GHz (8x8), and BLE, Supports OFDMA and MU-MIMO, Internal antenna
• Software: Cisco Unified Wireless Network Software Release 8.9 or later
• Cisco IOS XE Software Release 16.11 or later
• Supported wireless LAN controllers: Cisco Catalyst 9800 Series Wireless Controllers
• Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller
• 802.11n version 2.0 (and related) capabilities
• 8x8 MIMO with four spatial streams for 5 GHz band
• 4x4 MIMO with four spatial streams for 2.4 GHz band
• Maximal Ratio Combining (MRC)
• 20- and 40-MHz channels
• PHY data rates up to 600 Mbps (40 MHz with 5 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• Cyclic Shift Diversity (CSD) support
• 802.11ac
• 8x8 downlink MU-MIMO with eight spatial streams
• MRC
• 802.11ac beamforming
• 20-, 40-, 80, and 160 MHz channels
• PHY data rates up to 3.5 Gbps at 5 GHz
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• CSD support
• 160 MHz support only on 4 spatial stream
• 802.11ax
• 8x8 MIMO with eight spatial streams for 5-GHz band
• 4x4 MIMO with four spatial streams for 2.4-GHz band
• Downlink OFDMA
• TWT
• MRC
• 802.11ax beamforming
• 20-, 40-, 80, and 160 MHz channels
• PHY data rates up to 5 Gbps at 5 GHz
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• CSD support
• Integrated antenna: 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
• 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
• Interfaces: 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45)IEEE 802.3bz
• Management console port (RJ-45)
• USB 2.0 with up to 4.5W (enabled via future software)
• Indicators: Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
• Dimensions (W x L x H)
• Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm)
• Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
• Weight: 3.02 lb (1.4 kg)
• System memory: 2048 MB DRAM, 1024 MB flash
• Warranty: Limited lifetime hardware warranty

• Three radios: 2.4GHz (4x4), 5GHz (4x4), and BLE, Supports OFDMA and MU-MIMO, Internal and external antenna
• Software: Cisco Unified Wireless Network Software Release 8.9 or later
• Cisco IOS XE Software Release 16.11 or later
• Supported wireless LAN controllers: Cisco Catalyst 9800 Series Wireless Controllers
• Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller
• 802.11n version 2.0 (and related) capabilities
• 4x4 MIMO with four spatial streams
• Maximal Ratio Combining (MRC)
• 802.11n and 802.11a/g beamforming
• 20- and 40-MHz channels
• PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 Dynamic Frequency Selection (DFS)
• Cyclic Shift Diversity (CSD) support
• 802.11ac
• 4x4 downlink MU-MIMO with four spatial streams
• MRC
• 802.11ac beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• 802.11ax
• 4x4 downlink MU-MIMO with four spatial streams
• Uplink/downlink OFDMA
• TWT
• BSS coloring
• MRC
• 802.11ax beamforming
• 20-, 40-, 80-, and 160-MHz channels
• PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)
• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
• 802.11 DFS
• CSD support
• Integrated antenna: 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth
• 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth
• External antenna (sold separately)
• Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
• Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios
• Interfaces: 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
• Management console port (RJ-45), USB 2.0 (enabled via future software)
• Indicators: Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
• Dimensions (W x L x H)
• Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm)
• Weight: Cisco Catalyst 9115AXI, 1.98 lb (0.9 kg)
• Cisco Catalyst 9115AXE, 2.43 lb (1.1 kg)
• System memory: 2048 MB DRAM, 1024 MB flash
• Warranty: Limited lifetime hardware warranty

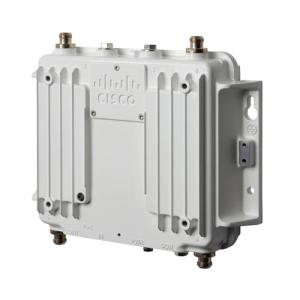

Designed for Class I Division 2 hazardous locations
Intelligence with intent-based networking to the IoT Edge and IOx support
Partner IoT modules for WirelessHART  ISA100
Cisco DNA Assurance for network management
802.11ac Wave 1 and 2 capabilities

 2x2 MIMO with two spatial streams
 Multi- and single-user MIMO
 Maximal-Ratio Combining (MRC)
  802.11ac beamforming (transmit beamforming)
  20- 40- and 80-MHz channels
  PHY data rates up to 867 Mbps (80-MHz bandwidth in 5 GHz)
  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  802.11 Dynamic Frequency Selection (DFS)
  Cyclic Shift Diversity (CSD) support


802.11n Version 2.0 (and related) capabilities
  2x2 MIMO with two spatial streams
  Maximal-Ratio Combining (MRC)
  20- and 40-MHz channels
  PHY data rates up to 300 Mbps (40-MHz bandwidth in 5 GHz)
  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)
  802.11 Dynamic Frequency Selection (DFS)
  Cyclic Shift Diversity (CSD) support


Data rates supported
2.4-GHz radio:
802.11b: 1  2  5.5  11 Mbps
802.11g: 6  9  12  18  24  36  48  54 Mbps
802.11n data rates:

Interfaces
 x1 10/100/1000BASE-T autosensing PoE+ In (802.3at)UPOE in
  x2 10/100/1000BASE-T autosensing PoE Out (802.3af) PoE+ out (802.3at)
  x1 fiber SFP (fiber or electrical)
  Management console port (RJ-45)
  USB3.0 port
  Multicolor system LED  port LED
  DC power input (IW-6300H-DC-X-K9  IW-6300H-DCW-X-K9)
  AC power input (IW-6300H-AC-X-K9)
  Reset button

Uplink options
Ethernet  SFP  and wireless mesh

Dimensions (W x L x H)
IW-6300H-DC-X-K9: 9.7" x 11" x 3.8"
IW-6300H-DCW-X-K9: 9.7" x 11" x 5.6"
IW-6300H-AC-X-K9: 9.7" x 11" x 5.6"

Weight
13.3 lbs (IW-6300H-AC-X-K9), 9.8 lbs (IW-6300H-DC-X-K9),
12.7 lbs (IW-6300H-DCW-X-K9)

Warranty
1 year

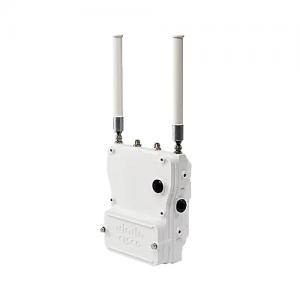

IW 6300 Series
  IW-6300H-DC-X-K9: Dual-band 802.11a/g/n/ac  Wave 2  external antennas  44-57VDC/POE+/UPOE power input
  IW-6300H-DCW-X-K9: Dual-band 802.11a/g/n/ac  Wave 2  external antennas  10.8-36VDC/POE+/UPOE power input
  IW-6300H-AC-X-K9: Dual-band 802.11a/g/n/ac  Wave 2  external antennas  110-220VAC/POE+/UPOE power input

Embed resilient Cisco WiFi into your hardware.

Extend intent-based networking to your solutions .

IOx support for intelligence at the edge.

Cisco DNA Assurance for worry-free network management.

Radio type

2.4 GHz: 802.11b/g/n  2x2 MIMO  2 spatial streams

5 GHz: 802.11a/n/ac  2x2 MIMO  2 spatial streams

802.11ac Wave 2 capabilities

 2x2 MIMO with two spatial streams

  Multi- and single-user MIMO

  Maximal-Ratio Combining (MRC)

  802.11ac beamforming (transmit beamforming)

  20- 40- and 80-MHz channels

  PHY data rates up to 867 Mbps (80-MHz bandwidth in 5 GHz)

  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

  802.11 Dynamic Frequency Selection (DFS)

  Cyclic Shift Diversity (CSD) support

802.11n Version 2.0 (and related) capabilities

  2x2 MIMO with two spatial streams

  Maximal-Ratio Combining (MRC)

  20- and 40-MHz channels

  PHY data rates up to 300 Mbps (40-MHz bandwidth in 5 GHz)

  Packet aggregation: A-MPDU (Tx/Rx) and A-MSDU (Tx/Rx)

  802.11 Dynamic Frequency Selection (DFS)

 Cyclic Shift Diversity (CSD) support

Data rates supported

2.4-GHz radio:

802.11b: 1  2  5.5  11 Mbps

802.11g: 6  9  12  18  24  36  48  54 Mbps

802.11n data rates:

Interfaces

 x1 10/100/1000BASE-T auto-sensing PoE+ in (802.3at)Cisco Universal Power over Ethernet (UPOE) in

  x2 10/100/1000BASE-T auto-sensing PoE out (802.3af) PoE+ out (802.3at)

  x1 fiber SFP (fiber or electrical)

  Management console port (RJ-45)

  USB 3.0 port

  Multicolor system LED  port LED

  DC power input

  Reset button

Uplink options

Ethernet  SFP  and wireless mesh

Antennas :Dual band

PoE output : 35.3 W total

Maximum 30W per PSE port

USB interface

USB 2.0 / USB 3.0 supported

Dimensions (H x W x L)

8.5 in. x 7.55 in. x 1.9 in.

Weight

3.1 lbs.

Warranty

1 year

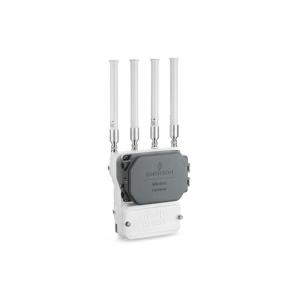

Industrial  outdoor 802.11ac wireless.

Designed and certified for extreme environments.

Rail - rolling stock  shock and vibration certified.

Chipset with best-in-class RF architecture.

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:

8.0.120.0 or later for the Cisco IW3700 Series Access Point

Cisco IOS Software Release

 15.3(3)JA5 or later for the Cisco IW3700 Series Access Point

802.11ac Wave 1 capabilities

  4 x 4 MIMO with 3 spatial streams

  Maximal-Ratio Combining (MRC)

  802.11ac beamforming

  20- 40- and 80-MHz channels

  PHY data rates up to 1.3 Gbps (80 MHz with 5 GHz)

  Packet aggregation: A-MPDU (Tx/Rx) A-MSDU (Tx/Rx)

  802.11 Dynamic Frequency Selection (DFS)

  Cyclic Shift Diversity (CSD) support

802.11n version 2.0 (and related) capabilities

4 x 4 MIMO with 3 spatial streams

  Maximal-Ratio Combining (MRC)

 802.11n and 802.11a/g beamforming

  20- and 40-MHz channels

 PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

 Packet aggregation: A-MPDU (Tx/Rx) A-MSDU (Tx/Rx)

 802.11 Dynamic Frequency Selection (DFS)

 Cyclic Shift Diversity (CSD) support

Data rates supported

802.11a: 6  9  12  18  24  36  48  and 54 Mbps

802.11g: 1  2  5.5  6  9  11  12  18  24  36  48  and 54 Mbps

Interfaces

 10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2) PoE In (802.3af) PoE+ In (802.3at)

 10/100/1000BASE-T autosensing (M12 8P female connector with X-coding per IEC 61076-2) PoE Out (802.3af)

 Management console port (serial with RJ-45 connector)

Indicators

 Status LED indicates boot loader status  association status  operating status  boot loader warnings  boot loader errors

System memory

 512 MB DRAM

 64 MB flash

Dimensions (W x L x H)

 Access point (not including connectors): 11.3 x 8.0 x 2.3 in (28.7 x 20.3 x 5.9 cm)

 Volume: 148 cubic inches (2.4 liters)

Weight

  6.7 lb (3.0 kg)

Warranty

5-year limited hardware warranty

High availability and seamless software updates  enabled by hot patching  keep your clients and services always on in planned and unplanned events.

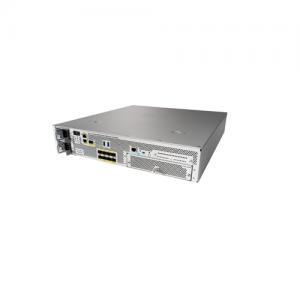

Secure air  devices  and users with the Cisco Catalyst 9800-80. Wireless infrastructure becomes the strongest first line of defense with Cisco Encrypted Traffic Analytics (ETA) and Software-Defined Access (SD-Access).
The controller comes with built-in security: secure boot  runtime defenses  image signing  integrity verification  and hardware authenticity.

Built on a modular operating system  the 9800-80 features open and programmable APIs that enable automation of day-0 to day-N network operations.
Model-driven streaming telemetry provides deep insights into the health of your network and clients.

Maximum number of access points : Up to 6000
Maximum number of clients : 64 000
Maximum throughput : Up to 80 Gbps
Maximum WLANs : 4096
Maximum VLANs : 4096
Max site tags : 6000
Max Flex APs per site : 100
Max policy tags : 6000
Max RF tags : 6000
Max RF profiles : 12000
Max policy profiles : 1000
Max flex profiles : 6000
Fixed uplinks : 8x 10 GE or 6x 10 GE + 2x 1 GE SFP+/SFP
Modular uplinks (optional)

The supported uplink modules are
 C9800-18X1GE(=)
 C9800-10X10GE(=)
 C9800-1X40GE(=)
 C9800-2X40GE(=)
 C9800-1X100GE(=)
The uplink modules are hot-swappable.
Supports 10 GE  40 GE  and 100 GE QSFP transceivers
Redundant power supply : AC or DC power supply
Maximum power consumption with modules 600W
Deployment modes : Centralized  Cisco FlexConnect®  and Fabric Wireless (SD-Access)
Form factor : 2RU
License : Smart License enabled
Operating system : Cisco IOS XE
Management : Cisco DNA Center  Cisco Prime Infrastructure  integrated WebUI  and third party (open standards APIs)
Interoperability : AireOS-based controllers
Policy engine : Cisco Identity Services Engine (ISE)
Location platform : Cisco Connected Mobile Experiences (CMX)/Cisco DNA Spaces*
Access points : Aironet 802.11ac Wave 1 and Wave 2 access points  Catalyst 9100 802.11ax access points
Width : 17.3 inches (43.94 cm)
Depth : 20.5 inches (52.07 cm)
Height : 3.47 inches (8.81 cm)
Weight : 31.5 lb (14.29 kg)
Hard Disk Drives (HDD) :   SATA solid-state drive (SSD)
 240 GB of memory

High availability and seamless software updates  enabled by hot patching  keep your clients and services always on in planned and unplanned events.

Secure air  devices  and users with the Cisco Catalyst 9800-80. Wireless infrastructure becomes the strongest first line of defense with Cisco Encrypted Traffic Analytics (ETA) and Software-Defined Access (SD-Access).
The controller comes with built-in security: secure boot  runtime defenses  image signing  integrity verification  and hardware authenticity.

Built on a modular operating system  the 9800-80 features open and programmable APIs that enable automation of day-0 to day-N network operations.
Model-driven streaming telemetry provides deep insights into the health of your network and clients.

Maximum number of access points : Up to 6000
Maximum number of clients : 64 000
Maximum throughput : Up to 80 Gbps
Maximum WLANs : 4096
Maximum VLANs : 4096
Max site tags : 6000
Max Flex APs per site : 100
Max policy tags : 6000
Max RF tags : 6000
Max RF profiles : 12000
Max policy profiles : 1000
Max flex profiles : 6000
Fixed uplinks : 8x 10 GE or 6x 10 GE + 2x 1 GE SFP+/SFP
Modular uplinks (optional)

The supported uplink modules are
 C9800-18X1GE(=)
 C9800-10X10GE(=)
 C9800-1X40GE(=)
 C9800-2X40GE(=)
 C9800-1X100GE(=)
The uplink modules are hot-swappable.
Supports 10 GE  40 GE  and 100 GE QSFP transceivers
Redundant power supply : AC or DC power supply
Maximum power consumption with modules 600W
Deployment modes : Centralized  Cisco FlexConnect®  and Fabric Wireless (SD-Access)
Form factor : 2RU
License : Smart License enabled
Operating system : Cisco IOS XE
Management : Cisco DNA Center  Cisco Prime Infrastructure  integrated WebUI  and third party (open standards APIs)
Interoperability : AireOS-based controllers
Policy engine : Cisco Identity Services Engine (ISE)
Location platform : Cisco Connected Mobile Experiences (CMX)/Cisco DNA Spaces*
Access points : Aironet 802.11ac Wave 1 and Wave 2 access points  Catalyst 9100 802.11ax access points
Width : 17.3 inches (43.94 cm)
Depth : 20.5 inches (52.07 cm)
Height : 3.47 inches (8.81 cm)
Weight : 31.5 lb (14.29 kg)
Hard Disk Drives (HDD) :   SATA solid-state drive (SSD)
 240 GB of memory

High availability and seamless software updates  enabled by hot patching  keep your clients and services always on in planned and unplanned events.

Secure air  devices  and users with the Cisco Catalyst 9800-80. Wireless infrastructure becomes the strongest first line of defense with Cisco Encrypted Traffic Analytics (ETA) and Software-Defined Access (SD-Access).
The controller comes with built-in security: secure boot  runtime defenses  image signing  integrity verification  and hardware authenticity.

Built on a modular operating system  the 9800-80 features open and programmable APIs that enable automation of day-0 to day-N network operations.
Model-driven streaming telemetry provides deep insights into the health of your network and clients.

Maximum number of access points : Up to 6000
Maximum number of clients : 64 000
Maximum throughput : Up to 80 Gbps
Maximum WLANs : 4096
Maximum VLANs : 4096
Max site tags : 6000
Max Flex APs per site : 100
Max policy tags : 6000
Max RF tags : 6000
Max RF profiles : 12000
Max policy profiles : 1000
Max flex profiles : 6000
Fixed uplinks : 8x 10 GE or 6x 10 GE + 2x 1 GE SFP+/SFP
Modular uplinks (optional)

The supported uplink modules are
 C9800-18X1GE(=)
 C9800-10X10GE(=)
 C9800-1X40GE(=)
 C9800-2X40GE(=)
 C9800-1X100GE(=)
The uplink modules are hot-swappable.
Supports 10 GE  40 GE  and 100 GE QSFP transceivers
Redundant power supply : AC or DC power supply
Maximum power consumption with modules 600W
Deployment modes : Centralized  Cisco FlexConnect®  and Fabric Wireless (SD-Access)
Form factor : 2RU
License : Smart License enabled
Operating system : Cisco IOS XE
Management : Cisco DNA Center  Cisco Prime Infrastructure  integrated WebUI  and third party (open standards APIs)
Interoperability : AireOS-based controllers
Policy engine : Cisco Identity Services Engine (ISE)
Location platform : Cisco Connected Mobile Experiences (CMX)/Cisco DNA Spaces*
Access points : Aironet 802.11ac Wave 1 and Wave 2 access points  Catalyst 9100 802.11ax access points
Width : 17.3 inches (43.94 cm)
Depth : 20.5 inches (52.07 cm)
Height : 3.47 inches (8.81 cm)
Weight : 31.5 lb (14.29 kg)
Hard Disk Drives (HDD) :   SATA solid-state drive (SSD)
 240 GB of memory
